EH36 Series Oscillator
Quartz Crystal Clock Oscillators XO (SPXO) LVCMOS (CMOS) 3.3Vdc 4 Pad 3.2mm x 5.0mm Ceramic Surface Mount (SMD)
2011/65 +
2015/863
168 SVHC
Revision F 02/27/2015
Electrical Specifications
Nominal Frequency
1.000MHz to 200.000MHz
Some frequencies within this range may not be available.
Frequency Tolerance/Stability
(Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency
Stability over the Operating Temperature Range, Supply Voltage
Change, Output Load Change, First Year Aging at 25°C, Shock, and
Vibration)
±100ppm Maximum
±50ppm Maximum
±25ppm Maximum
±20ppm Maximum
±5ppm/year Maximum
0°C to +70°C
-40°C to +85°C
3.3V
DC
±10%
No Load
35mA Maximum
I
OH
=-8mA
2.7V
DC
Minimum
I
OL
=+8mA
0.5V
DC
Maximum
Measured at 50% of Waveform
50 ±10(%)
50 ±5(%)
Measured at 20% to 80% of Waveform
6nSec Maximum over Nominal Frequency of 1MHz to 70MHz
4nSec Maximum over Nominal Frequency of 70.000001MHz to 200MHz
30pF Maximum over Nominal Frequency of 1MHz to 70MHz
15pF Maximum over Nominal Frequency of 70.000001MHz to 200MHz
CMOS
Tri-State (High Impedance)
70% of V
DD
Minimum or No Connect to Enable Output
20% of V
DD
Maximum to Disable Output
±250pSec Maximum, ±100pSec Typical
±50pSec Maximum, ±40pSec Typical
10mSec Maximum
-55°C to +125°C
Aging at 25°C
Operating Temperature Range
Supply Voltage
Input Current
Output Voltage Logic High (V
OH
)
Output Voltage Logic Low (V
OL
)
Duty Cycle
Rise Time/Fall Time
Load Drive Capability
Output Logic Type
Pin 1 Connection
Tri-State Input Voltage (Vih and Vil)
Absolute Clock Jitter
One Sigma Clock Period Jitter
Start Up Time
Storage Temperature Range
1 of 10
28-Jan-2016 1:06 PM
Ecliptek | EH36 Series Oscillator
http://www.ecliptek.com/oscillators/EH36/

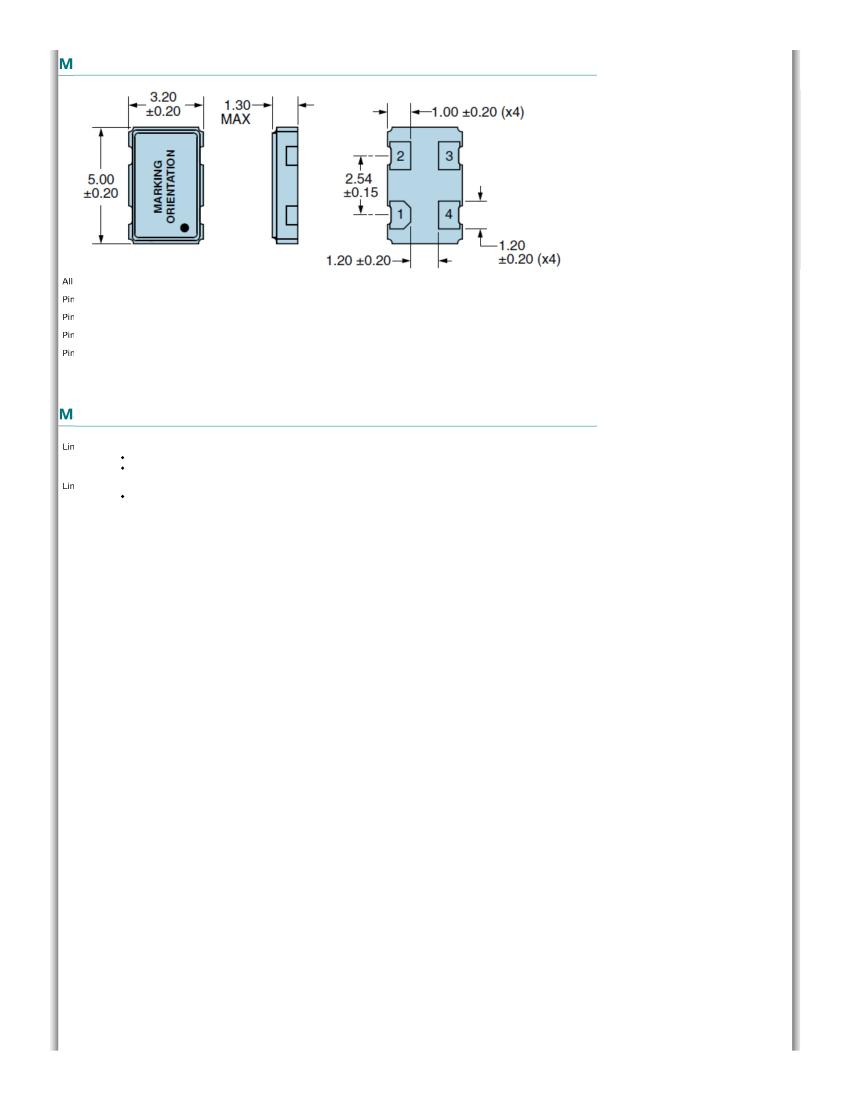

Mechanical Dimensions
All Dimensions in Millimeters
Pin 1: Tri-State
Pin 2: Case Ground
Pin 3: Output
Pin 4: Supply Voltage
Marking Specifications
Line 1:
E XXXXXX
E = Ecliptek Designator
XXXXXX = Nominal Frequency in MHz (5 Digits + Decimal)
XXXXX
XXXXX = Ecliptek Manufacturing Identifier
Line 2:
3 of 10
28-Jan-2016 1:06 PM
Ecliptek | EH36 Series Oscillator
http://www.ecliptek.com/oscillators/EH36/
Environmental and Mechanical Specifications
Fine Leak Test
Gross Leak Test
Mechanical Shock
Resistance to Soldering Heat
Resistance to Solvents
Solderability
Temperature Cycling
Vibration
Thermal Resistance (θ
JA
)
Thermal Resistance (θ
JC
)
MIL-STD-883, Method 1014, Condition A
MIL-STD-883, Method 1014, Condition C
MIL-STD-202, Method 213, Condition C
MIL-STD-202, Method 210
MIL-STD-202, Method 215
MIL-STD-883, Method 2003
MIL-STD-883, Method 1010
MIL-STD-883, Method 2007, Condition A
40°C/W (degrees Celsius per Watt)
14°C/W (degrees Celsius per Watt)
4 of 10
28-Jan-2016 1:06 PM
