5-104078-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-104078-7

5-104078-7: Description80 SYSTEM 50 RCPT ASSY DRST SN; CategoryThe connector The connector; File Size266KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-104078-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-104078-7	-	-	View	Buy Now

5-104078-7 Overview

80 SYSTEM 50 RCPT ASSY DRST SN

5-104078-7 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	TE Connectivity
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	21 weeks
Is Samacsys	N
Other features	AMPMODU
body width	0.198 inch
subject depth	0.35 inch
body length	2.044 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.39 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3.6 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	80
UL Flammability Code	94V-0
Evacuation force-minimum value	.2224 N
Base Number Matches	1

Preview

Download Datasheet

View All

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

FINISH:

CONTACTS, 0.76µm MIN GOLD IN LOCALIZED CONTACT MATING AREA,

3.81µm TIN-LEAD IN LOCALIZED SOLDER AREA, BOTH ARE OVER

1.27µm MIN NICKEL

0.89 0.03

PAD TYP

1.27 0.05

TYP

0.56 0.05

PTH TYP

2.54 0.05

TYP

REDRWN/REVISED PER ECO 17-001757

21APR2017

RLK

2. NOTE DELETED

3.MATERIAL:

HOUSING: UL94 V-O RATED LCP, COLOR BLACK

CONTACT: COPPER ALLOY

THE NOTED DIMENSIONS APPLY AT THE INTERSECTION OF THE POST AND HOUSING.

1.14 0.05

PAD TYP

FULL R

PAD TYP

B SPACES @(1.27) = DIM_C # 0.05

TOLERANCE NON-CUMULATIVE

SCALE

RECOMMENDED PC BOARD LAYOUT

SCALE 5:1

7.62

10.01

44.30

46.84

11.28

22.71

16.36

64.62

51.92

39.22

32.87

20.17

26.52

13.82

10.01

44.30

46.84

11.28

22.71

16.36

64.62

51.92

39.22

20.17

26.52

13.82

7.47

32.87

7.47

100

8-104078-4

8-104078-3

8-104078-2

8-104078-1

8-104078-0

7-104078-9

7-104078-8

7-104078-7

7-104078-6

7-104078-5

7-104078-4

7-104078-3

7-104078-2

7-104078-1

6-104078-4

6-104078-3

6-104078-2

6-104078-1

6-104078-0

5-104078-9

5-104078-8

5-104078-7

5-104078-6

5-104078-5

5-104078-4

5-104078-3

5-104078-2

5-104078-1

5. NOTE DELETED

6. NOTE DELETED

FINISH:

CONTACTS, 0.76µm MIN GOLD IN LOCALIZED CONTACT MATING AREA,

3.81µm TIN IN LOCALIZED SOLDER AREA, BOTH ARE OVER

1.27µm MIN NICKEL

FINISH:

CONTACTS, 0.03µm MIN GOLD IN LOCALIZED CONTACT MATING AREA,

3.81µm MIN TIN-LEAD IN LOCALIZED SOLDER AREA, BOTH ARE OVER

1.27µm MIN NICKEL

FINISH:

CONTACTS, 0.03µm MIN GOLD IN LOCALIZED CONTACT MATING AREA,

3.81µm MATTE TIN IN LOCALIZED SOLDER AREA, BOTH ARE OVER

1.27µm MIN NICKEL

4:1

7.62

10.01

46.84

11.28

16.36

51.92

39.22

20.17

26.52

7.47

32.87

64.62

22.71

44.30

3-104078-4

41.91

44.45

20.32

13.97

8.89

44.45

20.32

8.89

41.91

3-104078-3

3-104078-2

3-104078-1

3-104078-0

2-104078-9

2-104078-7

2-104078-6

2-104078-4

2-104078-3

2-104078-2

2-104078-1

1-104078-3

1-104078-1

1-104078-0

104078-9

104078-8

104078-6

104078-5

104078-4

104078-2

104078-1

104078-3

104078-7

1-104078-2

1-104078-4

2-104078-5

2-104078-8

10. NOTE DELETED

11. NOTE DELETED

12. NOTE DELETED

62.23

49.53

36.83

30.48

17.78

24.13

11.43

41.91

44.45

8.89

7.62

5.08

13.97

62.23

36.83

17.78

24.13

7.62

5.08

30.48

49.53

100

0.20 0.03

(1.19)

0.43 MAX

X | Y s

TYP

X | Z s

TYP

1.26

2.54 0.25

TYP

11.43

41.91

8.89

13.82

10.01

46.84

22.71

16.36

64.62

51.92

32.87

20.17

26.52

7.47

39.22

11.28

44.30

44.45

20.32

8.89 0.08

20.32

13.97

62.23

49.53

36.83

17.78

24.13

11.43

5.08

30.48

13.97

62.23

49.53

30.48

17.78

24.13

5.08

36.83

100

DIM_E

(1.27 )

5.03 0.05

FINISH

DIM_C

SPACES

DIM_E

(2.54 )

1.27

THIS DRAWING IS A CONTROLLED DOCUMENT.

POSN

11.43

13.82

PART

NUMBER

DWN

FINISH

DIM_C

SPACES

DIM_E

1.27

TYP

1.27

0.635

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

TYP

BASIC DIMENSIONS FOR

ODD NO OF SPACES (SEE TABLE)

MATERIAL

BASIC DIMENSIONS FOR

EVEN NO OF SPACES (SEE TABLE)

1471-9 (3/13)

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.3

0.13

19APR2017

RL KOLLER

CHK

21APR2017

J.OLSON

APVD

21APR2017

J.OLSON

PRODUCT SPEC

APPLICATION SPEC

POSN

PART

NUMBER

TE Connectivity

NAME

108-1093

1 $

114-25031

WEIGHT

CUSTOMER DRAWING

SIZE

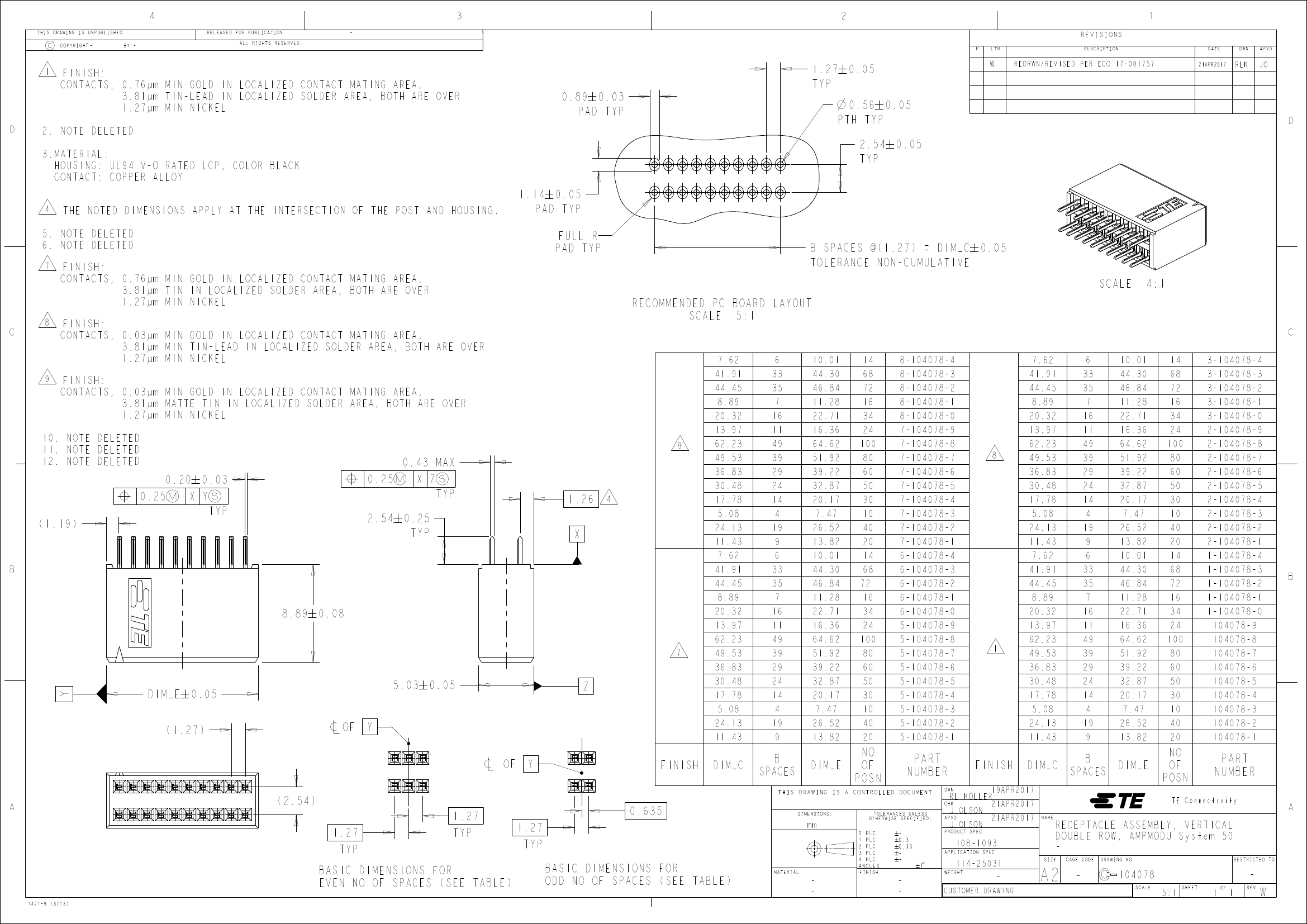

RECEPTACLE ASSEMBLY, VERTICAL

DOUBLE ROW, AMPMODU System 50

CAGE CODE

DRAWING NO

RESTRICTED TO

104078

SCALE

5:1

SHEET

REV
