1410188-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 1410188-3

Preview

1410188-3: DescriptionMULTIGIG RT T2 7RW DC DF F-RGT; CategoryThe connector; File Size161KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1410188-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1410188-3	-	-	View	Buy Now

1410188-3 Overview

MULTIGIG RT T2 7RW DC DF F-RGT

1410188-3 Parametric

Parameter Name	Attribute value
Connector System	Board to Board
Line spacing	.053 mm [ 1.35 in ]
Connector type	plug
with hood	All hooded
Connectors and terminals terminate to	A printed circuit board
Number of Positions	112
Rows	7
Number of columns	16
Board-to-board configuration	right angle
PCB mounting direction	right angle
boot position	right
Card slot center line	20.3 mm [ .8 in ]
Contact Current Rating (Max) (A)	1
joint alignment	with
Joint alignment type	polarization
Connector mounting type	board mounting
Centerline (Pitch)	1.8 mm [ .071 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
Circuit Application	Power and Signal

Preview

Download Datasheet

View All

8

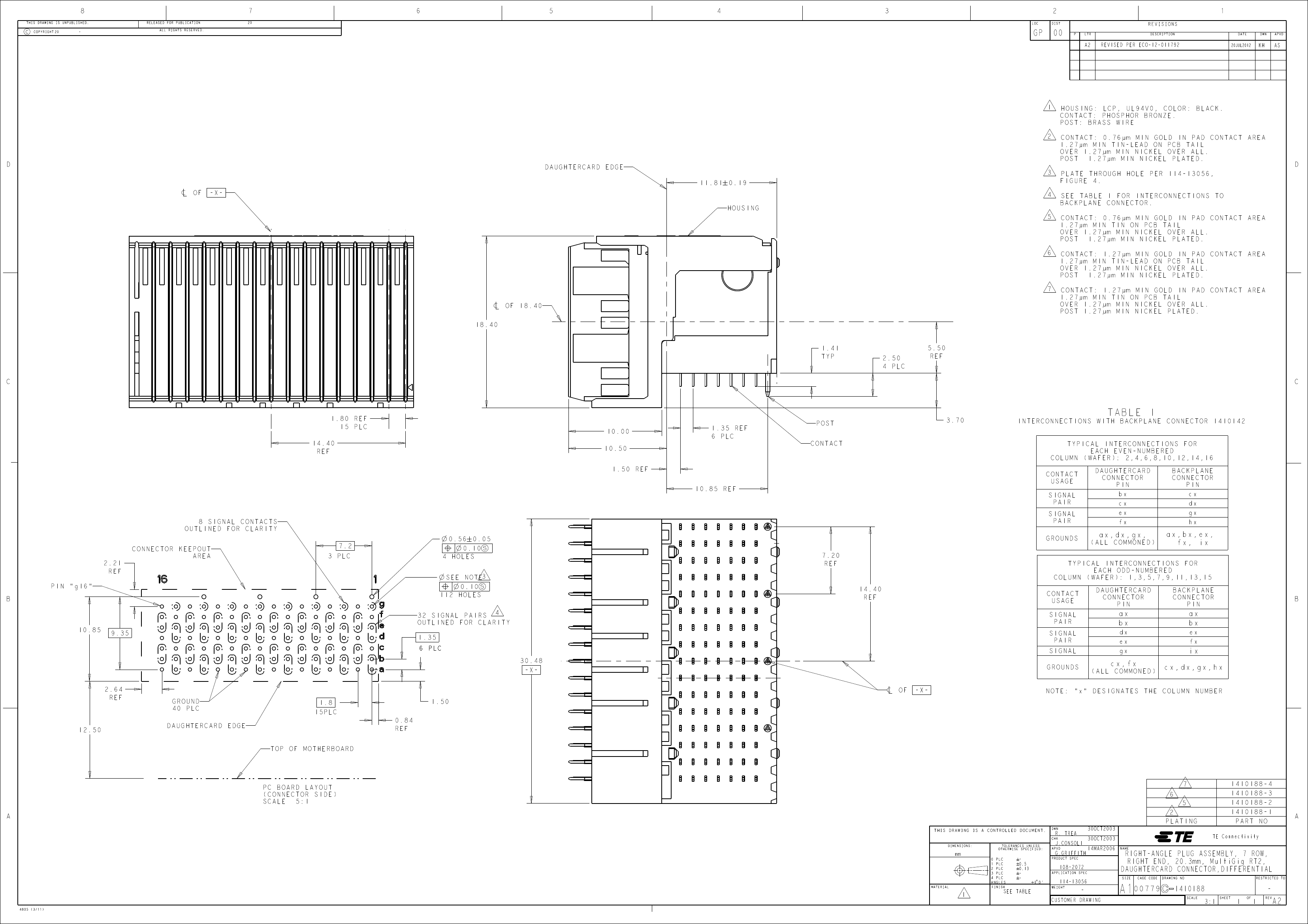

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

7

6

5

4

3

LOC

2

DIST

P

LTR

1

REVISIONS

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

D

DAUGHTERCARD EDGE

11.81

0.19

HOUSING

D

OF

-X-

OF 18.40

18.40

1.41

TYP

5.50

REF

2.50

4 PLC

C

1.80 REF

15 PLC

14.40

REF

10.00

10.50

1.50

REF

1.35 REF

6 PLC

POST

CONTACT

3.70

INTERCONNECTIONS WITH BACKPLANE CONNECTOR 1410142

TYPICAL INTERCONNECTIONS FOR

EACH EVEN-NUMBERED

COLUMN (WAFER): 2,4,6,8,10,12,14,16

CONTACT

USAGE

SIGNAL

PAIR

SIGNAL

PAIR

DAUGHTERCARD

CONNECTOR

bx

cx

ex

fx

(ALL COMMONED)

BACKPLANE

CONNECTOR

cx

dx

gx

hx

TABLE 1

10.85

REF

8 SIGNAL CONTACTS

OUTLINED FOR CLARITY

CONNECTOR KEEPOUT

AREA

7.2

0.10

4 HOLES

SEE NOTE

14.40

REF

0.56

0.05

7.20

REF

GROUNDS

ax,dx,gx,

ax,bx,ex,

fx, ix

2.21

REF

PIN "g16"

3 PLC

B

0.10

112 HOLES

TYPICAL INTERCONNECTIONS FOR

EACH ODD-NUMBERED

COLUMN (WAFER): 1,3,5,7,9,11,13,15

CONTACT

USAGE

SIGNAL

PAIR

SIGNAL

PAIR

DAUGHTERCARD

CONNECTOR

BACKPLANE

CONNECTOR

B

10.85

32 SIGNAL PAIRS

OUTLINED FOR CLARITY

9.35

1.35

6 PLC

30.48

-X-

ax

bx

dx

ex

gx

ax

bx

ex

fx

SIGNAL

GROUNDS

OF

-X-

ix

cx,dx,gx,hx

(ALL COMMONED)

cx,fx

2.64

REF

NOTE: "x" DESIGNATES THE COLUMN NUMBER

GROUND

40 PLC

DAUGHTERCARD EDGE

15PLC

1.8

1.50

0.84

REF

12.50

TOP OF MOTHERBOARD

PC BOARD LAYOUT

(CONNECTOR SIDE)

SCALE

5:1

1410188-4

1410188-3

1410188-2

PLATING

1410188-1

PART NO

TE Connectivity

NAME

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

APVD

PRODUCT SPEC

A

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

APPLICATION SPEC

WEIGHT

A1

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

OF

REV

4805 (3/11)

1410188-3 Related Products

	1410188-3
Description	MULTIGIG RT T2 7RW DC DF F-RGT
Connector System	Board to Board
Line spacing	.053 mm [ 1.35 in ]
Connector type	plug
with hood	All hooded
Connectors and terminals terminate to	A printed circuit board
Number of Positions	112
Rows	7
Number of columns	16
Board-to-board configuration	right angle
PCB mounting direction	right angle
boot position	right
Card slot center line	20.3 mm [ .8 in ]
Contact Current Rating (Max) (A)	1
joint alignment	with
Joint alignment type	polarization
Connector mounting type	board mounting
Centerline (Pitch)	1.8 mm [ .071 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
Circuit Application	Power and Signal
