5536513-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5536513-2

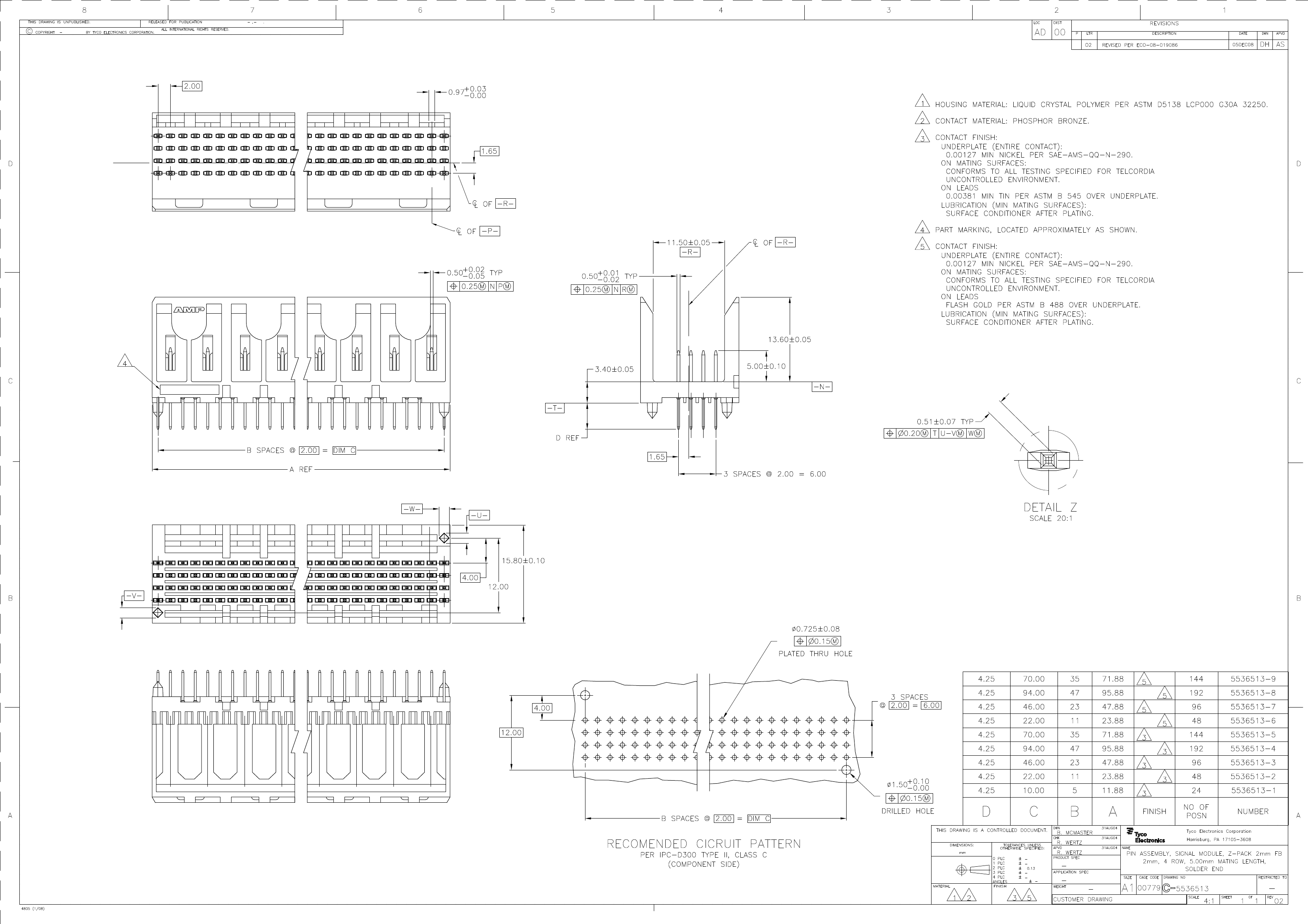

5536513-2: Description2MM FB,SIG,PIN,ASY,048,4.25; CategoryThe connector The connector; File Size166KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5536513-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5536513-2	-	-	View	Buy Now

5536513-2 Overview

2MM FB,SIG,PIN,ASY,048,4.25

5536513-2 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
Factory Lead Time	20 weeks 6 days
Other features	Z-PACK
body width	0.622 inch
subject depth	0.669 inch
body length	0.94 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.695 N
Insulation resistance	100000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.167 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	48
Evacuation force-minimum value	.1112 N
Base Number Matches	1
