1410992-3 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 1410992-3

Preview

1410992-3: DescriptionVITA 41 RTM, Interim BP assy; CategoryThe connector; File Size613KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1410992-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1410992-3	-	-	View	Buy Now

1410992-3 Overview

VITA 41 RTM, Interim BP assy

1410992-3 Parametric

Parameter Name	Attribute value
Connector System	Board to Board
Line spacing	.071 mm [ 1.8 in ]
Connector type	female end
with hood	without hood
Connectors and terminals terminate to	A printed circuit board
plate	switch slot
Number of Positions	135
Rows	9
Number of columns	15
Board-to-board configuration	vertical
PCB mounting direction	vertical
boot position	center
Card slot center line	20.3 mm [ .8 in ]
Contact Current Rating (Max) (A)	1
joint alignment	with
Joint alignment type	polarization
Connector mounting type	board mounting
Centerline (Pitch)	1.8 mm [ .071 in ]
Working group temperature range	-55 – 105 °C [ -67 – 221 °F ]
Circuit Application	Power and Signal
Comment	15 columns, 7 of which are loaded.

Preview

Download Datasheet

View All

8

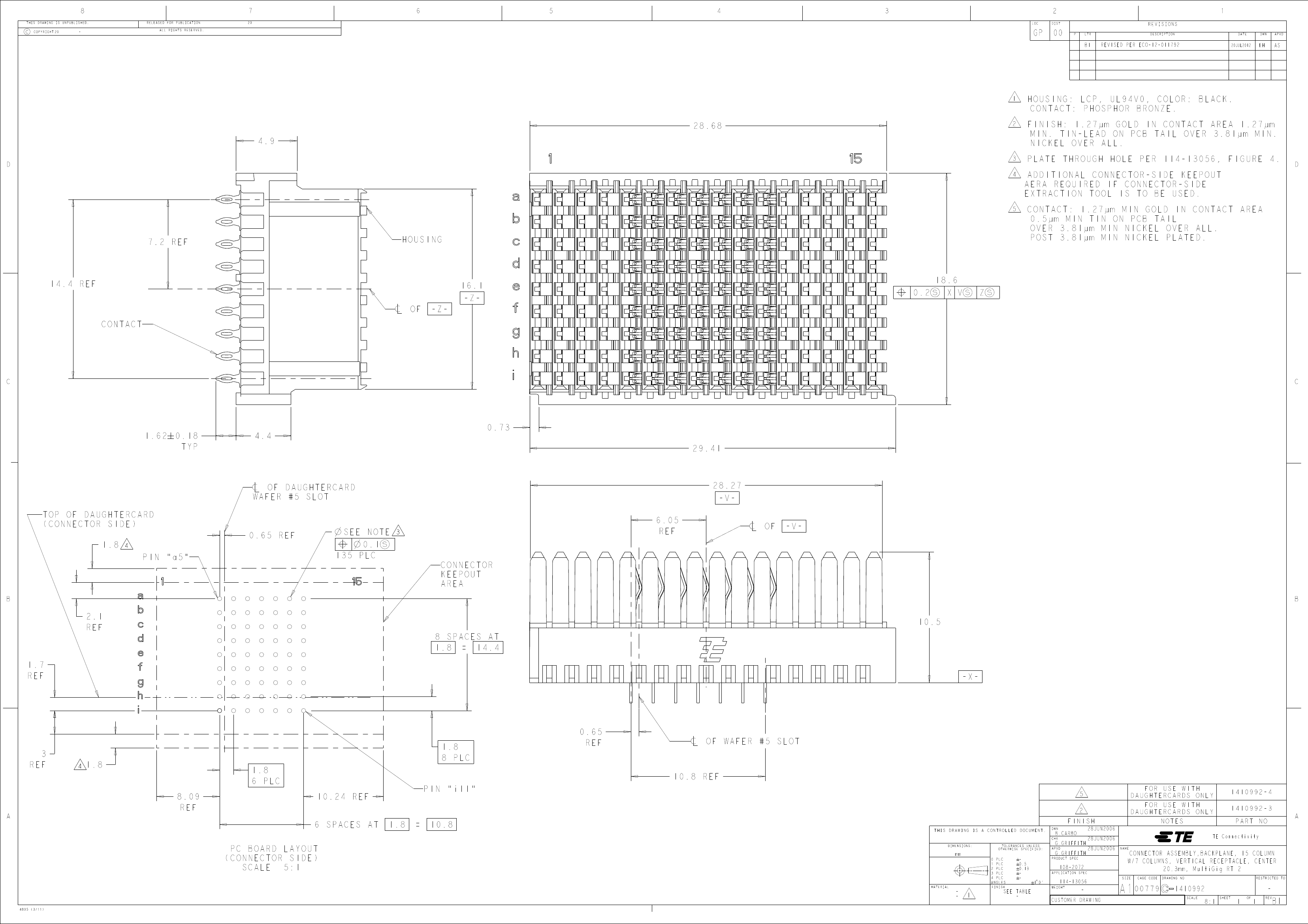

THIS DRAWING IS UNPUBLISHED.
