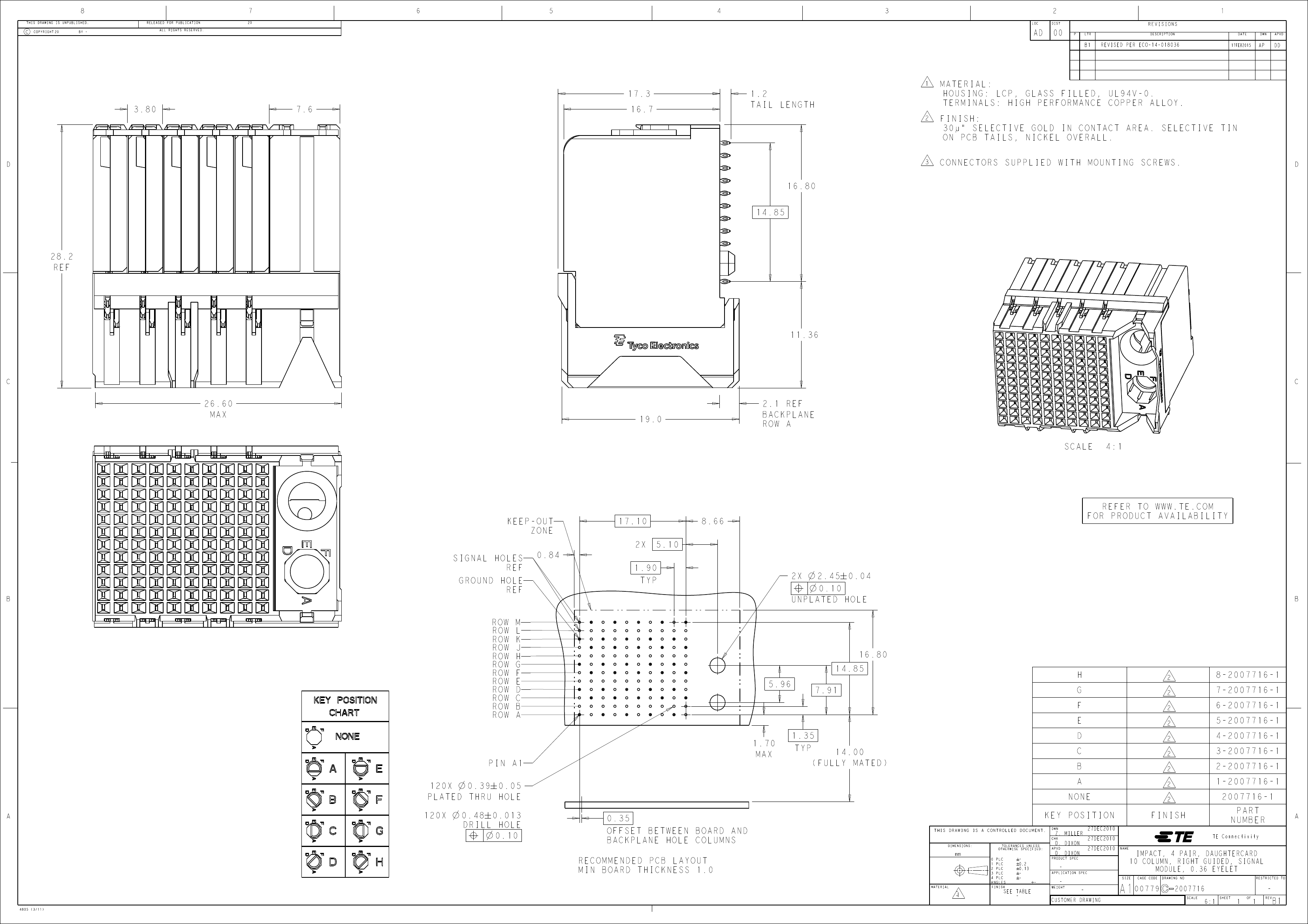

Board Connector, 120 Contact(s), 12 Row(s), Female, Right Angle, 0.075 inch Pitch, Press Fit Terminal, Locking, Black Insulator, Receptacle
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Objectid | 1478955340 |
| Reach Compliance Code | compliant |
| Samacsys Description | IMP100S,R,RA4P10C,RG,39 |
| Samacsys Manufacturer | TE Connectivity |
| Samacsys Modified On | 2020-10-11 10:54:44 |
| YTEOL | 7.75 |
| Board mount options | LOCATING POST |
| body width | 1.11 inch |
| subject depth | 0.681 inch |
| body length | 1.047 inch |
| Body/casing type | RECEPTACLE |
| Characteristic impedance | 100 Ω |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact completed and terminated | NOT APPLICABLE |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Electromagnetic interference shielding | NO |
| empty shell | YES |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 40.032 N |
| Insulation resistance | 10000000000 Ω |
| Insulator color | BLACK |
| insulator material | GLASS FILLED LIQUID CRYSTAL POLYMER |
| MIL compliance | NO |
| Power Connector Ratings | .75A |
| Plug contact pitch | 0.075 inch |
| Match contact row spacing | 0.053 inch |
| Mixed contacts | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 12 |
| Number of ports | 1 |
| Number of rows loaded | 12 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 1.3462 mm |
| Panel mounting | NO |
| Plating thickness | 30u inch |
| polarization key | POLARIZED |
| Rated current (signal) | 0.75 A |
| Rated voltage | 30 V |
| Guideline | UL |
| Terminal length | 0.047 inch |
| Terminal pitch | 1.9 mm |
| Termination type | PRESS FIT |
| Total number of contacts | 120 |
| UL Flammability Code | 94V-0 |
