Part Number

Search

5223002-2

Description
FB-5R,ASY,060,SIG,HDR,EN,4.25
CategoryThe connector    The connector
File Size207KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5223002-2 Online Shopping

Suppliers Part Number Price MOQ In stock
5223002-2 - - View Buy Now

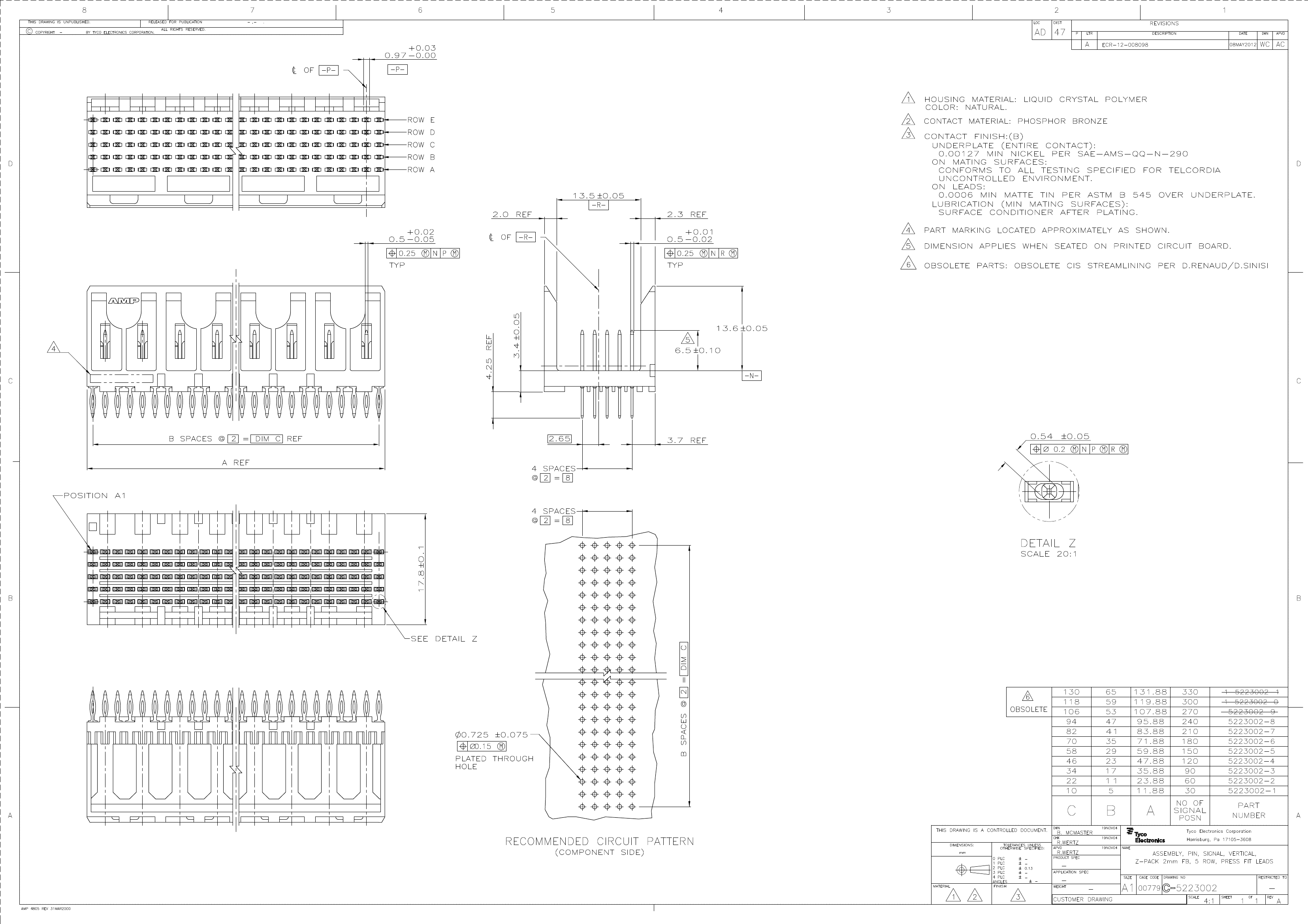

5223002-2 Overview

FB-5R,ASY,060,SIG,HDR,EN,4.25

5223002-2 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time15 weeks 6 days
Other featuresZ-PACK
body width0.701 inch
subject depth0.669 inch
body length0.94 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Dielectric withstand voltage1000VAC V
Durability250 Cycles
Filter functionNO
IEC complianceNO
maximum insertion force.695 N
Insulation resistance100000000 Ω
Insulator colorNATURAL
insulator materialLIQUID CRYSTAL POLYMER (LCP)
MIL complianceNO
Manufacturer's serial number5223002
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number5
Number of rows loaded5
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.0066 mm
Plating thickness30u inch
polarization keyPOLARIZED HOUSING
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.167 inch
Terminal pitch2 mm
Termination typePRESS FIT
Total number of contacts60
Evacuation force-minimum value.11954 N
Base Number Matches1

5223002-2 Related Products

5223002-2 5223002-4 5223002-6
Description FB-5R,ASY,060,SIG,HDR,EN,4.25 FB-5R,ASY,120,SIG,HDR,EN,4.25 FB-5R,ASY,180,SIG,HDR,EN,4.25
Brand Name AMP AMP AMP
Is it lead-free? Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to
Reach Compliance Code compliant compliant compliant
ECCN code EAR99 EAR99 EAR99
Factory Lead Time 15 weeks 6 days 17 weeks 15 weeks 5 days
Other features Z-PACK Z-PACK Z-PACK
body width 0.701 inch 0.701 inch 0.701 inch
subject depth 0.669 inch 0.669 inch 0.669 inch
body length 0.94 inch 1.885 inch 2.83 inch
Body/casing type PLUG PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Contact point gender MALE MALE MALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO NO
Dielectric withstand voltage 1000VAC V 1000VAC V 1000VAC V
Durability 250 Cycles 250 Cycles 250 Cycles
Filter function NO NO NO
IEC compliance NO NO NO
maximum insertion force .695 N .695 N .695 N
Insulation resistance 100000000 Ω 100000000 Ω 100000000 Ω
Insulator color NATURAL NATURAL NATURAL
insulator material LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP) LIQUID CRYSTAL POLYMER (LCP)
MIL compliance NO NO NO
Manufacturer's serial number 5223002 5223002 5223002
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch
Mixed contacts NO NO NO
Installation option 1 LOCKING LOCKING LOCKING
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of connectors ONE ONE ONE
PCB row number 5 5 5
Number of rows loaded 5 5 5
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.0066 mm 2.0066 mm 2.0066 mm
Plating thickness 30u inch 30u inch 30u inch
polarization key POLARIZED HOUSING POLARIZED HOUSING POLARIZED HOUSING
Guideline UL, CSA UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.167 inch 0.167 inch 0.167 inch
Terminal pitch 2 mm 2 mm 2 mm
Termination type PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 60 120 180
Evacuation force-minimum value .11954 N .11954 N .11954 N
Base Number Matches 1 1 1
