DESCRIPTION
Preliminary
Updated description on Pin Assignment Table
Add ECCN
Change PRBS Specification to 2
7
-1
Edit Bag and Tag Labeling
Remove incorrect reference to ATMEL AT240C01A, added optional I2C addressing
Remove Fibrechannel 4x compatibility
Added 1470nm-1590nm wavelength options
DATE
06/05/2015
01/04/2016
05/26/2016
10/12/2016
12/09/2016
02/27/2017
05/25/2017
01/16/2020
APPROVED
SZ
SZ
RAS
SZ/GC
RAS/GC
RAS/GC
RAS/GC
JLL/RAS/SZ
BF14U2-7542
THIS COPYRIGHTED DOCUMENT IS THE PROPERTY OF GLENAIR, INC. AND IS FURNISHED ON THE CONDITION THAT IT IS NOT TO
BE DISCLOSED, REPRODUCED IN WHOLE OR IN PART, OR USED TO SOLICIT QUOTATIONS FROM COMPETITIVE SOURCES, OR USED
FOR MANUFACTURE BY ANYONE OTHER THAN GLENAIR, INC. WITHOUT WRITTEN PERMISSION FROM GLENAIR, INC. THE INFORMATION
HEREIN HAS BEEN DEVELOPED AT GLENAIR'S EXPENSE AND MAY BE USED FOR ENGINEERING EVALUATION AND INCORPORATION
INTO TECHNICAL SPECIFICATIONS AND OTHER DOCUMENTS WHICH SPECIFY PROCUREMENT OF PRODUCTS FROM GLENAIR, INC.
050-342 Product Brief
PCB Mount CWDM Transceiver
100 Mbps – 2.5 Gbps, SMF, 3.3V
PCB Mount Fiber Optic CWDM Transceiver, 100M-2.5Gbps, SMF, 3.3V

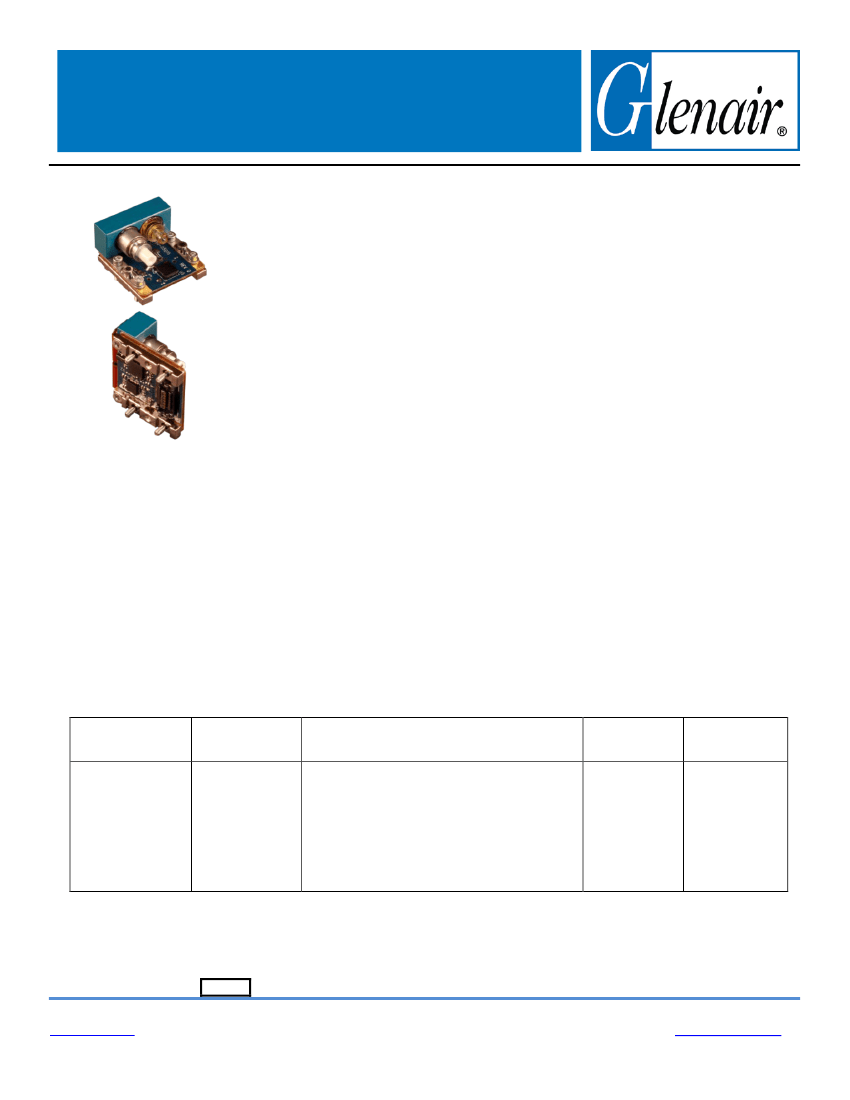

Glenair 050-342, is a ruggedized harsh environment PCB mount Transceiver
with electrical and optical functionality equivalent to SFP transceivers but with
mechanical design that is suited to the harsh temperature and vibration environments
found in the Military, Aerospace, Railway, Oil and Gas, and Industrial applications.
The PCB mount optical transceivers also support Digital Monitoring Interface (DMI)
features in accordance with SFF 8472. The Transceiver is comprised of a transmitter
section and a receiver section that resides on a common package and interface with a
host board through a high speed electrical connector.
The transmitter section consists of a CWDM DFB Transmitter Optical
Subassembly (TOSA) and laser driver. The TOSA is driven by a laser driver, which
converts differential CML logic signals into an analog laser diode drive current. This
laser driver circuit requires DC balanced input signals to operate properly (examples of
balanced signals would include 4B/5B or 8B10B encoding)
The receiver section consists of a Receiver Optical Subassembly (ROSA) and
limiting amplifier to provide quantized CML output signals.
KEY FEATURES/BENEFITS
SFP Compatible Electrical I/O signal levels
CWDM DFB lasers to support up to 2.5 Gbps
PIN PD to support high sensitivity up to 4.25 Gbps
Industry standard CML input and outputs that
make for simple integration on customer host PCB
Glenair Rugged GC Optical connector
Transceiver is securely mounted with screws to
PCB to ensure excellent shock and vibration
performance
High-Speed Electrical plug-in connector eliminates
the need for soldering & enables ease of servicing
Compact Size: Approx. 0.8” x 0.9” x 0.5”
-40°C to +85°C Operating Case Temperature
Glenair fiber jumpers connect from transceiver to
any Glenair Mil/Aero Fiber Optic Connector Style
Evaluation fixtures available
Digital Diagnostic and Monitoring (DMI) based on
SFF-8472
APPLICATIONS
Harsh Environment such as: Airborne, Tactical,
Railway, Industrial, Oil and Gas and Shipboard
applications
o
Ethernet, Fibrechannel 1x, 2x, sFPDP
HOW TO ORDER
Part Number
Table 1
Two Wire
Address
Blank = A2h
Other Options:
C0, C2, C4, C6,
C8, CA, CC, CE,
D0, D2, D4, D6,
D8, DA, DC, DE
Part Number Development Options
Wavelengths
Temperature**
Screw
Length**
(Mod Code)
Blank =
Standard
-954-xxx =
IAW Mod Code
954
050-342
PCB Mount
CWDM
Transceiver, SMF,
0.1-2.5 Gbps
-1D-1270 = 1270nm
-1D-1290 = 1290nm
-1D-1310 = 1310nm
-1D-1330 = 1330nm
-1D-1350 = 1350nm
-1D-1370 = 1370nm
-1D-1390 = 1390nm
-1D-1410 = 1410nm
-1D-1430 = 1430nm
-1D-1450 = 1450nm
-1D-1470 = 1470nm
-1D-1490 = 1490nm
-1D-1510 = 1510nm
-1D-1530 = 1530nm
-1D-1550 = 1550nm
-1D-1570 = 1570nm
-1D-1590 = 1590nm
Blank =
Standard
Example:
050-342C0-1D-1270
PCB Mount CWDM Transceiver, SMF, 1270nm, Two Wire Address = C0h, Data Rate = 100 Mbps – 2.5 Gbps,
Standard Temperature Range, Standard Screw Length
**Temperature and Screw Length Mod Codes will not be added onto Digital Memory ID (See Table 9)
©2015 Glenair, Inc.
REV: 9
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 2 of 15
050-342 Product Brief
PCB Mount CWDM Transceiver
100 Mbps – 2.5 Gbps, SMF, 3.3V
Ratings and Specifications
T
ABLE
2 A
BSOLUTE
M
AXIMUM
R
ATINGS
Parameter
Storage Temperature
Supply Voltage
Symbol
Ts
V
cc
Min
-55
-0.4
Typ
Max
+100
3.8
Units
°C
V
VccT & VccR may not differ by
more than 0.5V
Notes
T
ABLE
3 O
PERATING
C
ONDITIONS
Parameter
Operating Temperature
Supply Voltage
Supply Current
Power Supply Noise (Peak-Peak)
Symbol
T
op
V
cc
Icc
V
cc_ripple
Min
-40
3.135
3.3
210
Typ
Max
+85
3.465
250
100
Units
°C
V
mA
mV
Typical @ +85°C
Notes
T
ABLE
4 E
LECTRO
-O
PTICAL
C
HARACTERISTICS
– T
RANSMITTER
Parameter
Optical Output Power
Extinction Ratio, 1.25Gbps
Extinction Ratio, 2.5Gbps
Optical Wavelength, 1270
Optical Wavelength, 1290
Optical Wavelength, 1310
Optical Wavelength, 1330
Optical Wavelength, 1350
Optical Wavelength, 1370
Optical Wavelength, 1399
Optical Wavelength, 1410
Optical Wavelength, 1430
Optical Wavelength, 1450
Optical Wavelength, 1470
Optical Wavelength, 1490
Optical Wavelength, 1510
Optical Wavelength, 1530
Optical Wavelength, 1550
Optical Wavelength, 1570
Optical Wavelength, 1590
Symbol
P
OUT
Er
Er
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
λ
OUT
Min
-2
7
6
1261
1281
1301
1321
1341
1361
1381
1401
1421
1441
1461
1481
1501
1521
1541
1561
1581
1270
1290
1310
1330
1350
1370
1390
1410
1430
1450
1470
1490
1510
1530
1550
1570
1590
1278.5
1298.5
1318.5
1338.5
1358.5
1378.5
1398.5
1418.5
1438.5
1458.5
1478.5
1498.5
1518.5
1538.5
1558.5
1578.5
1598.5
nm
nm
nm
nm
nm
nm
nm
nm
nm
nm
nm
nm
nm
nm
nm
nm
nm
Typ
1.5
10
Max
+3.5
Units
dBm
dB
Exceeds OMA for GbE, 1FC
Exceeds OMA for 2FC
Notes
©2015 Glenair, Inc.
REV: 9
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 3 of 15
050-342 Product Brief
PCB Mount CWDM Transceiver
100 Mbps – 2.5 Gbps, SMF, 3.3V
Ratings and Specifications (continued)
T
ABLE
4 E
LECTRO
-O
PTICAL
C
HARACTERISTICS
– T
RANSMITTER
(
CONTINUED
)
Spectral Width, rms
Side Mode Suppression Ratio
Relative Intensity Noise
Transmitter Differential Input Impedance
Differential Input Voltage
Δλ
SMSR
RIN
Rin
Vin_d
250
100
2200
30
-117
1
nm
dB
dB/Hz
Ohms
mV
p-p
AC coupled Internally
CML, 100 ohm
T
ABLE
5 E
LECTRO
-O
PTICAL
C
HARACTERISTICS
- R
ECEIVER
Parameter
Sensitivity, BER 10
-12
, PRBS 2
7
-1, Er 10 dB
Sensitivity, BER 10 , PRBS 2 -1, Er 10 dB
Overload, BER 10
-12
, PRBS 2
7
-1
Optical Wavelength
Receiver Differential Output Impedance
Differential Output Voltage Swing
LOS Assert Level
LOS Hysteresis
-12
7
Symbol
P
IN
P
IN
P
IN
λ
IN
Rout
Vout_d
LOS
LOS
HYS
Min
Typ
-23
-22
Max
-20
-19
1600
Units
dBm
dBm
dBm
nm
Ohms
Notes
PIN PD @ 1.25 Gbps
PIN PD @ 2.5 Gbps
@1.25Gbps or @ 2.5 Gbps
AC coupled internally
CML, 100 ohm
@ 1.25Gbps
@ 1.25Gbps
-1
1260
100
600
-25
1.25
2.2
1200
-23
mV
p-p
dBm
dB
T
ABLE
6 C
OMPLIANCE
S
PECIFICATIONS
CHARACTERISTIC
Mechanical Shock
Mechanical Vibration
ESD
Flame Resistance
Damp Heat
Eye Safety
Standard
MIL-STD-810
MIL-STD-810
MIL-STD-883
MIL-STD-1344
MIL-STD-1344
CDRH and IEC-825
Method 1012, Cond. B
Method 1002.2, Cond. B
Class 1 Laser Product
Condition
Para. 516.6, proc. I, 650g
Para. 514.6,
40g rms
Notes
0.9 ms operating
Random, operating
500V HBM
30 seconds
10 cycles , 24 hours
T
ABLE
7 M
ATERIAL
/F
INISH
Item
PCB
PCB flex
Railings
Screws
Optical Ferrules & Sleeves
Solder type
Material/Finish
FR4
FR4 & Polyimide
Aluminum 6061-T6 per ASTM-B221/B211M or Equivalent
CRES Type, 302, 303, 304, 305, or 316
Zirconia, Ceramic
RoHS compliant Sn95/Sb5 (232°C melting temp) &
RoHS compliant Sn96.5/Ag3.0/Cu0.5 (217° melting)
US Cage Code 06324
∙
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
©2015 Glenair, Inc.
REV: 9
∙
1211 AIR WAY
GLENAIR, INC.
www.glenair.com
PAGE 4 of 15
050-342 Product Brief
PCB Mount CWDM Transceiver
100 Mbps – 2.5 Gbps, SMF, 3.3V

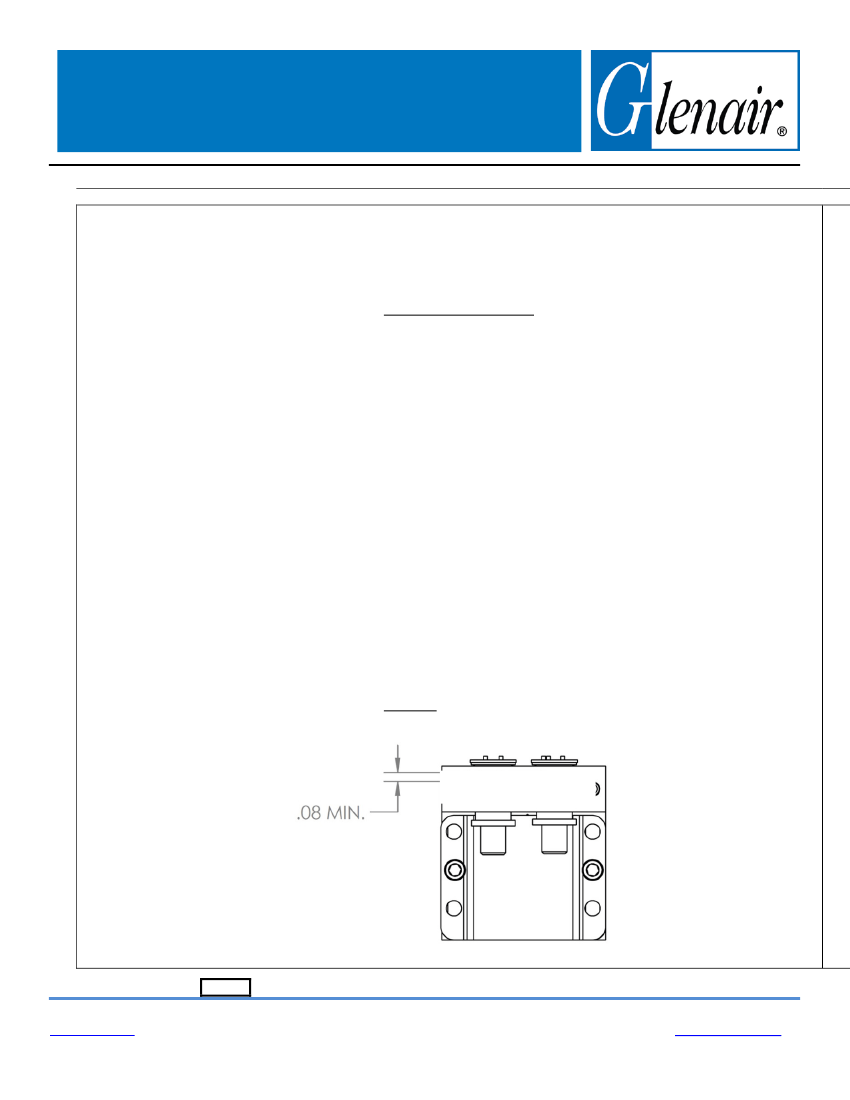

FIGURE 1 - OUTLINE DRAWING CONTINUED (MARKING)
LABELING:
Each unit will be shipped in an individual antistatic bag. The label on the antistatic bag shall in Arial size 10 black font
and contain the following information:
ANTISTATIC BAG LABEL:
Glenair
Cage Code: 06324
PN: 050-342XX-XX-XXXX
Rev: X
QTY: X
J/N: X
D/C:X
S/N*: XXXXXX
*If QTY is more than 1, there is no S/N
Each unit will be marked on the transceiver as follows. Either laser engraving or labeling may be used.
•
Marking font to be Arial, greater than .08 inches in height.
•
Marking:
FIRST LINE OF TEXT
•
Glenair
•
Serial Number (6 digits)
SECOND LINE OF TEXT:
•
Part number
Example
GLENAIR SN123456
050-342C0-1D-1370
©2015 Glenair, Inc.
REV: 9
∙
1211 AIR WAY
∙
US Cage Code 06324
GLENDALE, CA 91201-2497
∙
TEL: 818-247-6000
∙
Printed in USA
FAX: 818-500-9912
E-mail:
sales@glenair.com
GLENAIR, INC.
www.glenair.com
PAGE 5 of 15
