ACTS245T
Semiconductor
Data Sheet
January 1999
File Number
4611
Radiation Hardened Octal Non-Inverting
Bidirectional Bus Transceiver
Harris’ Satellite Applications
(SAF) devices are fully
tested and guaranteed to 100kRAD Total Dose. These QML
Class T devices are processed to a standard flow intended
to meet the cost and shorter lead-time needs of large
volume satellite manufacturers, while maintaining a high
level of reliability.
The Harris ACTS245T is a Radiation Hardened Octal Non-
Inverting Bidirectional Bus Transceiver intended for two-way
asynchronous communication between data busses.
Flow
TM
Features
• QML Class T, Per MIL-PRF-38535
• Radiation Performance
- Gamma Dose (γ) 1 x 10
5
RAD(Si)
- Latch-Up Free Under Any Conditions
- Single Event Upset (SEU) Immunity: <1 x 10
-10
Errors/Bit/Day (Typ)
- SEU LET Threshold . . . . . . . . . . . . .>100 MEV-cm
2
/mg
• 1.25 Micron Radiation Hardened SOS CMOS
• Significant Power Reduction Compared to ALSTTL Logic
• DC Operating Voltage Range . . . . . . . . . . . . 4.5V to 5.5V
• Input Logic Levels
- V
IL
= 0.8V Max
- V
IH
= V
CC/2
Min
• Fast Propagation Delay . . . . . . . . 18ns (Max), 12ns (Typ)
Specifications
Specifications for Rad Hard QML devices are controlled by
the Defense Supply Center in Columbus (DSCC). The SMD
numbers listed below must be used when ordering.
Detailed Electrical Specifications for the ACTS245T are
contained in SMD 5962-96719.
A “hot-link” is provided from
our website for downloading.
http://www.semi.harris.com/families/smdrh.htm
Harris’ Quality Management Plan (QM Plan), listing all Class
T screening operations, is also available on our website.
http://www.semi.harris.com/quality/manuals.htm
Pinouts
ACTS245T (SBDIP), CDIP2-T20
TOP VIEW
DIR
A0
A1
1
2
3
4
5
6
7
8
9
20 V
CC
19 OE
18 B0
17 B1
16 B2
15 B3
14 B4
13 B5
12 B6
11 B7
Ordering Information
ORDERING
NUMBER
5962R9671901TRC
ACTS245D/Sample
5962R9671901TXC
ACTS245K/Sample
PART
NUMBER
ACTS245DTR
ACTS245D/Sample
ACTS245KTR
ACTS245K/Sample
TEMP.
RANGE
(
o
C)
-55 to 125
25
-55 to 125
25
A2
A3
A4
A5
A6
A7
GND 10
NOTE:
Minimum order quantity for -T is 1000 units
Orders must be placed through Harris Sales or Rep Offices.
DIR
A0
A1
A2
A3
A4
A5
A6
A7
GND
ACTS245T (FLATPACK), CDFP4-F20
TOP VIEW
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
V
CC
OE
B0
B1
B2
B3
B4
B5
B6
B7
1
CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.
1-800-4-HARRIS
|
Copyright
©
Harris Corporation 1999
Satellite Applications Flow™ (SAF) is a trademark of Harris Corporation.
ACTS245T
Die Characteristics
DIE DIMENSIONS:
(2440µm x 2970µm x 533µm
±51µm)
96 x 117 x 21mils
±2mil
METALLIZATION:
Type: Al Si Cu
Thickness: 10.0k
Å
±2k
Å
SUBSTRATE POTENTIAL:
Unbiased (Silicon on Sapphire)
Bond Pad #20 (V
CC
) First
Bond Pad #20 (V
CC
) Uses Two Bond Wires
Bond Pad #10 (GND) Uses Two Bond Wires
BACKSIDE FINISH:
Sapphire
PASSIVATION:
Type: Silox (S
i
O
2
)
Thickness: 8.0k
Å
±1.0k
Å
WORST CASE CURRENT DENSITY:
< 2.0e5 A/cm
2
TRANSISTOR COUNT:
420
PROCESS:
CMOS SOS

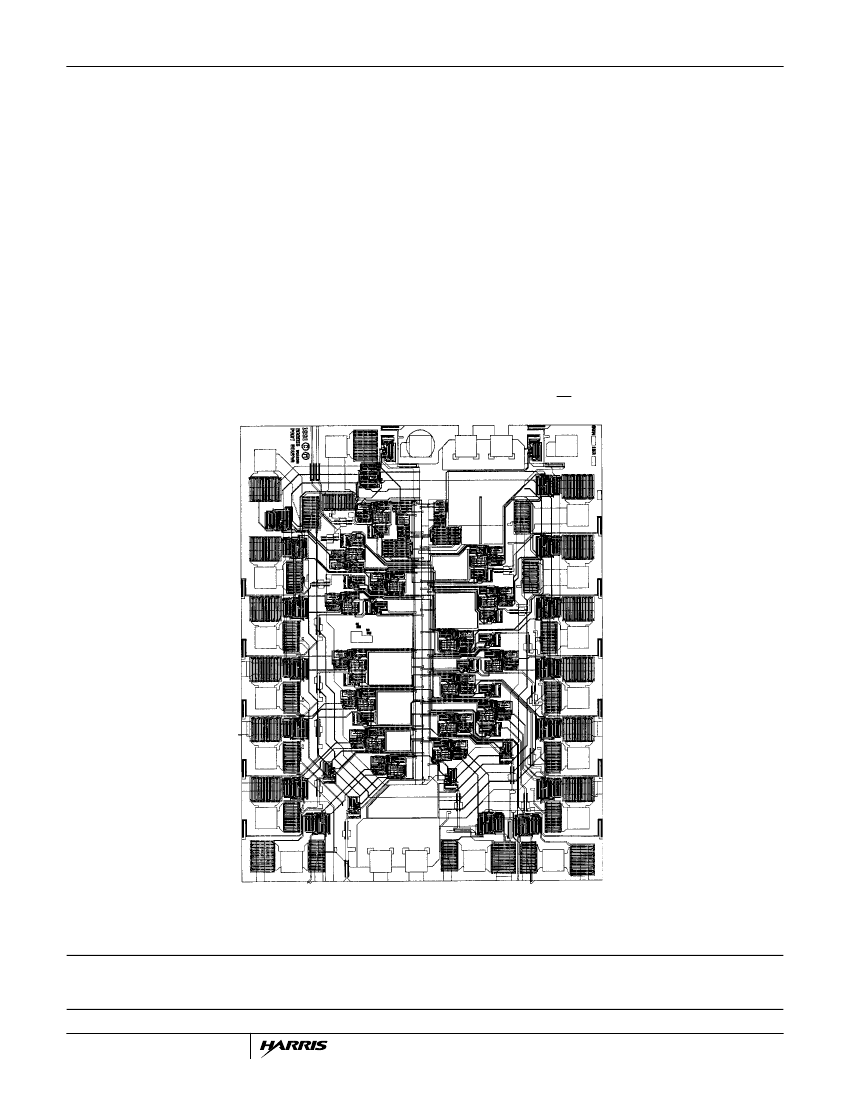

Metallization Mask Layout
ACTS245T
A0
(2)
DIR
(1)
VCC
(20)
VCC
(20)
OE
(19)
A1 (3)
(18) B0
A2 (4)
(17) B1
A3 (5)
(16) B2
A4 (6)
(15) B3
A5 (7)
(14) B4
A6 (8)
(13) B5
(9)
A7
(10)
GND
(10)
GND
(11)
B7
(12)
B6
