Part Number

Search

5535070-4

Description
48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE, LEAD FREE
File Size140KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5535070-4 Online Shopping

Suppliers Part Number Price MOQ In stock
5535070-4 - - View Buy Now

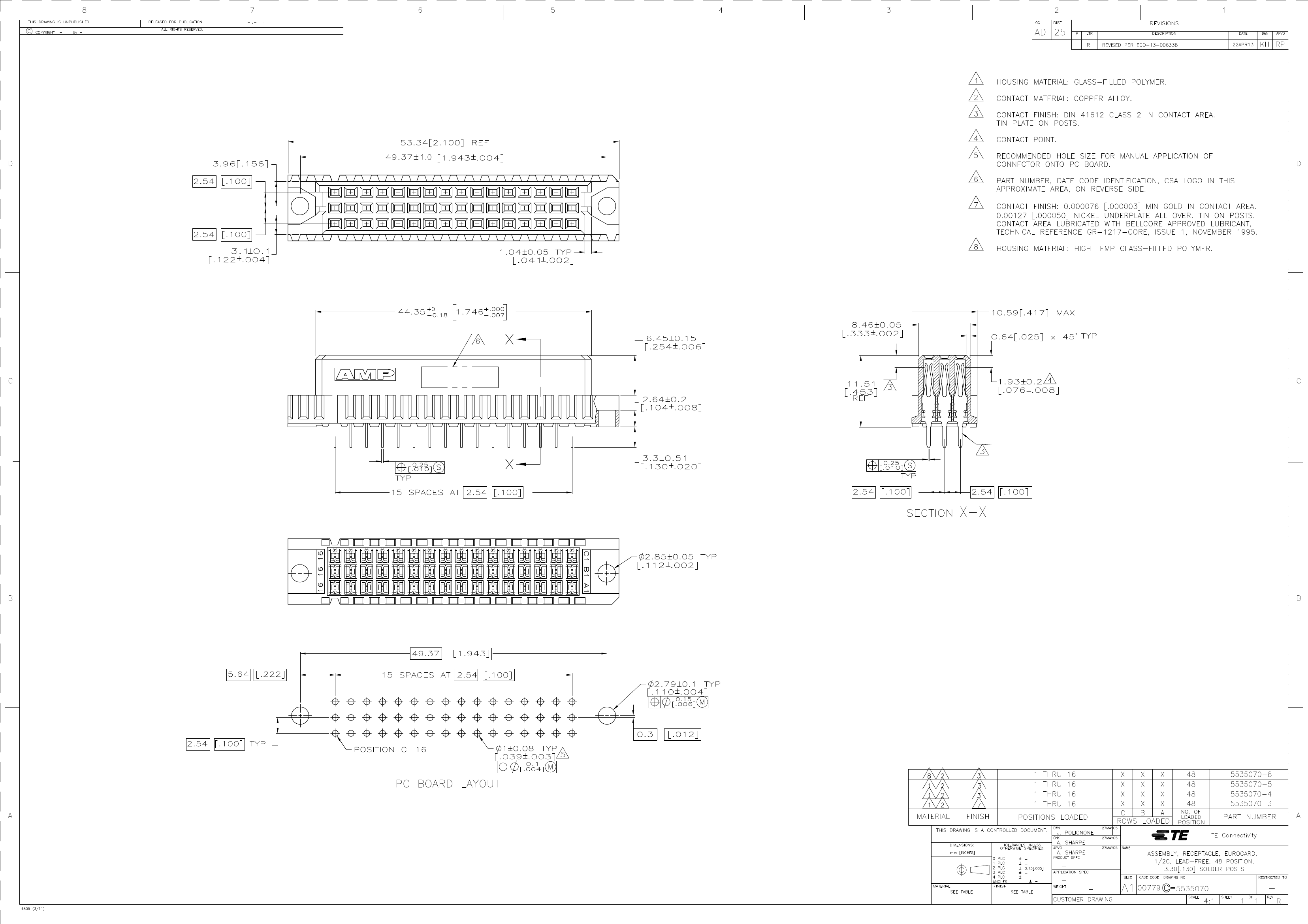

5535070-4 Overview

48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE, LEAD FREE

5535070-4 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1807359130
package instructionLEAD FREE
Reach Compliance Codecompliant
Factory Lead Time17 weeks
Samacsys DescriptionTE Connectivity Eurocard Series 48 Way 2.54mm Pitch, Type C Class C2, 3 Row a/b/c, Straight DIN 41612 Connector, Socket
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2023-03-07 16:10:32
YTEOL7.9
body width0.417 inch
subject depth0.453 inch
body length2.1 inch
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedNOT APPLICABLE
Contact point genderFEMALE
Contact materialNOT SPECIFIED
Contact resistance15 mΩ
Contact styleSQ PIN-SKT
DIN complianceNO
Electromagnetic interference shieldingNO
empty shellYES
Filter functionNO
IEC complianceNO
maximum insertion force.9452 N
Insulation resistance1000000000000 Ω
insulator materialGLASS FILLED POLYMER
MIL complianceNO
Power Connector Ratings115/230VAC
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Loaded row nameA,B,C
PCB row number3
Number of ports1
Number of rows loaded3
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Panel mountingNO
polarization keyPOLARIZED HOUSING
Rated current (signal)1.5 A
GuidelineUL, CSA
Terminal length0.13 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts48
Evacuation force-minimum value.15012 N

5535070-4 Related Products

5535070-4 5535070-5
Description 48 CONTACT(S), FEMALE, STRAIGHT TWO PART EURO CONNECTOR, SOLDER, RECEPTACLE, LEAD FREE ASSY,RECEPTACLE,EUROCARD,TYPE
Is it Rohs certified? conform to conform to
Objectid 1807359130 1807359131
package instruction LEAD FREE LEAD FREE
Reach Compliance Code compliant compliant
Factory Lead Time 17 weeks 15 weeks 4 days
Samacsys Description TE Connectivity Eurocard Series 48 Way 2.54mm Pitch, Type C Class C2, 3 Row a/b/c, Straight DIN 41612 Connector, Socket TE Connectivity 5535070 Series 48 Way 2.54mm Pitch, Type C Class C2, 3 Row a, b, c, Straight DIN 41612 Connector
Samacsys Manufacturer TE Connectivity TE Connectivity
Samacsys Modified On 2023-03-07 16:10:32 2023-03-07 16:10:32
YTEOL 7.9 7.9
body width 0.417 inch 0.417 inch
subject depth 0.453 inch 0.252 inch
body length 2.1 inch 2.1 inch
Body/casing type RECEPTACLE RECEPTACLE
Connector type BOARD EURO CONNECTOR BOARD EURO CONNECTOR
Contact to complete cooperation NOT SPECIFIED NOT SPECIFIED
Contact completed and terminated NOT APPLICABLE NOT APPLICABLE
Contact point gender FEMALE FEMALE
Contact material NOT SPECIFIED NOT SPECIFIED
Contact resistance 15 mΩ 15 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT
DIN compliance NO NO
Electromagnetic interference shielding NO NO
empty shell YES YES
Filter function NO NO
IEC compliance NO NO
maximum insertion force .9452 N .9452 N
Insulation resistance 1000000000000 Ω 1000000000000 Ω
insulator material GLASS FILLED POLYMER GLASS FILLED POLYMER
MIL compliance NO NO
Power Connector Ratings 115/230VAC 1.5A
Plug contact pitch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch
Mixed contacts NO NO
Installation option 1 LOCKING LOCKING
Installation method STRAIGHT STRAIGHT
Installation type BOARD BOARD
Loaded row name A,B,C A,B,C
PCB row number 3 3
Number of ports 1 1
Number of rows loaded 3 3
Maximum operating temperature 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C
Options GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm
Panel mounting NO NO
polarization key POLARIZED HOUSING POLARIZED
Rated current (signal) 1.5 A 1.5 A
Guideline UL, CSA UL
Terminal length 0.13 inch 0.13 inch
Terminal pitch 2.54 mm 2.54 mm
Termination type SOLDER SOLDER
Total number of contacts 48 48
Evacuation force-minimum value .15012 N .15012 N
