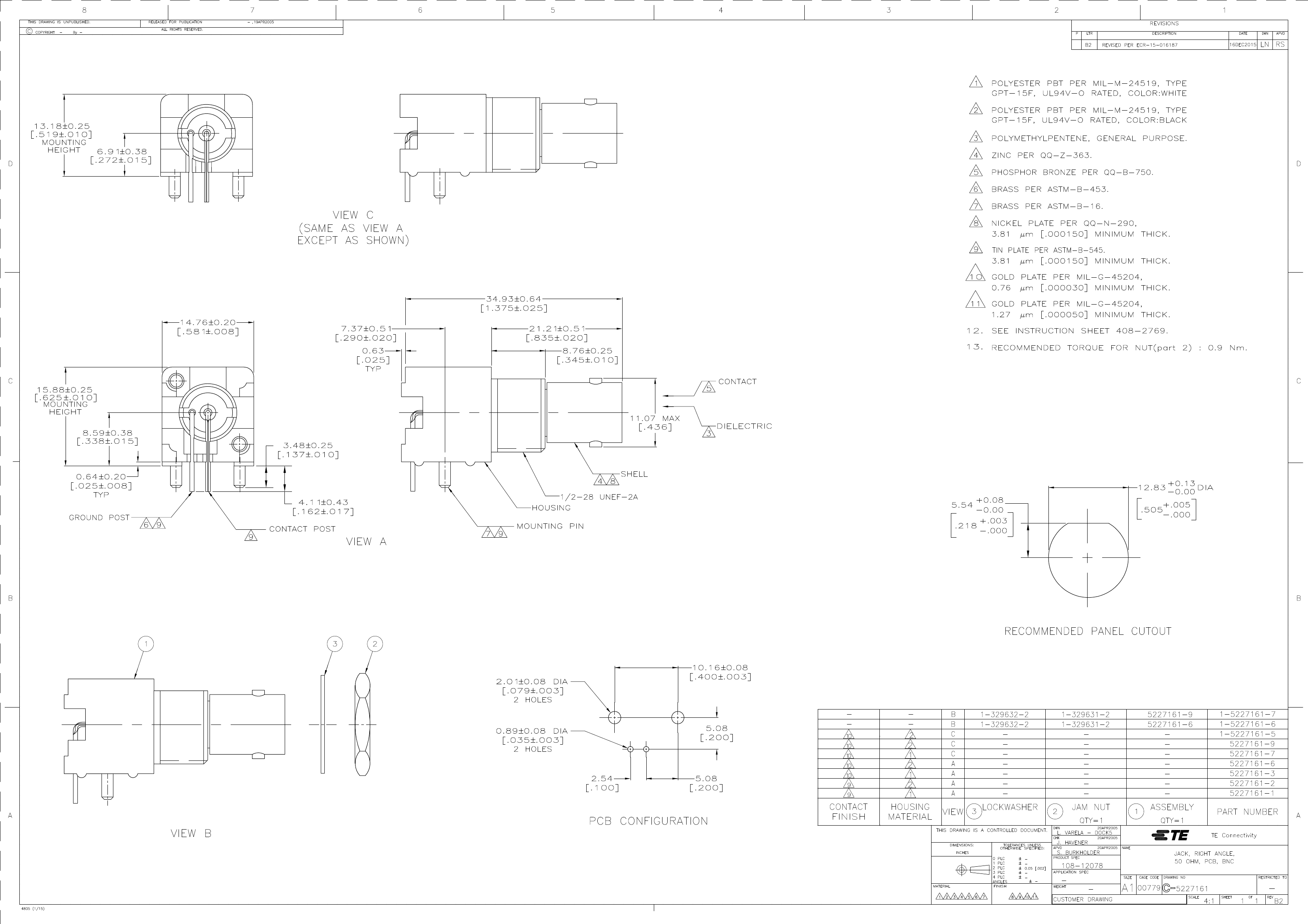

RTANG JK W/MTG PINS, BNC PCB
| Parameter Name | Attribute value |
| Brand Name | AMP |
| Is it lead-free? | Lead free |
| Is it Rohs certified? | conform to |
| Maker | TE Connectivity |
| Reach Compliance Code | not_compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 4 weeks |
| Samacsys Confidence | 3 |
| Samacsys Status | Released |
| Samacsys PartID | 257546 |
| Samacsys Pin Count | 2 |
| Samacsys Part Category | Connector |
| Samacsys Package Category | Other |
| Samacsys Footprint Name | 5227161-1 |
| Samacsys Released Date | 2016-06-16 15:49:01 |
| Is Samacsys | N |
| Other features | ROHS COMPLIANT |
| body width | 0.625 inch |
| subject depth | 1.4 inch |
| body length | 0.581 inch |
| Body/casing type | JACK |
| Characteristic impedance | 50 Ω |
| Connector type | RF BNC CONNECTOR |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| Contact style | COAX |
| Coupling type | BAYONET |
| DIN compliance | NO |
| Dielectric withstand voltage | 2100VAC V |
| Durability | 500 Cycles |
| Filter function | NO |
| IEC compliance | NO |
| maximum insertion force | 15.568 N |
| Insulation resistance | 5000000000 Ω |
| insulator material | POLYMETHYLPENTENE |
| MIL compliance | NO |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of ports | 1 |
| Maximum operating frequency | 4 GHz |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| Panel mounting | YES |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | ZINC |
| Terminal length | 0.162 inch |
| Termination type | SOLDER |
| Total number of contacts | 1 |
| Evacuation force-minimum value | .278 N |
| Base Number Matches | 1 |
