Single PCB terminal block - KDS 2,5 - 1705016
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
PC terminal block, Nominal current: 24 A, Nom. voltage: 400 V, Pitch: 5 mm, Number of positions: 1,
Connection method: Screw connection, Mounting: Soldering, Conductor/PCB connection direction: 0
°, Color: green, The article can be aligned to create different nos. of positions!

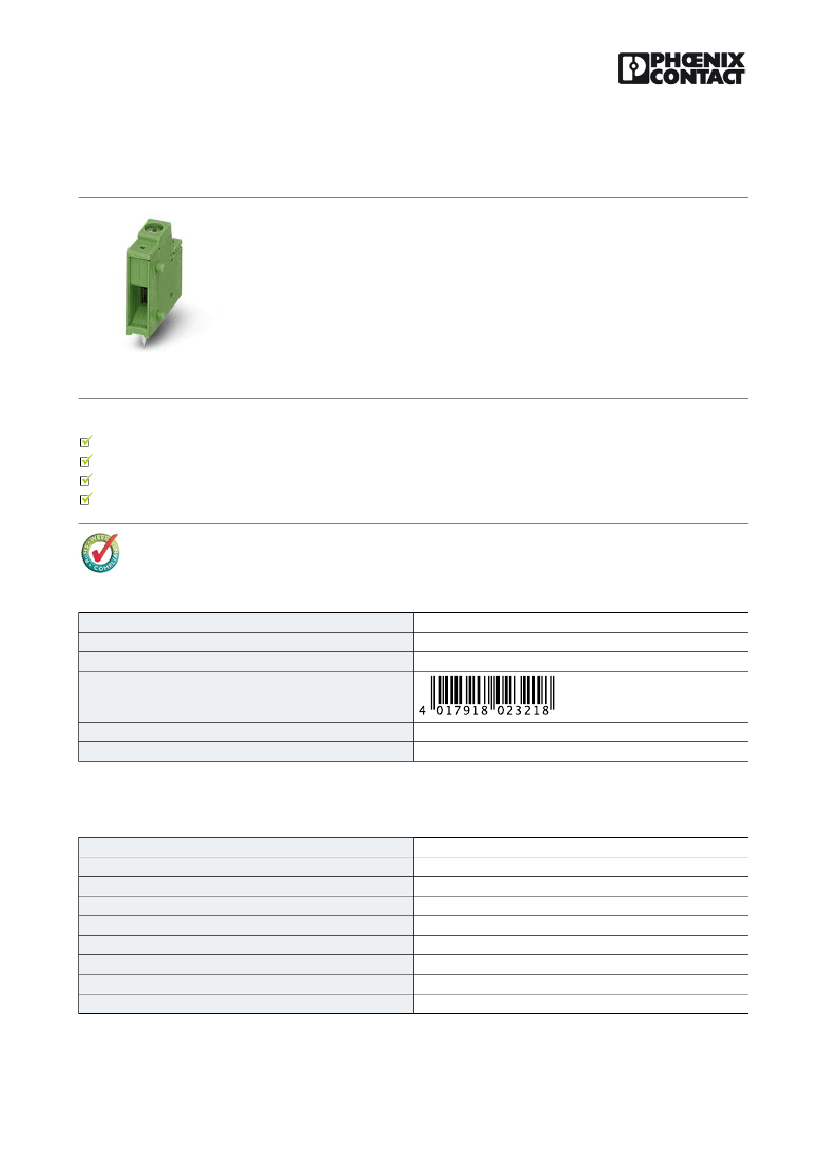

The figure shows a 10-position
version of the product
Why buy this product
Modular design enables blocking for larger numbers of positions
Two solder pins for a high level of stability on the PCB
Voltage increased by means of pitch spacers
Low-heat generating current transfer in the conductive path
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85369010
POLAND
1
1
Page 109 (CC-2011)
Technical data
Dimensions / positions
Length
Height
Pitch
Number of positions
Pin dimensions
Hole diameter
Screw thread
Tightening torque, min
Tightening torque max
17.2 mm
18 mm
5 mm
1
1,1 x 0,7 mm
1.4 mm
M3
0.5 Nm
0.6 Nm
Technical data
19.10.2012 Page 1 / 7
https://www.phoenixcontact.com/us/produkte/1705016
Single PCB terminal block - KDS 2,5 - 1705016
Technical data
Technical data
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current IN
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Internal cylindrical gage
Stripping length
Nominal voltage, UL/CUL Use Group B
Nominal current, UL/CUL Use Group B
Nominal voltage, UL/CUL Use Group D
Nominal current, UL/CUL Use Group D
KDS 2,5
I
4 kV
4 kV
4 kV
250 V
400 V
630 V
EN-VDE
24 A
2.5 mm²
32 A (with 4 mm² conductor cross section)
PA
V0
A3
9 mm
250 V
15 A
300 V
10 A
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, min.
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, max.
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
1.5 mm²
24
12
0.2 mm²
1 mm²
0.2 mm²
1.5 mm²
0.25 mm²
0.5 mm²
19.10.2012 Page 2 / 7
https://www.phoenixcontact.com/us/produkte/1705016
Single PCB terminal block - KDS 2,5 - 1705016
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.5 mm²
1 mm²
30
12
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141109
27141109
27141190
27141190
27261101
27440401
etim
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002643
EC002643
unspsc
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Approvals
Approvals
Approvals
CSA / UL Recognized / SEV / GOST / CCA / GOST
Ex Approvals
Approvals submitted
Approval details
19.10.2012 Page 3 / 7
https://www.phoenixcontact.com/us/produkte/1705016
Single PCB terminal block - KDS 2,5 - 1705016
Approvals
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-12
10 A
300 V
D
24-12
10 A
300 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
SEV
mm²/AWG/kcmil
Nominal voltage UN
4
250 V
B
30-12
15 A
250 V
D
30-12
10 A
300 V
GOST
CCA
mm²/AWG/kcmil
Nominal voltage UN
4
250 V
GOST
Accessories
Accessories
Assembly
19.10.2012 Page 4 / 7
https://www.phoenixcontact.com/us/produkte/1705016
Single PCB terminal block - KDS 2,5 - 1705016
Accessories

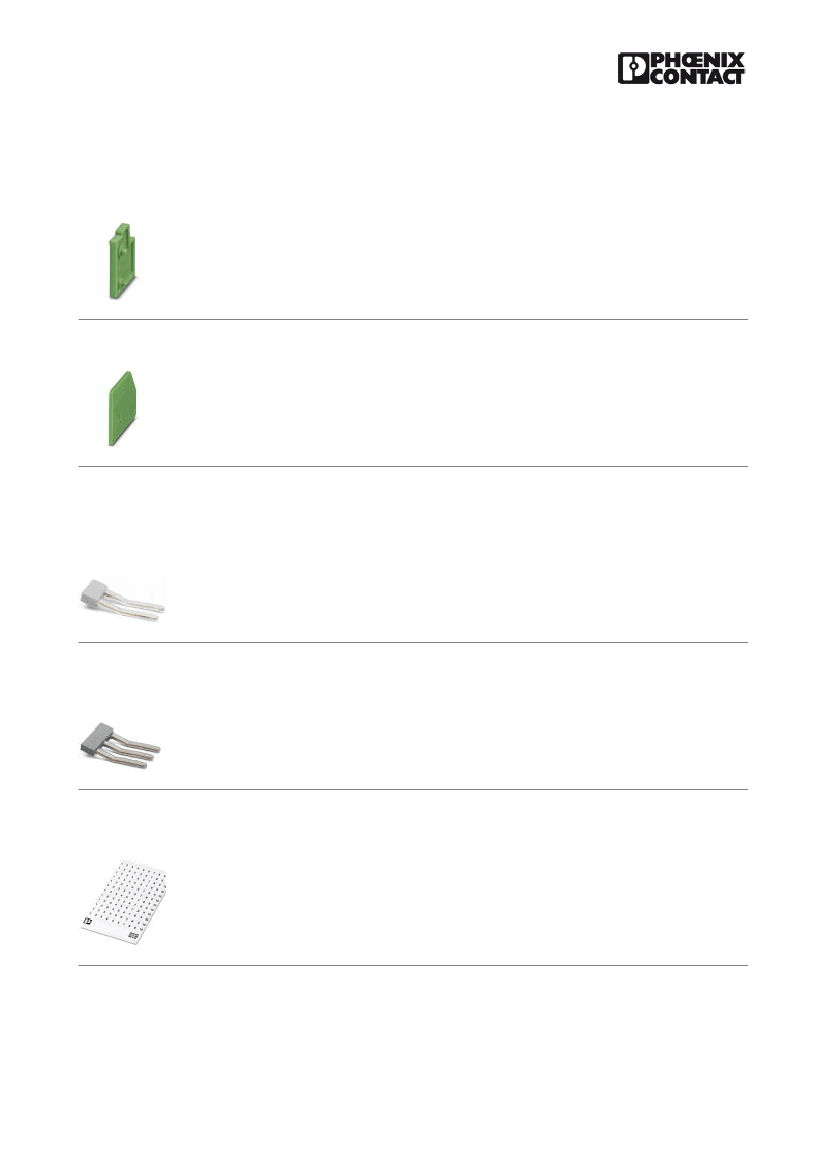

PCB terminal block - RZ-KDS 2,5 - 1705029
Pitch spacer, raises the pitch by 2.5 mm, interlocks with terminal block of the same shape, color: green
PCB terminal block - TP-KDS/GKDS - 1701793
PCB terminal block
Bridges
Insertion bridge - EBL 2- 5 - 2303145
Insertion bridge, Number of positions: 2, Color: gray
Insertion bridge - EBL 3- 5 - 2303158
Insertion bridge, Number of positions: 3, Color: gray
Marking
Marker cards - SK 5/3,8:FORTL.ZAHLEN - 0804183
Marker cards, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100,
Mounting type: Adhesive, For terminal block width: 5 mm
19.10.2012 Page 5 / 7
