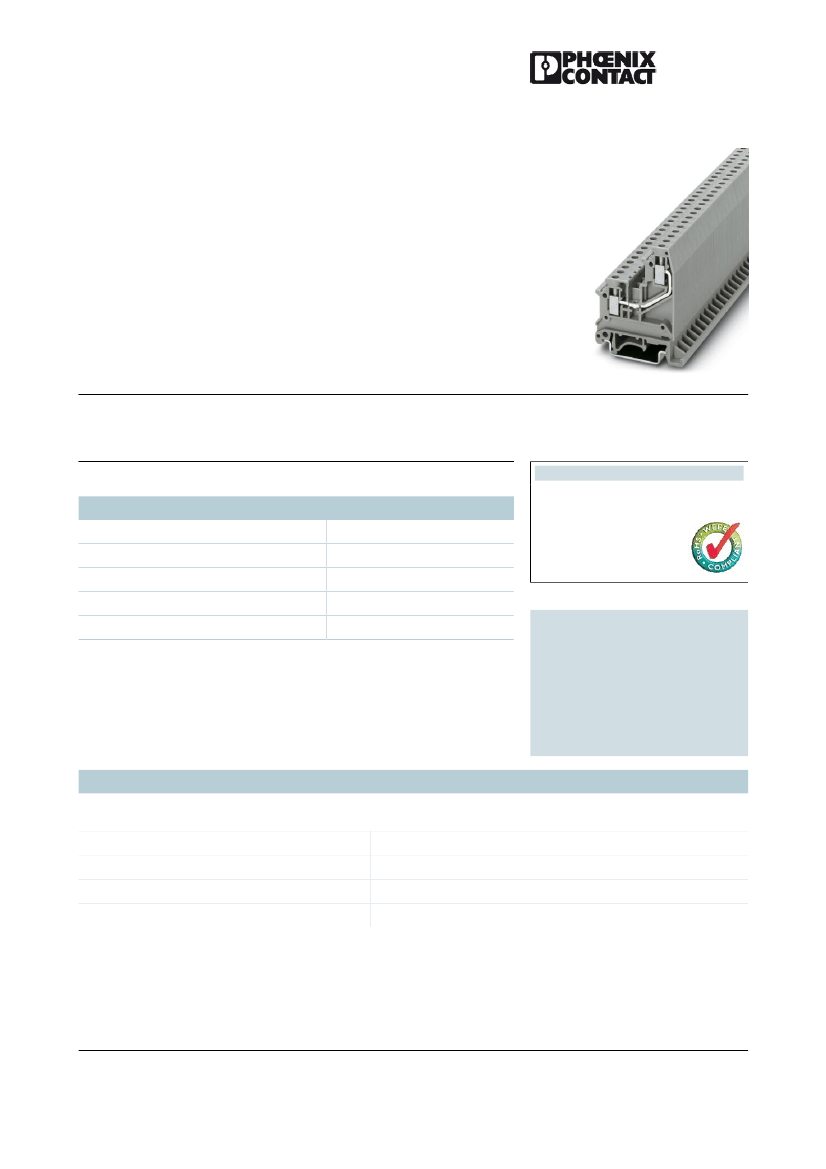

UK 5-RETURN
Order No.: 3002597
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3002597
Universal terminal block with screw connection, cross section: 0.2 mm
2
... 4 mm , AWG: 30 - 10, width: 6.2 mm, color: gray
2
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918090364
50 pcs.
85369010
0.01091 KG
Page 227 (CL-2005)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
01/01/2003
Technical data
General
Number of levels
Number of connections
Color
Insulating material
2
2
gray
PA
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 6
Mar 24, 2010
UK 5-RETURN
Order No.: 3002597
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3002597
Inflammability class acc. to UL 94
Dimensions
Length
Width
Height NS 35/7,5
Height NS 35/15
Height NS 32
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
V2
47.5 mm
6.2 mm
58.5 mm
66 mm
63.5 mm
6 kV
3
III
I
IEC / EN
41 A
500 V
0.2 mm²
6 mm²
0.2 mm²
4 mm²
24
10
0.25 mm²
4 mm²
0.25 mm²
2.5 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 6
Mar 24, 2010
UK 5-RETURN
Order No.: 3002597
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3002597
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Cross-section with insertion bridge, solid max.
Cross-section with insertion bridge, stranded max.
Type of connection
Stripping length
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
0.25 mm²
1.5 mm²
0.5 mm²
1.5 mm²
4 mm²
4 mm²
Screw connection
8 mm
M3
0.6 Nm
0.8 Nm
Certification
CSA
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
Accessories
Item
Assembly
3002542
ATP-UK 3-RETURN
Designation
CSA, DNV, GOST, LR, PRS, UL
300 V
40 A
28-10
300 V
30 A
30-10
Description
Partition plate, Length: 49.1 mm, Width: 1.5 mm, Height: 69.5 mm,
Color: gray
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 6
Mar 24, 2010
UK 5-RETURN
Order No.: 3002597
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3002597
3022218
CLIPFIX 35
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
End cover, Length: 47.5 mm, Width: 1.5 mm, Height: 58.5 mm,
Color: gray
End brackets, for supporting the ends of double-level and three-
level terminal blocks, width: 10 mm, color: gray
Cross connection rail, for fixed bridging of identical inputs and
outputs, made of Cu, nickel-plated, 1 m long
G rail 32 mm (NS 32)
G-profile DIN rail, deep-drawn, material: Copper, unperforated,
height 15 mm, width 32 mm, length 2 m
G-profile DIN rail, material: Copper, unperforated, height 15 mm,
width 32 mm, length 2 m
G-profile DIN rail, material: Steel, perforated, height 15 mm, width
32 mm, length 2 m
G-profile DIN rail, material: Steel, unperforated, height 15 mm,
width 32 mm, length 2 m
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Separating plate, Color: gray
3002539
1201413
0201595
1201028
1201280
1201358
1201002
1201015
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
3002526
Bridges
0201155
0201142
0201139
0203250
0201650
D-UK 3-RETURN
E/UK 1
FB-150 METER
NS 32 AL UNPERF 2000MM
NS 32 CU/120QMM UNPERF
2000MM
NS 32 CU/35QMM UNPERF
2000MM
NS 32 PERF 2000MM
NS 32 UNPERF 2000MM
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
TS-UK 3-RETURN
EB 2- 6
EB 3- 6
EB 10- 6
FBI 10- 6
FBI 100- 6
Cross connector/bridge, Number of positions: 2, Color: gray
Cross connector/bridge, Number of positions: 3, Color: gray
Cross connector/bridge, Number of positions: 10, Color: gray
Cross connector/bridge, Number of positions: 10, Color: silver
Cross connector/bridge, Number of positions: 100,
Color: aluminum
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 6
Mar 24, 2010
UK 5-RETURN
Order No.: 3002597
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3002597
0201867
1302338
0301505
0202280
0202358
0202293
0202303
0202345
0202316
Marking
1007222
1050499
FBI 20- 6
IS-K 4
ISSBI 10- 6
LB 10-6 BU
LB 10-6 GY
LB 10-6 RD
LB 100-6 BU
LB 100-6 GY
LB 100-6 RD
Cross connector/bridge, Number of positions: 20, Color: aluminum
Bridge bar isolator, Color: gray
Switching jumper, Number of positions: 10, Color: silver
Cross connector/bridge, Number of positions: 10, Color: blue
Cross connector/bridge, Number of positions: 10, Color: gray
Cross connector/bridge, Number of positions: 10, Color: red
Cross connector/bridge, Number of positions: 100, Color: blue
Cross connector/bridge, Number of positions: 100, Color: gray
Cross connector/bridge, Number of positions: 100, Color: red
SBS 6:UNBEDRUCKT
ZB 6:SO/CMS
Marker cards for modular terminal blocks, color: white
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Plug/Adapter
0309523
0301547
0601292
0201304
0201647
KSS 3- 6
KSS 6
PSB 3/10/4
PSBJ 3/13/4
RPS
Short circuit connector, Number of positions: 3, Color: black
Short circuit connector, Number of positions: 2, Color: black
Female test connector, Color: silver
Female test connector, Color: silver
Reducing plug, Color: gray
Diagrams/Drawings

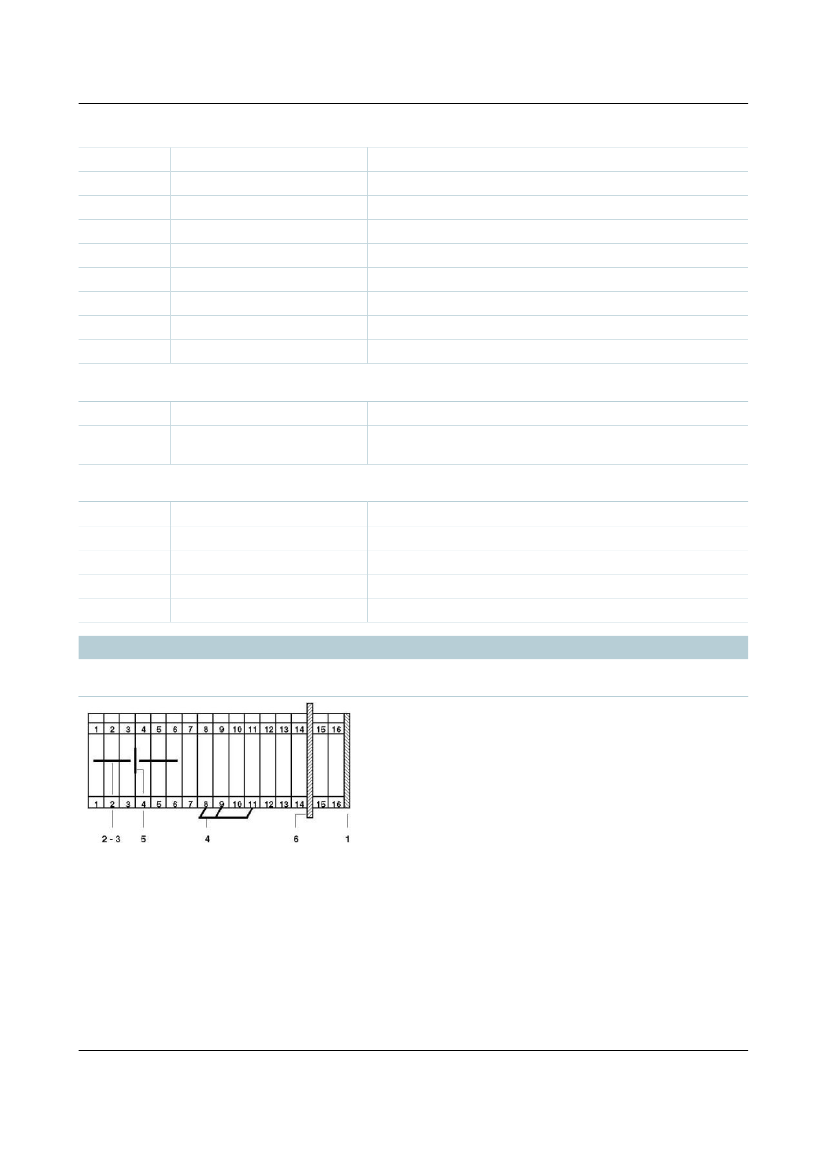

Circuit diagram
1 = cover
2 = fixed bridge, for cross-connections in the terminal center,
screw heads with insulating collar
3 = fixed bridge, for cross-connections in the terminal center, with
crimped-on rollers
4 = insertion bridge
5 = separating plate
6 = partition plate
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 6
Mar 24, 2010
