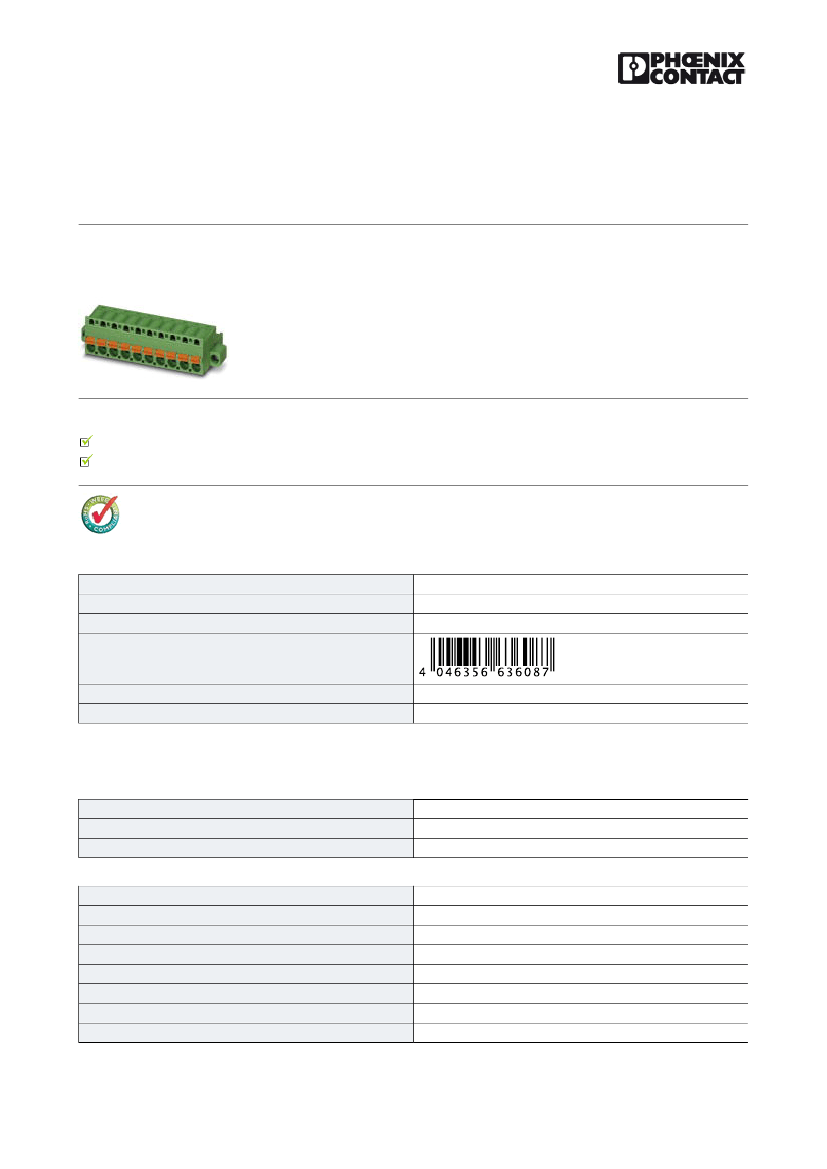

Printed-circuit board connector - FKC 2,5/10-STF-5,08
EX - 1796076
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Nominal current (Ex): 12 A,
Nominal voltage (Ex): 275 V, Number of positions: 10, Pitch: 5.08 mm, Connection method: Spring-
cage conn., Color: green, Contact surface: Tin
Why buy this product
Plug-in direction parallel to the conductor axis
Ex approval for voltages up to 176/275 V, observe voltage specifications for headers
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85366990
GERMANY
0
1
Page 345 (CC-2011)
Technical data
Dimensions / positions
Pitch
Dimension a
Number of positions
5.08 mm
45.72 mm
10
Technical data
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
FKC 2,5/..-STF-EX
I
4 kV
4 kV
4 kV
320 V
630 V
EN-VDE
07.09.2012 Page 1 / 3
https://www.phoenixcontact.com/us/produkte/1796076
Printed-circuit board connector - FKC 2,5/10-STF-5,08
EX - 1796076
Technical data
Technical data
Nominal current IN
Nominal voltage UN
Nominal cross section
Insulating material
Inflammability class according to UL 94
Internal cylindrical gage
Stripping length
12 A
250 V
2.5 mm²
PA
V0
A2
10 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
0.5 mm²
2.5 mm²
0.5 mm²
2.5 mm²
0.5 mm²
2.5 mm²
0.5 mm²
2.5 mm²
24
12
0.5 mm²
1 mm²
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
272607xx
27260701
27260701
27260701
27260704
27440402
etim
ETIM 4.0
EC002638
unspsc
UNSPSC 6.01
UNSPSC 7.0901
30211810
39121409
07.09.2012 Page 2 / 3
https://www.phoenixcontact.com/us/produkte/1796076
Printed-circuit board connector - FKC 2,5/10-STF-5,08
EX - 1796076
Classifications
unspsc
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
39121409
39121409
39121409
Drawings
Dimensioned drawing
25,6
4,74
a+5,7
15
8,3
5,08
5,08
a
© Phoenix Contact 2012 - all rights reserved
http://www.phoenixcontact.com
07.09.2012 Page 3 / 3
