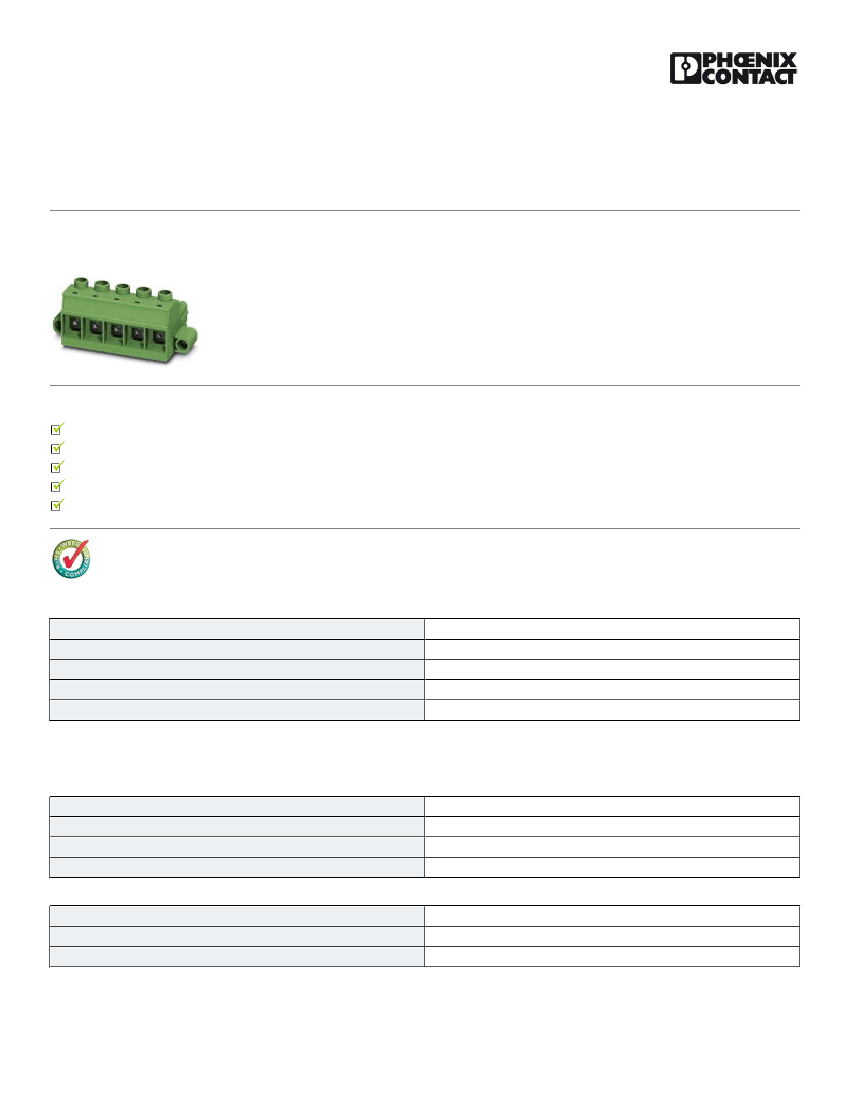

Printed-circuit board connector - PC 35 HC/ 3-STF-15,00 - 1762602
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 125 A, Rated voltage (III/2): 1000 V, Number of positions: 3, Pitch: 15 mm,
Connection method: Screw connection, Color: green, Contact surface: Silver
Product Features
Low insertion and withdrawal forces for user-friendly device connection
High-capacity plugs with a current carrying capacity of up to 125 A and a connection capacity of 35 mm², solid
Unlimited 600 V UL approval
Standard with screw flange for reliable connection even in applications subject to vibration
Maximum contact reliability due to integrated double steel spring
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
25 pc
104.0 g
85366990
Poland
Technical data
Dimensions
Length
Height
Pitch
Dimension a
50.3 mm
40 mm
15.00 mm
30 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
PC 35 HC/..-STF
I
8 kV
12/09/2015 Page 1 / 6
https://www.phoenixcontact.com/us/products/1762602
Printed-circuit board connector - PC 35 HC/ 3-STF-15,00 - 1762602
Technical data
General
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Stripping length
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
Note
8 kV
8 kV
1000 V
1000 V
1000 V
EN-VDE
125 A
35 mm²
125 A
PA
V0
20 mm
3
M5
2.5 Nm
4.5 Nm
Tightening torque ≤ 25 mm² is 2.5 Nm, > 25 mm² is 4.5 Nm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Conductor cross section AWG min.
Conductor cross section AWG max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.5 mm²
35 mm²
0.5 mm²
35 mm²
1 mm²
35 mm²
1.5 mm²
35 mm²
20
2
0.5 mm²
6 mm²
0.5 mm²
6 mm²
0.5 mm²
4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
12/09/2015 Page 2 / 6
https://www.phoenixcontact.com/us/products/1762602
Printed-circuit board connector - PC 35 HC/ 3-STF-15,00 - 1762602
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with plastic
6 mm²
sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
16
2
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CUL
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27260704
27440402
27440309
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002638
EC002638
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / VDE Gutachten mit Fertigungsüberwachung / CCA / IECEE CB Scheme / EAC / cULus Recognized
12/09/2015 Page 3 / 6
https://www.phoenixcontact.com/us/products/1762602
Printed-circuit board connector - PC 35 HC/ 3-STF-15,00 - 1762602
Approvals
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
16-12
20 A
600 V
B
16-2
115 A
600 V
C
16-2
115 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
16-12
20 A
600 V
B
16-2
105 A
600 V
C
16-2
105 A
600 V
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
0.5-35
125 A
1000 V
CCA
12/09/2015 Page 4 / 6
https://www.phoenixcontact.com/us/products/1762602
Printed-circuit board connector - PC 35 HC/ 3-STF-15,00 - 1762602
Approvals
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
125 A
1000 V
EAC
cULus Recognized

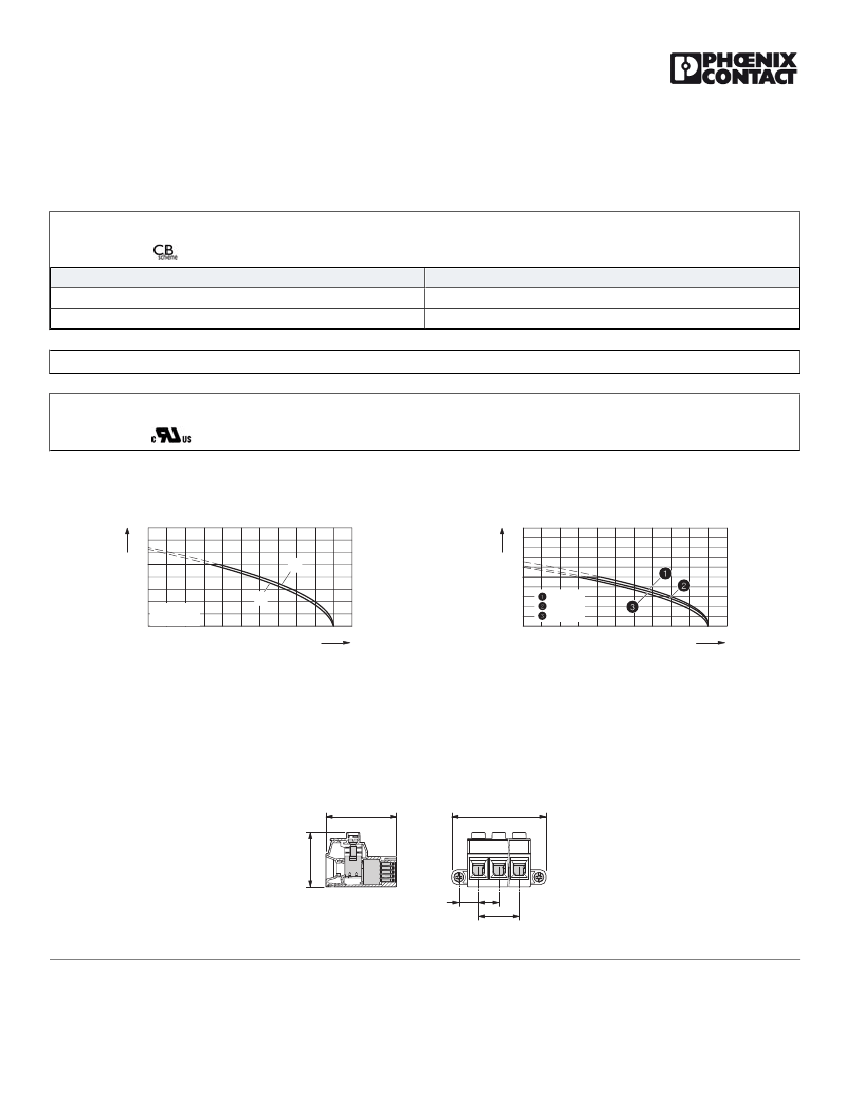

Drawings
Diagram
Current carrying capacity [A]
Current strength [A]
Diagram
250
225
200
175
150
125
100
75
50
25
0
0
200
150
1
100
50
0
0
1
= 2-pos.
2
= 6-pos.
2
20
40
60
80
100
= 2-pos.
= 4-pos.
= 6-pos.
20
40
60
80
100
Ambient temperature [°C]
Ambient temperature [°C]
Type: PC 35 HC/...-STF-15,00 with PC 35 HC/...-GF-15,00
PC 35 HC/..-STF-15,0 with IPC 35 HC/..-STGF-15,0
Derating curve, representation based on DIN EN 60512-5-2:2003-01
Connected conductor cross section = 35 mm²
Reduction factor = 0.8
Number of positions: see diagram
Dimensional drawing
a+39,4
52
40
14,5 15
a
12/09/2015 Page 5 / 6
