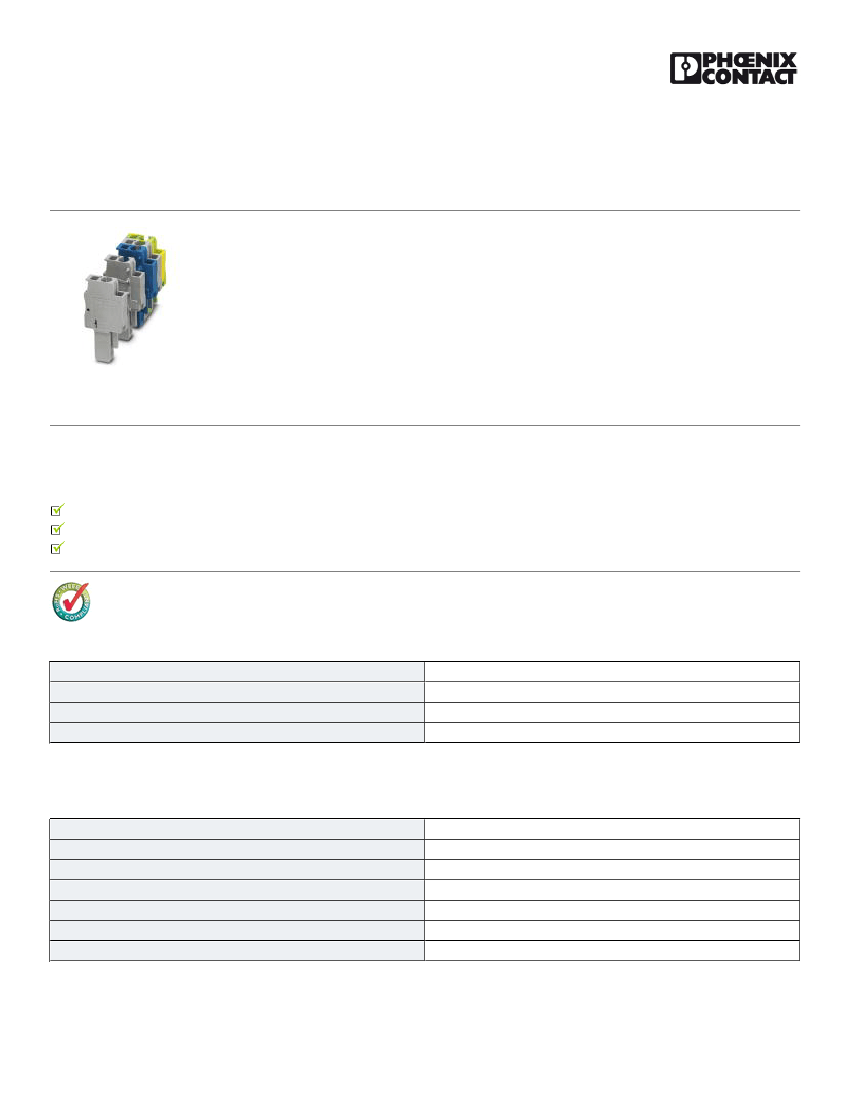

Plug - SPB 2,5/ 1-L BU - 3043116
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Plug, Connection method: Spring-cage connection, Number of positions: 1, Cross section: 0.08 mm² - 4 mm²,
AWG: 28 - 12, Width: 5.2 mm, Height: 39 mm, Color: blue
Illustration shows versions of the
SPB 2,5/1-... connector in various
colors
Product description
Connector element left, left housing without engagement pin, right opened without cover
Product Features
Plug with bridging option, for use with basic terminal blocks
The plug with spring-cage connection is assembled directly on site by snapping together single-position plug elements
The ST-COMBI plugs for self-assembly provide solutions that users can implement themselves
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
3.44 GRM
85366990
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
1
1
blue
PA
V0
24 A (with 2.5 mm² conductor cross section)
6 kV
12.11.2013 Page 1 / 16
https://www.phoenixcontact.com/us/products/3043116
Plug - SPB 2,5/ 1-L BU - 3043116
Technical data
General
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Number of positions
3
III
I
IEC 61984
24 A
500 V
nein
1
Dimensions
Width
Length
Height
5.2 mm
20 mm
39 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
0.08 mm²
4 mm²
28
12
0.08 mm²
2.5 mm²
28
14
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Spring-cage connection
10 mm
A3
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
272607xx
27260701
12.11.2013 Page 2 / 16
https://www.phoenixcontact.com/us/products/3043116
Plug - SPB 2,5/ 1-L BU - 3043116
Classifications
eCl@ss
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27260701
27260701
27141151
27141151
27141151
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC002021
EC002021
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / GOST / LR / GL / BV / DNV / RS / IECEE CB Scheme / GOST /
CSA / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
12.11.2013 Page 3 / 16
https://www.phoenixcontact.com/us/products/3043116
Plug - SPB 2,5/ 1-L BU - 3043116
Approvals
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-12
20 A
300 V
C
24-12
20 A
300 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
28-12
20 A
300 V
C
28-12
20 A
300 V
D
28-12
5A
600 V
VDE Gutachten mit Fertigungsüberwachung
mm²/AWG/kcmil
Nominal voltage UN
0.2-4
500 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
28-12
20 A
300 V
C
28-12
20 A
300 V
D
28-12
5A
600 V
GOST
LR
GL
12.11.2013 Page 4 / 16
https://www.phoenixcontact.com/us/products/3043116
Plug - SPB 2,5/ 1-L BU - 3043116
Approvals
BV
DNV
RS
IECEE CB Scheme
mm²/AWG/kcmil
Nominal voltage UN
0.2-4
500 V
GOST
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-12
20 A
300 V
C
24-12
20 A
300 V
D
24-12
5A
600 V
cULus Recognized
Accessories
Accessories
Bridge
12.11.2013 Page 5 / 16
