Feed-through terminal block - PT 1,5/S-TWIN BU - 3208168
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

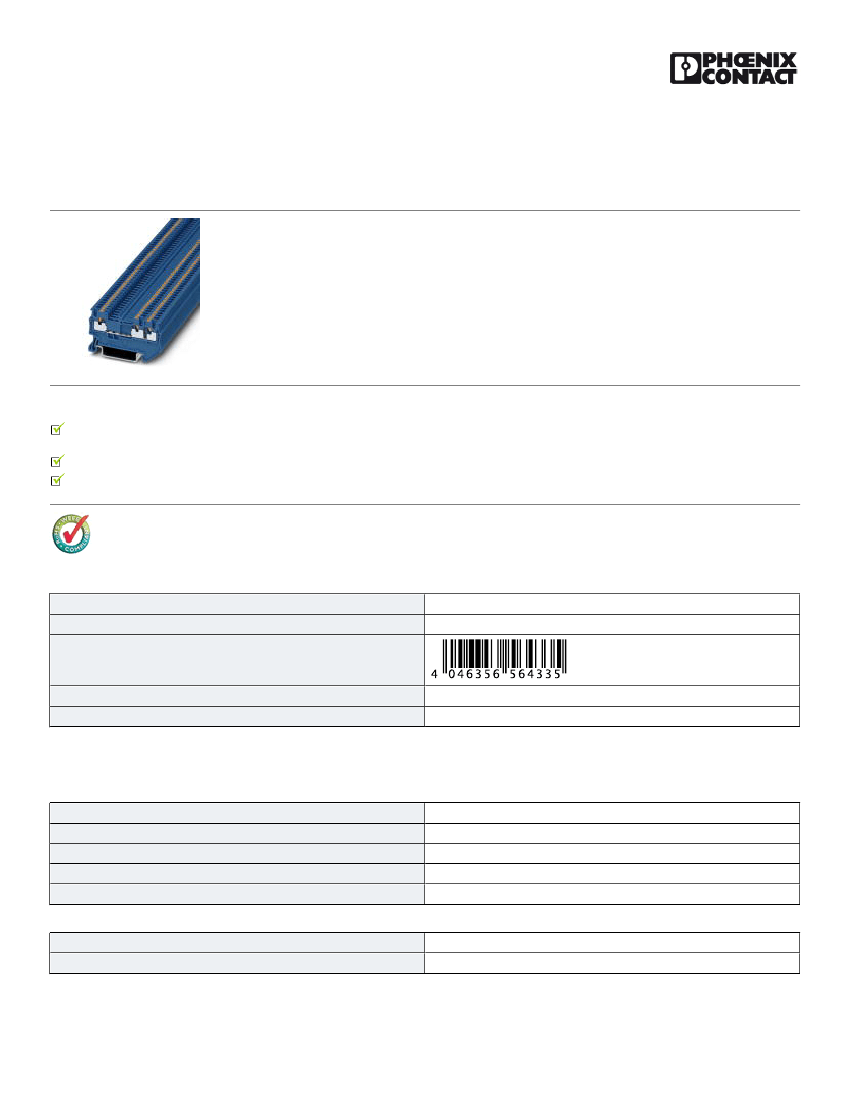

Feed-through terminal block, Connection method: Push-in connection, Cross section: 0.14 mm² - 1.5 mm²,
AWG: 26 - 14, Width: 3.5 mm, Color: blue, Mounting type: NS 35/7.5, NS 35/15
Product Features
The push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Key commercial data
Packing unit
Minimum order quantity
GTIN
Custom tariff number
Country of origin
85369010
GERMANY
1 PCE
50 PCE
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
1
3
blue
PA
V0
Dimensions
Width
Length
3.5 mm
54 mm
07.05.2013 Page 1 / 17
https://www.phoenixcontact.com/us/produkte/3208168
Feed-through terminal block - PT 1,5/S-TWIN BU - 3208168
Technical data
Dimensions
Height NS 35/7,5
Height NS 35/15
32 mm
39.5 mm
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
17.5 A (with 1.5 mm conductor cross section)
6 kV
3
III
I
IEC 60947-7-1
17.5 A
500 V
ja
2
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Connection method
Stripping length
Internal cylindrical gage
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
Push-in connection
8 mm
A1 / B1
Classifications
ETIM
ETIM 4.0
ETIM 5.0
EC000897
EC000897
07.05.2013 Page 2 / 17
https://www.phoenixcontact.com/us/produkte/3208168
Feed-through terminal block - PT 1,5/S-TWIN BU - 3208168
Classifications
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
39121410
39121410
39121410
30211811
39121410
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141121
27141121
27141125
27141125
27141125
27141125
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / CSA / LR / GL / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
07.05.2013 Page 3 / 17
https://www.phoenixcontact.com/us/produkte/3208168
Feed-through terminal block - PT 1,5/S-TWIN BU - 3208168
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
GOST
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
LR
GL
cULus Recognized
Accessories
Accessories
Assembly
Partition plate - ATP-ST-TWIN - 3030789
Partition plate, Length: 76.6 mm, Width: 2 mm, Height: 45 mm, Color: gray
07.05.2013 Page 4 / 17
https://www.phoenixcontact.com/us/produkte/3208168
Feed-through terminal block - PT 1,5/S-TWIN BU - 3208168
Accessories

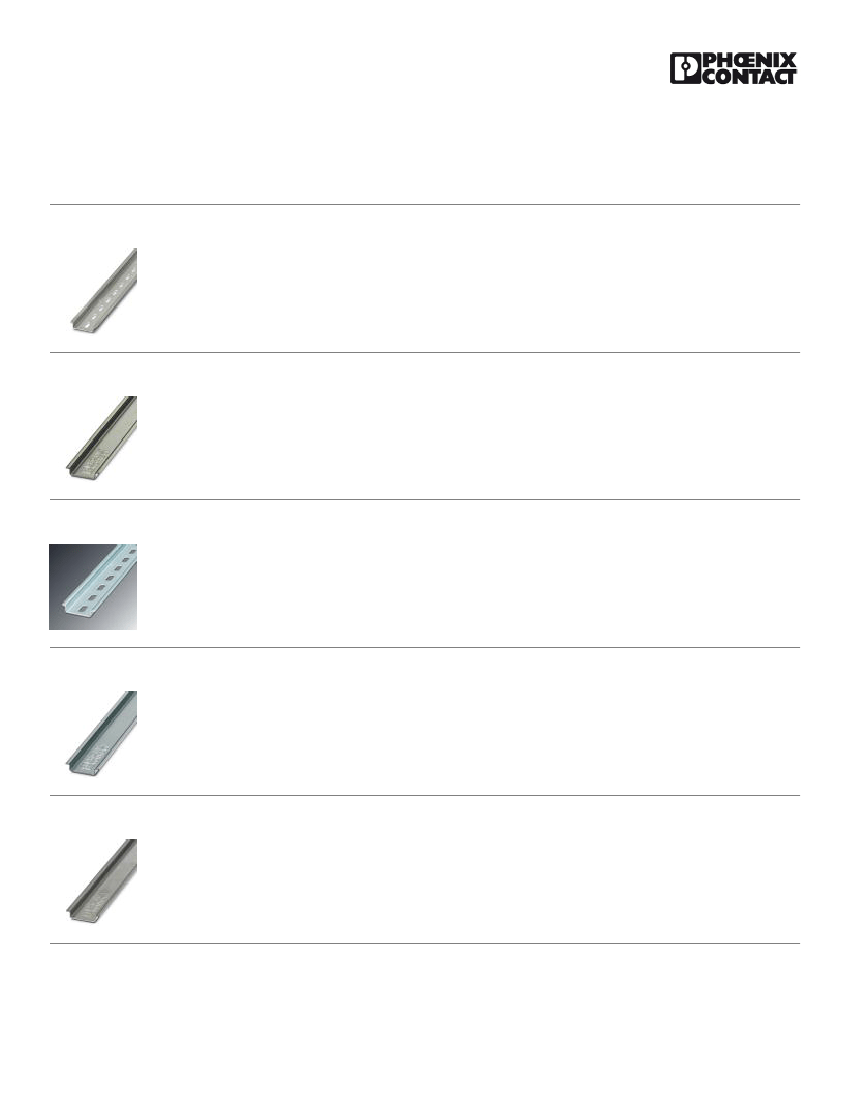

DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35 mm, length:
2000 mm
DIN rail - NS 35/ 7,5 UNPERF 2000MM - 0801681
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail - NS 35/ 7,5 WH PERF 2000MM - 1204119
DIN rail 35 mm (NS 35)
DIN rail - NS 35/ 7,5 WH UNPERF 2000MM - 1204122
DIN rail 35 mm (NS 35)
DIN rail, unperforated - NS 35/ 7,5 AL UNPERF 2000MM - 0801704
DIN rail, unperforated, Width: 35 mm, Height: 7.5 mm, Length: 2000 mm, Color: silver
07.05.2013 Page 5 / 17
