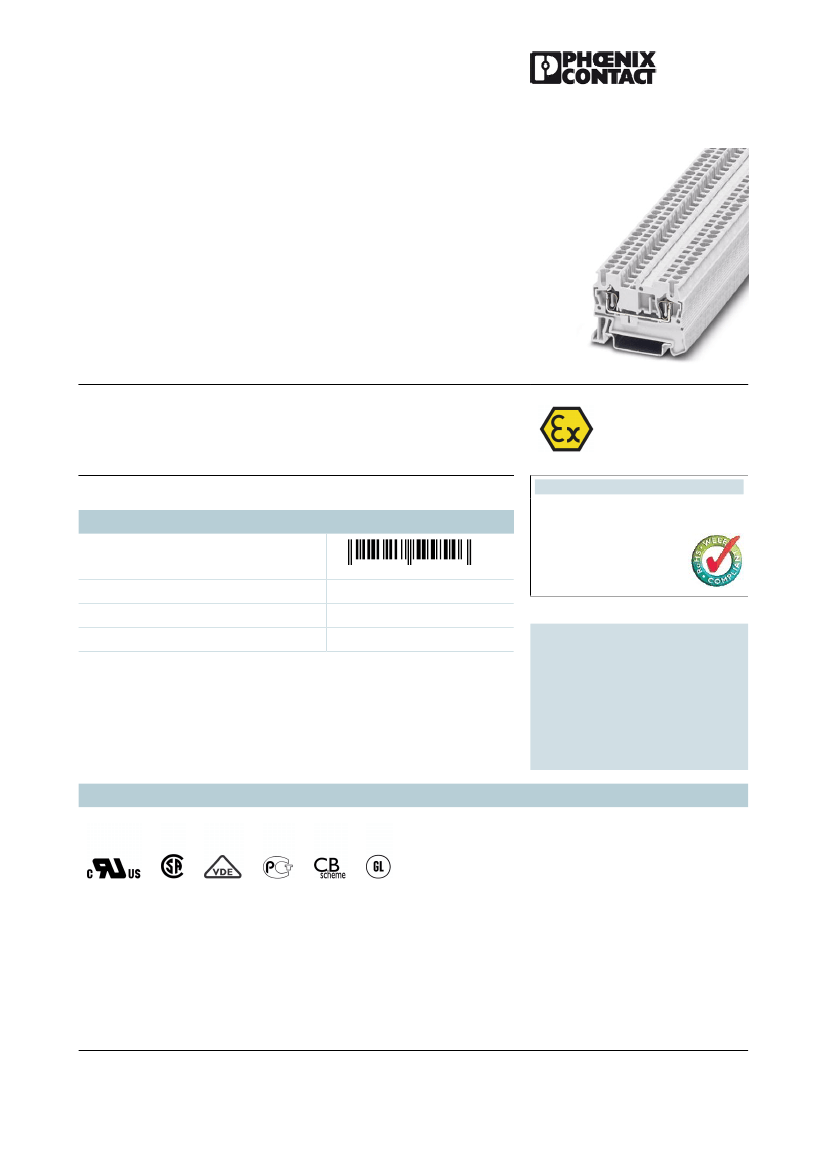

ST 2,5 WH
Order No.: 3037119
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3037119
Feed-through modular terminal block, Type of connection: Spring-cage
connection, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12, Width: 5.2
mm, Color: white, Mounting type: NS 35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
4
017918
599546
WEEE/RoHS-compliant since:
01/01/2003
sales group
Pack
Customs tariff
A600
50 pcs.
85369010
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Certificates / Approvals
Certification
BV, CB, CSA, CUL, DNV, GL, GOST, LR, NK, UL, VDE-PZI
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 4
Feb 10, 2011
ST 2,5 WH
Order No.: 3037119
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3037119
Certification Ex:
IECEx, KEMA-EX
Accessories
Item
Assembly
3030721
3022218
ATP-ST 4
CLIPFIX 35
Partition plate, Length: 61 mm, Width: 2 mm, Height: 42 mm,
Color: gray
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
End cover, Length: 48.6 mm, Width: 2.2 mm, Height: 29.1 mm,
Color: gray
End clamp, for assembly on NS 32 or NS 35/7.5 DIN rail
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Designation
Description
3030417
1201442
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
D-ST 2,5
E/UK
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
Bridges
3030161
3030174
3030187
3030190
3030213
3030226
FBS 2-5
FBS 3-5
FBS 4-5
FBS 5-5
FBS 10-5
FBS 20-5
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 4
Feb 10, 2011
ST 2,5 WH
Order No.: 3037119
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3037119
Marking
3030941
1050295
0803647
WST 2,5
ZB 5:SO/CMS
ZBFM 5:SO/CMS
Warning cover, 5-pos., for terminal width: 5.2 mm
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Special printing, Zack marker sheet, flat, 120-section, divisible,
marking according to customer requirements
Plug/Adapter
3002843
3002856
3002869
0201744
3030925
3030983
0201647
Tools
1204517
SZF 1-0,6X3,5
Actuation tool, for ST terminal blocks, also suitable for use as a
bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip,
with non-slip grip
ISH 2,5/0,2
ISH 2,5/0,5
ISH 2,5/1,0
MPS-MT
PAI-4
PS-5
RPS
Insulation stop sleeve, Color: white
Insulation stop sleeve, Color: gray
Insulation stop sleeve, Color: black
Test plugs
Test adapter, Color: gray
Test adapter, Color: red
Reducing plug, Color: gray

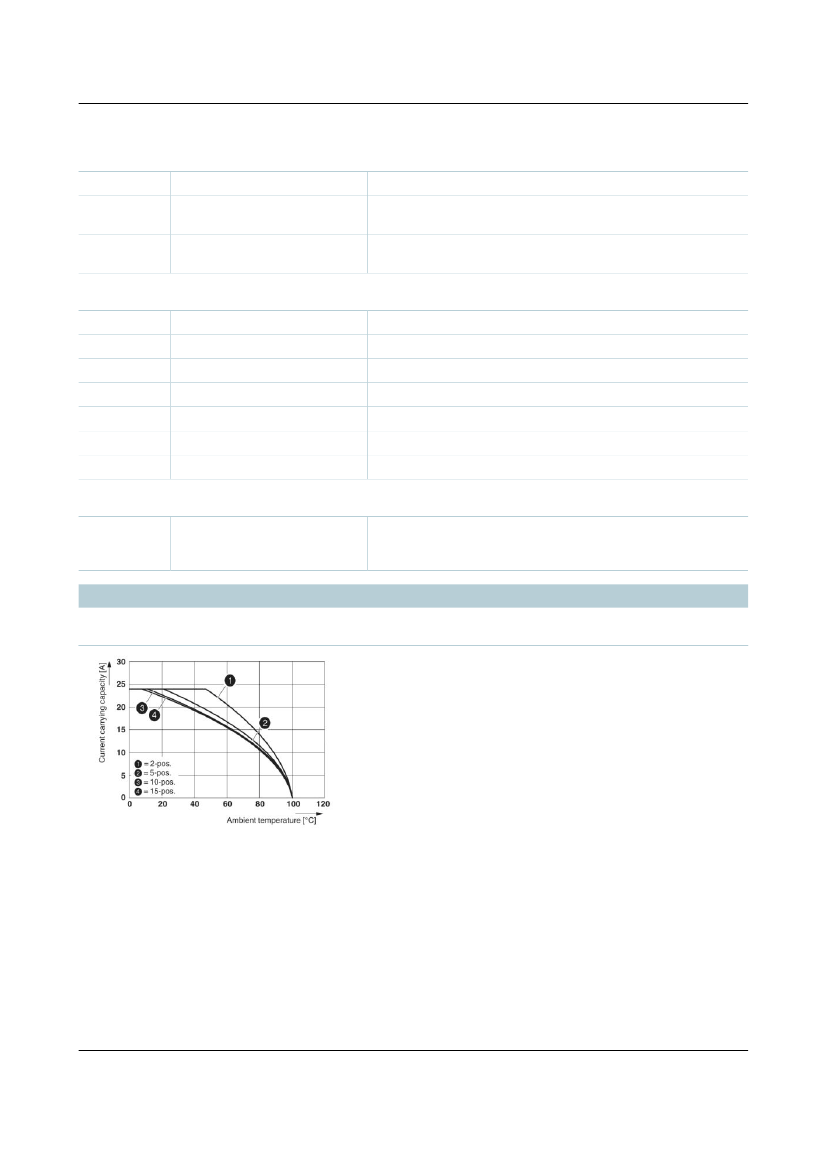

Diagrams/Drawings
Diagram
The figure shows the derating curve of the ST 2,5... terminal
block in connection with the SP 2,5 connector
