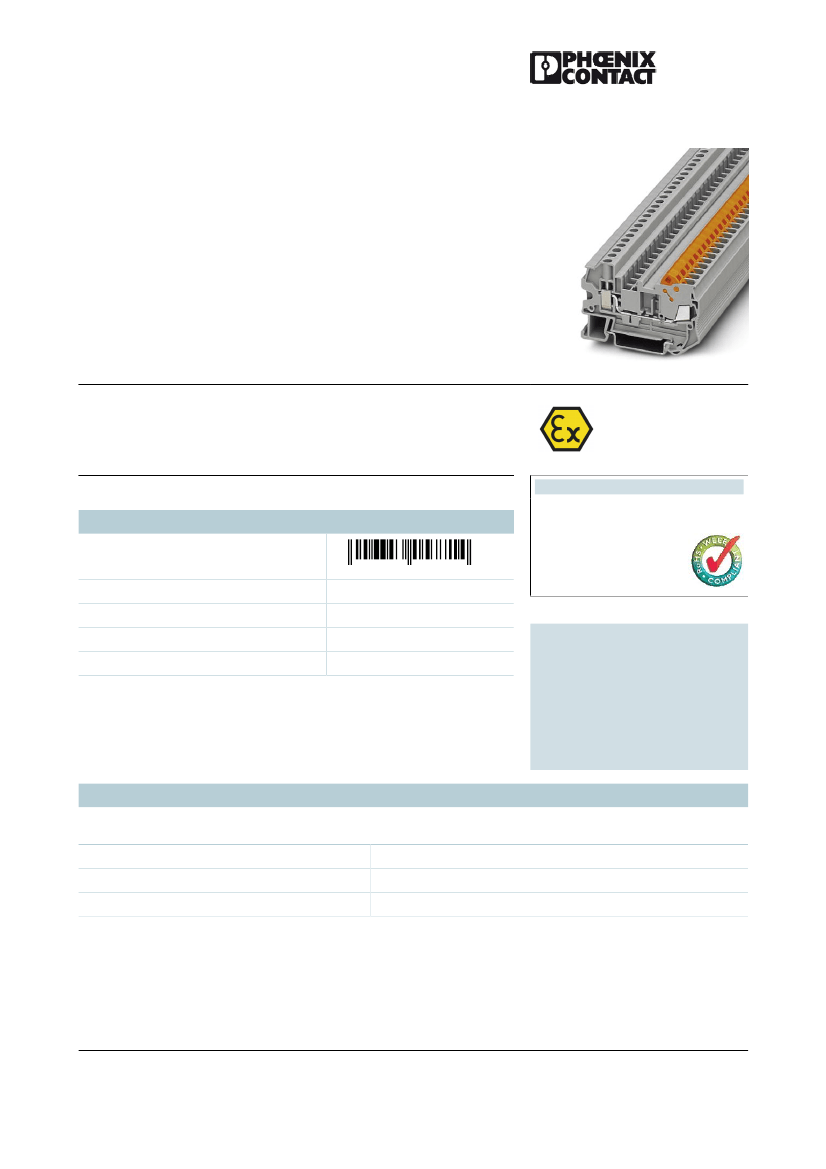

Extract from the online
catalog
QTCU 2,5
Order No.: 3206539
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3206539
Feed-through modular terminal block, Connection type: Quick
connection, Screw connection, Cross-section: 0.5 mm² - 2.5 mm²,
Width: 6.2 mm, Color: gray, Mounting: NS 35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
4
046356
057714
WEEE/RoHS-compliant since:
01/05/2005
sales group
Pack
Customs tariff
Catalog page information
A701
50 pcs.
85369010
Page 230 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
1
2
gray
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 1, 2011
QTCU 2,5
Order No.: 3206539
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3206539
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
End cover width
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Type of connection
Material wire insulation
Certificates / Approvals
PA
V0
6.2 mm
62.6 mm
42.8 mm
50.3 mm
2.2 mm
24 A (with 2.5 mm conductor cross section)
8 kV
3
III
I
IEC 60947-7-1
24 A
800 V
2
0.5 mm²
2.5 mm²
0.5 mm²
2.5 mm²
20
14
Quick connection
PVC / PE
Certification
Certification Ex:
ABS, BV, CUL, DNV, GL, NK, UL
IECEx, KEMA-EX
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 1, 2011
QTCU 2,5
Order No.: 3206539
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3206539
Accessories
Item
Assembly
3206209
3022218
ATP-QTC
CLIPFIX 35
Partition plate, Length: 64.4 mm, Width: 2 mm, Height: 46 mm,
Color: gray
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
Snap-on end bracket, for NS 35/7.5 or NS 35/15 DIN rail, can be
fitted with Zack strip ZB 5 and ZBF 5, terminal strip marker KLM
2 and KLM, parking facility for FBS...5, FBS...6, KSS 5, KSS 6,
width: 5,15 mm, color: gray
End cover, Length: 62.6 mm, Width: 2.2 mm, Color: gray
End clamp, for assembly on NS 32 or NS 35/7.5 DIN rail
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Designation
Description
3022276
CLIPFIX 35-5
3206597
1201442
0801762
0801733
0801681
1201756
1201895
1201714
1201798
D-QTCU 2,5
E/UK
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
Bridges
3030336
3030242
3030255
3030349
3030271
3030365
3032224
FBS 2-6
FBS 3-6
FBS 4-6
FBS 5-6
FBS 10-6
FBS 20-6
FBS 50-6
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge, Number of positions: 50, Color: red
