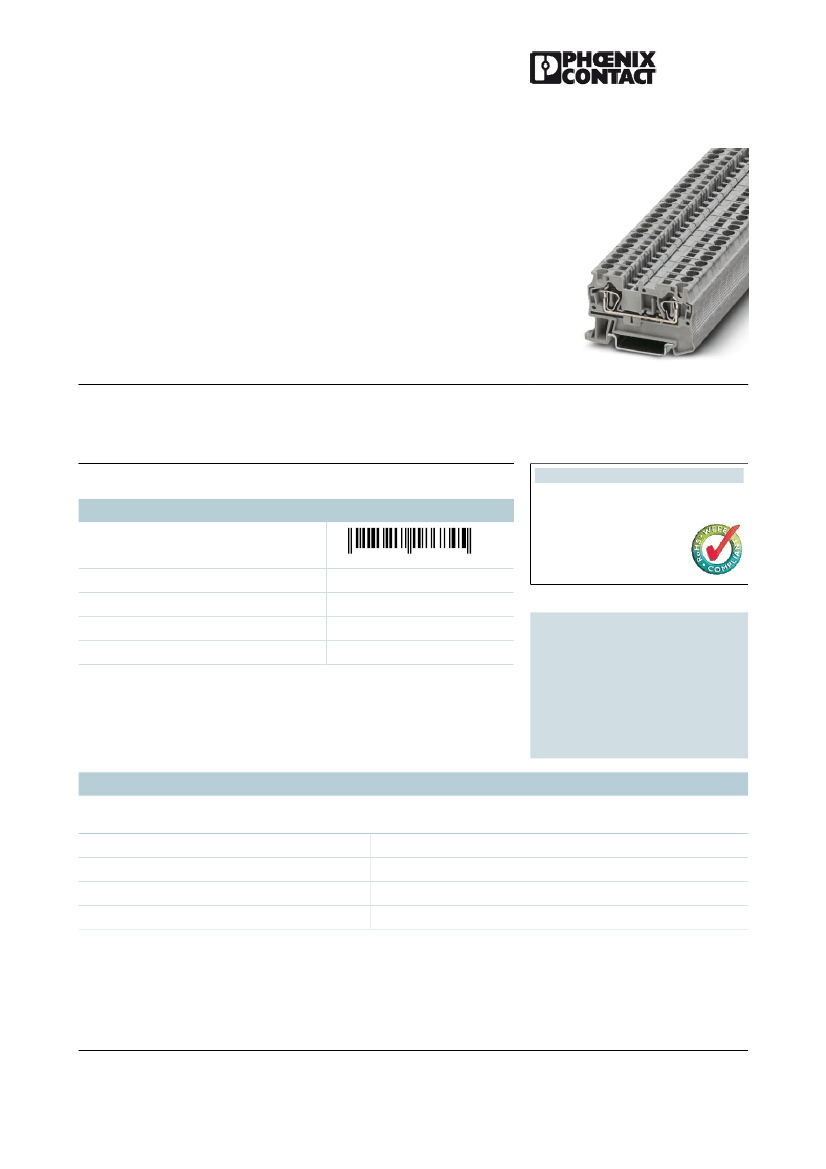

ST 4 BU
Order No.: 3031377
The illustration shows version ST 4 in gray
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3031377
Feed-through modular terminal block, Type of connection: Spring-cage
connection, Cross section: 0.08 mm² - 6 mm², AWG 28 - 10, Width: 6.2
mm, Color: blue, Mounting type: NS 35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
4
017918
186845
WEEE/RoHS-compliant since:
01/01/2003
sales group
Pack
Customs tariff
Catalog page information
A600
50 pcs.
85369010
Page 75 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
Insulating material
1
2
blue
PA
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 6
Feb 9, 2011
ST 4 BU
Order No.: 3031377
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3031377
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Type of connection
V0
6.2 mm
56 mm
36.5 mm
44 mm
40 A (with 6 mm conductor cross section)
8 kV
3
III
I
IEC 60947-7-1
32 A
800 V
ja
2
0.08 mm²
6 mm²
0.08 mm²
4 mm²
28
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.5 mm²
1 mm²
Spring-cage connection
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 6
Feb 9, 2011
ST 4 BU
Order No.: 3031377
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3031377
Stripping length
Internal cylindrical gage
Certificates / Approvals
10 mm
A4
Certification
ABS, BV, CB, CSA, CUL, DNV, GL, GOST, KR, LR, NK, UL,
VDE-PZI
IECEx, KEMA-EX
Certification Ex:
Accessories
Item
Assembly
3030721
3022218
ATP-ST 4
CLIPFIX 35
Partition plate, Length: 61 mm, Width: 2 mm, Height: 42 mm,
Color: gray
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
End cover, Length: 56 mm, Width: 2.2 mm, Height: 36.5 mm,
Color: gray
End clamp, for assembly on NS 32 or NS 35/7.5 DIN rail
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Designation
Description
3030420
1201442
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
D-ST 4
E/UK
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 6
Feb 9, 2011
ST 4 BU
Order No.: 3031377
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3031377
Bridges
3030336
3030242
3030255
3030349
3030271
3030365
Marking
3030954
1050499
0803650
WST 4
ZB 6:SO/CMS
ZBFM 6:SO/CMS
Warning cover, 5-pos., for terminal width: 6.2 mm
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
Special printing, Zack marker sheet, flat, 100-section, divisible,
marking according to customer requirements
FBS 2-6
FBS 3-6
FBS 4-6
FBS 5-6
FBS 10-6
FBS 20-6
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
Plug/Adapter
3002885
3002898
0201744
3030925
3030996
0201647
Tools
1204517
SZF 1-0,6X3,5
Actuation tool, for ST terminal blocks, also suitable for use as a
bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip,
with non-slip grip
ISH 4/0,5
ISH 4/1,0
MPS-MT
PAI-4
PS-6
RPS
Insulating sleeve, Color: gray
Insulating sleeve, Color: black
Test plugs
Test adapter, Color: gray
Test adapter, Color: red
Reducing plug, Color: gray
Diagrams/Drawings
Diagram

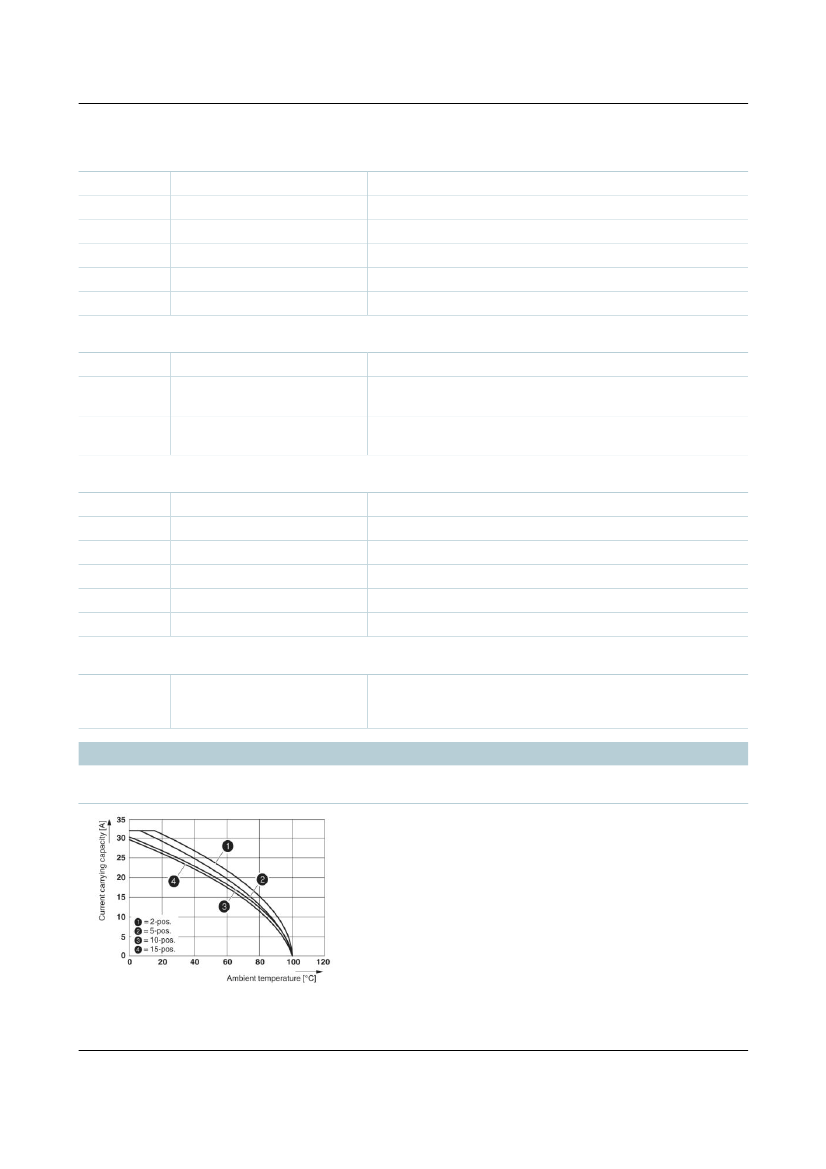

The figure shows the derating curve of the ST 4... terminal
block in connection with the SP 4 connector
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 6
Feb 9, 2011
ST 4 BU
Order No.: 3031377
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3031377
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 6
Feb 9, 2011
