Feed-through terminal block - PT 1,5/S-QUATTRO/2P - 3212390
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

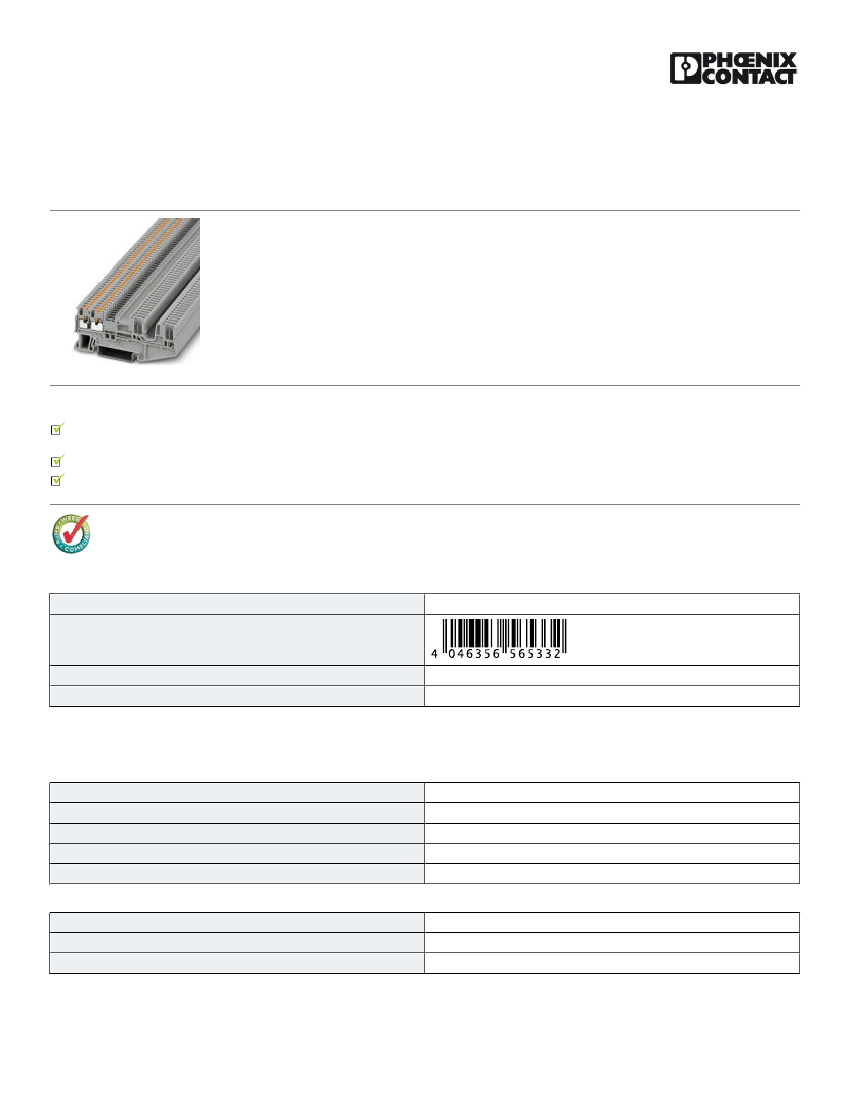

Feed-through terminal block, Connection method: Push-in / plug connection, Cross section: 0.14 mm² - 1.5 mm²,
AWG: 26 - 14, Width: 3.5 mm, Color: gray, Mounting type: NS 35/7.5, NS 35/15
Product Features
The push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring
of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection
Key commercial data
Packing unit
GTIN
Custom tariff number
Country of origin
85369010
POLAND
1 PCE
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
1
4
gray
PA
V0
Dimensions
Width
Length
Height NS 35/7,5
3.5 mm
78.5 mm
32 mm
07.05.2013 Page 1 / 23
https://www.phoenixcontact.com/us/produkte/3212390
Feed-through terminal block - PT 1,5/S-QUATTRO/2P - 3212390
Technical data
Dimensions
Height NS 35/15
39.5 mm
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Insertion/withdrawal cycles mechanical
Surge voltage test setpoint
Result of surge voltage test
Tight fit on carrier
Setpoint
Result of tight fit test
Conductor cross section short circuit testing
Short-time current
Short circuit stability result
Proof of thermal characteristics (needle flame) effective duration
Result of thermal test
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Oscillation, broadband noise test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
17.5 A (with 1.5 mm conductor cross section)
6 kV
3
III
I
IEC 61984
17.5 A (observe derating)
500 V
ja
100
7.3 kV
Test passed
NS 35
1N
Test passed
1.5 mm²
0.18 kA
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, on vehicle body
f
1
= 5 Hz to f
2
= 150 Hz
1.857 (m/s ) /Hz
0.8 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
07.05.2013 Page 2 / 23
2 2
2
https://www.phoenixcontact.com/us/produkte/3212390
Feed-through terminal block - PT 1,5/S-QUATTRO/2P - 3212390
Technical data
Technical data
Shock test result
Temperature index, insulating material (DIN EN 60216-1 (VDE 0304-21))
Static insulating material application in cold
Test passed
130 °C
-60 °C
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Connection method
Stripping length
Internal cylindrical gage
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
Push-in / plug connection
8 mm
A1 / B1
Classifications
ETIM
ETIM 4.0
ETIM 5.0
EC000897
EC000897
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
39121410
39121410
39121410
30211811
39121410
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
27141124
27141124
27141124
07.05.2013 Page 3 / 23
https://www.phoenixcontact.com/us/produkte/3212390
Feed-through terminal block - PT 1,5/S-QUATTRO/2P - 3212390
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141124
27141124
27141124
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / GL / LR / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
GOST
07.05.2013 Page 4 / 23
https://www.phoenixcontact.com/us/produkte/3212390
Feed-through terminal block - PT 1,5/S-QUATTRO/2P - 3212390
Approvals
GL
LR
cULus Recognized

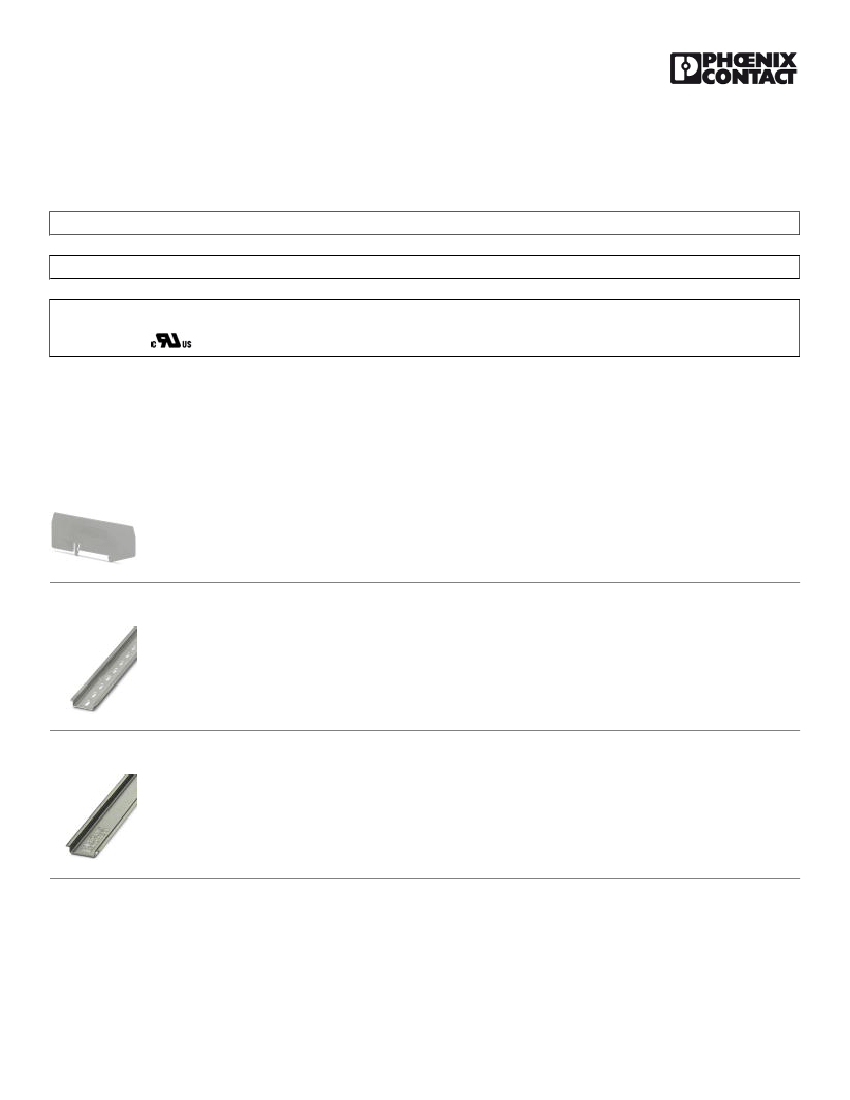

Accessories
Accessories
Assembly
Partition plate - ATP-ST QUATTRO - 3030815
Partition plate, Length: 90.9 mm, Width: 2 mm, Height: 45 mm, Color: gray
DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35 mm, length:
2000 mm
DIN rail - NS 35/ 7,5 UNPERF 2000MM - 0801681
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35 mm, length: 2 m
07.05.2013 Page 5 / 23
