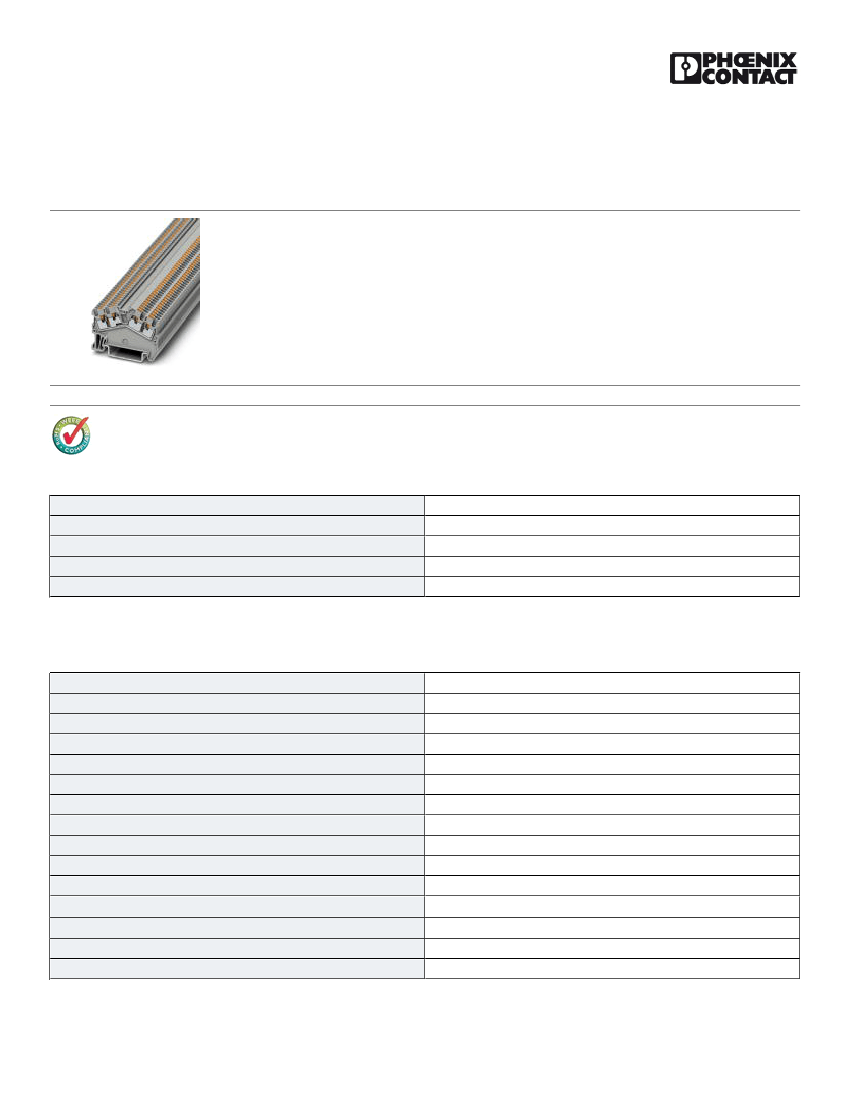

Feed-through terminal block - PTS 1,5/S-QUATTRO - 3214615
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Feed-through terminal block, Connection method: Push-in connection, Cross section: 0.14 mm² - 1.5 mm²,
AWG: 26 - 14, Width: 3.5 mm, Height: 37 mm, Color: gray, Mounting type: NS 35/7,5, NS 35/15
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 PCE
50 PCE
0.24 GRM
85369010
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Shock protection test specification
1
4
gray
PA
V0
17.5 A (with 1.5 mm² conductor cross section)
6 kV
3
III
I
IEC 60947-7-1
17.5 A
500 V
ja
DIN EN 50274 (VDE 0660-514):2002-11
21.11.2013 Page 1 / 16
https://www.phoenixcontact.com/us/products/3214615
Feed-through terminal block - PTS 1,5/S-QUATTRO - 3214615
Technical data
General
Back of the hand protection
Finger protection
Surge voltage test setpoint
Result of surge voltage test
Power frequency withstand voltage setpoint
Result of power-frequency withstand voltage test
Checking the mechanical stability of terminal points (5 x conductor
connection)
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
Result of bending test
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Tensile test result
Tight fit on carrier
Setpoint
Result of tight fit test
Requirements, voltage drop
Result of voltage drop test
Temperature-rise test
Conductor cross section short circuit testing
Short-time current
Short circuit stability result
Ageing test for screwless modular terminal block temperature cycles
Result of aging test
Proof of thermal characteristics (needle flame) effective duration
Result of thermal test
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
guaranteed
guaranteed
7.3 kV
Test passed
1.89 kV
Test passed
Test passed
10 rpm
135
0,14 mm²/0,2 kg
1.5 mm² / 0.4 kg
Test passed
0.14 mm²
10 N
1.5 mm²
40 N
Test passed
NS 35
1N
Test passed
≤ 3.2 mV
Test passed
Test passed
1.5 mm²
0.18 kA
Test passed
192
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
1.857 (m/s ) /Hz
0.8 g
5h
21.11.2013 Page 2 / 16
2 2
https://www.phoenixcontact.com/us/products/3214615
Feed-through terminal block - PTS 1,5/S-QUATTRO - 3214615
Technical data
General
Test directions
Oscillation, broadband noise test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Shock test result
Temperature index, insulating material (DIN EN 60216-1 (VDE 0304-21))
Static insulating material application in cold
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
Test passed
130 °C
-60 °C
Dimensions
Width
Length
Height
Height NS 35/7,5
Height NS 35/15
3.5 mm
50.7 mm
37 mm
38.5 mm
46 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Connection method
Stripping length
Internal cylindrical gage
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
26
14
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
Push-in connection
8 mm
A1 / B1
21.11.2013 Page 3 / 16
https://www.phoenixcontact.com/us/products/3214615
Feed-through terminal block - PTS 1,5/S-QUATTRO - 3214615
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141120
27141120
27141120
27141120
27141120
27141120
27141120
ETIM
ETIM 4.0
ETIM 5.0
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / LR / CSA / GOST / GL / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
21.11.2013 Page 4 / 16
https://www.phoenixcontact.com/us/products/3214615
Feed-through terminal block - PTS 1,5/S-QUATTRO - 3214615
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
LR
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
GOST
GL
cULus Recognized
Accessories
Accessories
21.11.2013 Page 5 / 16
