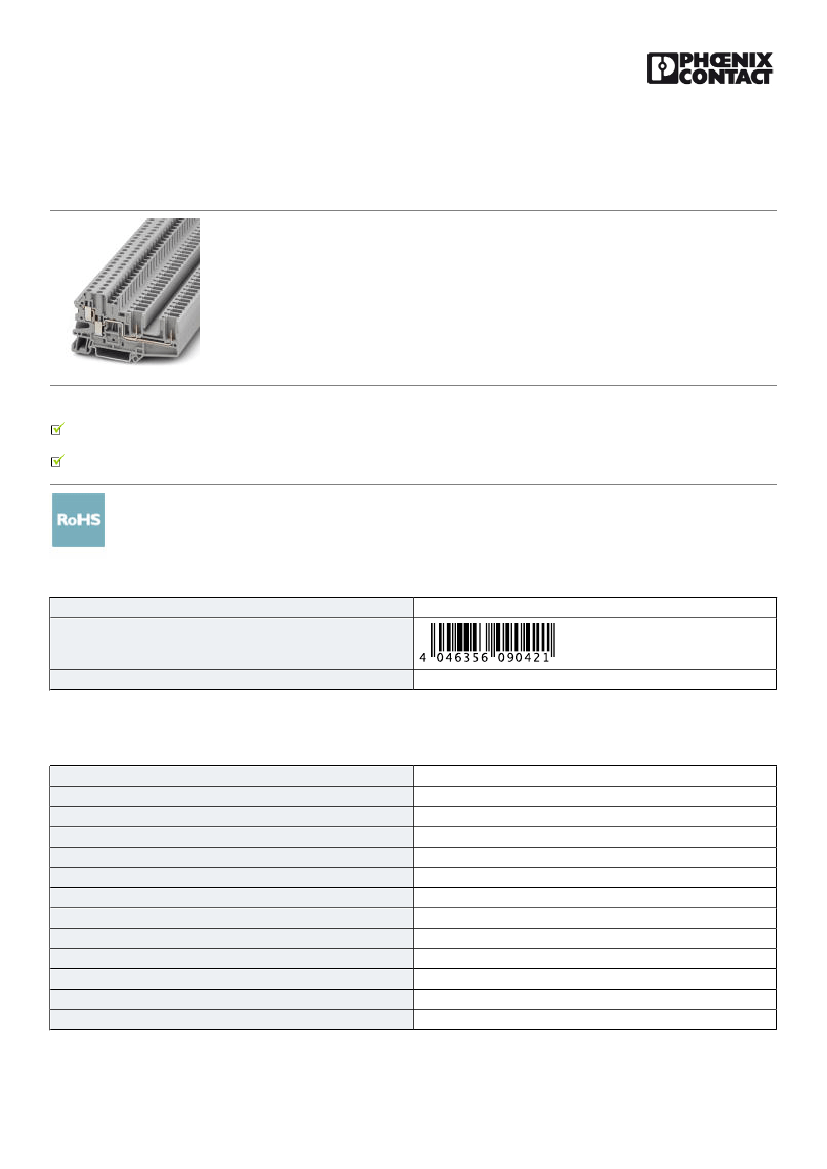

Feed-through terminal block - UT 4-QUATTRO/ 2P - 3060296
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, nom. voltage: 500 V, nominal current: 32 A, connection method: Screw/plug-in
connection, number of connections: 4, cross section:0.14 mm² - 6 mm², AWG: 26 - 10, width: 6.2 mm, color:
gray, mounting type: NS 35/7,5, NS 35/15
Your advantages
Plugs with different conductor exit directions (lateral or upwards) enable practical, efficient wiring. This results in a high degree of flexibility,
which is required in various areas of application.
Screw flanges for securely latching plugs
Key Commercial Data
Packing unit
GTIN
GTIN
4046356090421
50 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
1
4
1
4 mm²
gray
PA
V0
6 kV
3
III
I
1.02 W
32 A (with 6 mm² conductor cross section)
11/15/2018 Page 1 / 6
https://www.phoenixcontact.com/pi/products/3060296
Feed-through terminal block - UT 4-QUATTRO/ 2P - 3060296
Technical data
General
Nominal current I
N
Nominal voltage U
N
Open side panel
Insertion/withdrawal cycles mechanical
Result of surge voltage test
Surge voltage test setpoint
Result of tight fit on support
Tight fit on carrier
Setpoint
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
32 A (observe derating)
500 V
Yes
100
Test passed
7.3 kV
Test passed
NS 35
1N
Test passed
4 mm²
0.48 kA
Test passed
30 s
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 1, class B, body mounted
f
1
= 5 Hz to f
2
= 150 Hz
0.02 g²/Hz
0,8 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
5g
30 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
11/15/2018 Page 2 / 6
https://www.phoenixcontact.com/pi/products/3060296
Feed-through terminal block - UT 4-QUATTRO/ 2P - 3060296
Technical data
General
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
2.2 mm
82.4 mm
47.5 mm
55 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Stripping length
Internal cylindrical gage
Screw thread
Screw/plug-in connection
IEC 61984
0.14 mm²
6 mm²
26
10
0.14 mm²
6 mm²
26
10
0.14 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.5 mm²
1 mm²
0.14 mm²
1.5 mm²
9 mm
A4
M3
11/15/2018 Page 3 / 6
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
https://www.phoenixcontact.com/pi/products/3060296
Feed-through terminal block - UT 4-QUATTRO/ 2P - 3060296
Technical data
Connection data
Tightening torque, min
Tightening torque max
0.6 Nm
0.8 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
CSA
IEC 61984
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
Current strength [A]
Diagram
= 2-pos.
= 5-pos.
= 6-pos.
= 10-pos.
= 15-pos.
0
0
20
40
60
80
100
Ambient temperature [°C]
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / EAC / EAC / cULus Recognized
Ex Approvals
Approval details
11/15/2018 Page 4 / 6
https://www.phoenixcontact.com/pi/products/3060296
Feed-through terminal block - UT 4-QUATTRO/ 2P - 3060296
Approvals
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
D
300 V
10 A
26-10
http://www.csagroup.org/services-industries/product-listing/
B
300 V
30 A
26-10
C
150 V
30 A
26-10
13631
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
30 A
26-10
FILE E 60425
600 V
30 A
26-10
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
600 V
30 A
26-10
FILE E 60425
600 V
30 A
26-10
EAC
EAC-Zulassung
EAC
RU C-
DE.A*30.B.01742
cULus Recognized
11/15/2018 Page 5 / 6
