284042-7 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 284042-7

Preview

284042-7: DescriptionTERMI-BLOK VERTICAL PLUG STACK; CategoryThe connector terminals; File Size135KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

284042-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	284042-7	-	-	View	Buy Now

284042-7 Overview

TERMI-BLOK VERTICAL PLUG STACK

284042-7 Parametric

Parameter Name	Attribute value
Brand Name	Buchanan
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BUCHANAN, LATCHED, POLYAMIDE66, 94V-0
Fastening method	SCREW
Installation type	CABLE
Number of layers	1
Rows	1
Number of channels	7
Rated current	15 A
Rated voltage	300 V
safety certificate	UL
Terminal and terminal strip types	STRIP TERMINAL BLOCK
Conductor cross section	2.5 mm2
Wire gauge	12 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

4

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

20

3

2

REVISIONS

P

LTR

DESCRIPTION

1

DATE

DWN

APVD

C

COPYRIGHT

20

B1

ECR-15-004839

26MAR2015

NV

PS

D

A

D

CLAMPING SCREW

NOTES:

1. MATERIALS

& FINISH

HOUSING : PA6.6 , UL94 V0, COLOUR -GREEN

SCREW M3 : COPPER ALLOY, NICKEL PLATED

CLAMP : COPPER ALLOY, NICKEL PLATED

SPRING CONTACT : COPPER ALLOY, TIN PLATED

2. MECHANICAL

RECOMMENDED/ HIGHEST TIGHTENING TORQUE : 0.5/0.6 Nm

INSERTION FORCE PER POLE :MAX 3 N

WIRE STRIPPING LENGTH: 6 - 7.5 mm

WITHDRAWAL FORCE PER POLE:MIN 1.5N

3. ELECTRICAL

WIRE RANGE : 30 - 12

VOLTAGE RATING : 300

CURRENT RATING : 15 A

CONTACT RESISTANCE :

INSULATION RESISTANCE

AWG

V

<15 m Ohm

: > 1000 M Ohm (500V DC)

C

WIRE ENTRY

284042-3 AS SHOWN

C

25.0

4. OPERATING TEMPERATURE BETWEEN -40°C TO +110°C

5

TOLERANCE NOT CUMULATIVE

8.4

RETENTION LATCH

88.0

80.5

73.0

65.5

58.0

12

11

10

9

8

7

6

5

4

3

N $

2

1-284042-2

1-284042-1

1-284042-0

284042-9

284042-8

284042-7

284042-6

284042-5

284042-4

284042-3

284042-2

B

5 7.50

0.08

6.25 REF

12.5

MATING FACE

50.5

43.0

35.5

28.0

20.5

DIM. A

13.0

B

POLARIZED KEY SLOT

2.75

REF

2.75

REF

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

E. ZANOLINI

03JAN2002

NAME

OF POS. PART NUMBER

TE Connectivity

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

A

MATERIAL

0

1

2

3

4

ANGLES

PLC

-

0.2

0.15

-

PRODUCT SPEC

03JAN2002

D. BIEVENOUR

APPLICATION SPEC

-

FINISH

2 $

WEIGHT

-

1

1470-19 (3/13)

1

-

CUSTOMER DRAWING

A3

00779

SIZE

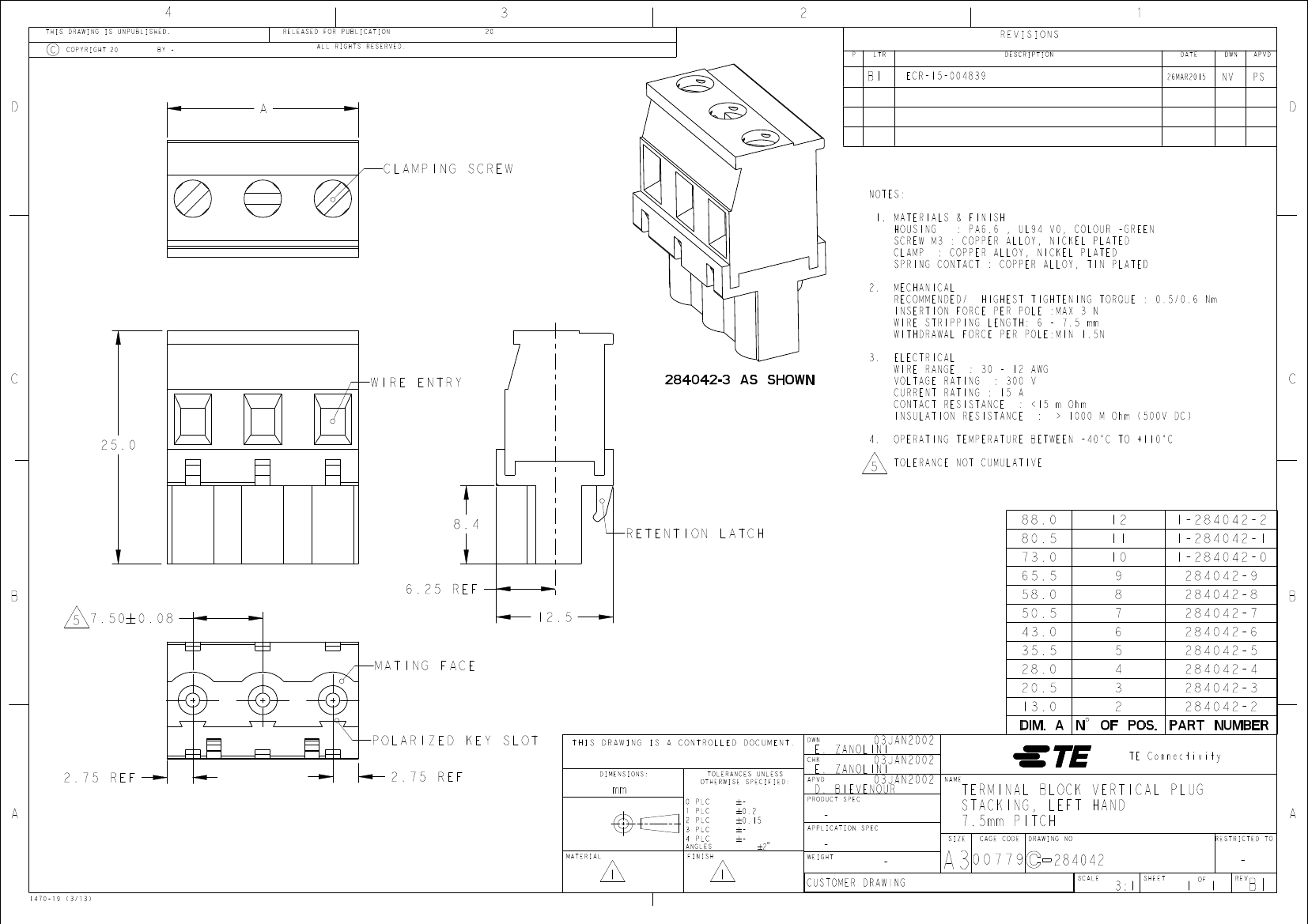

TERMINAL BLOCK VERTICAL PLUG

STACKING, LEFT HAND

7.5mm PITCH

CAGE CODE

DRAWING NO

A

RESTRICTED TO

284042

SCALE

3:1

SHEET

1

OF

1

REV

-

B1
