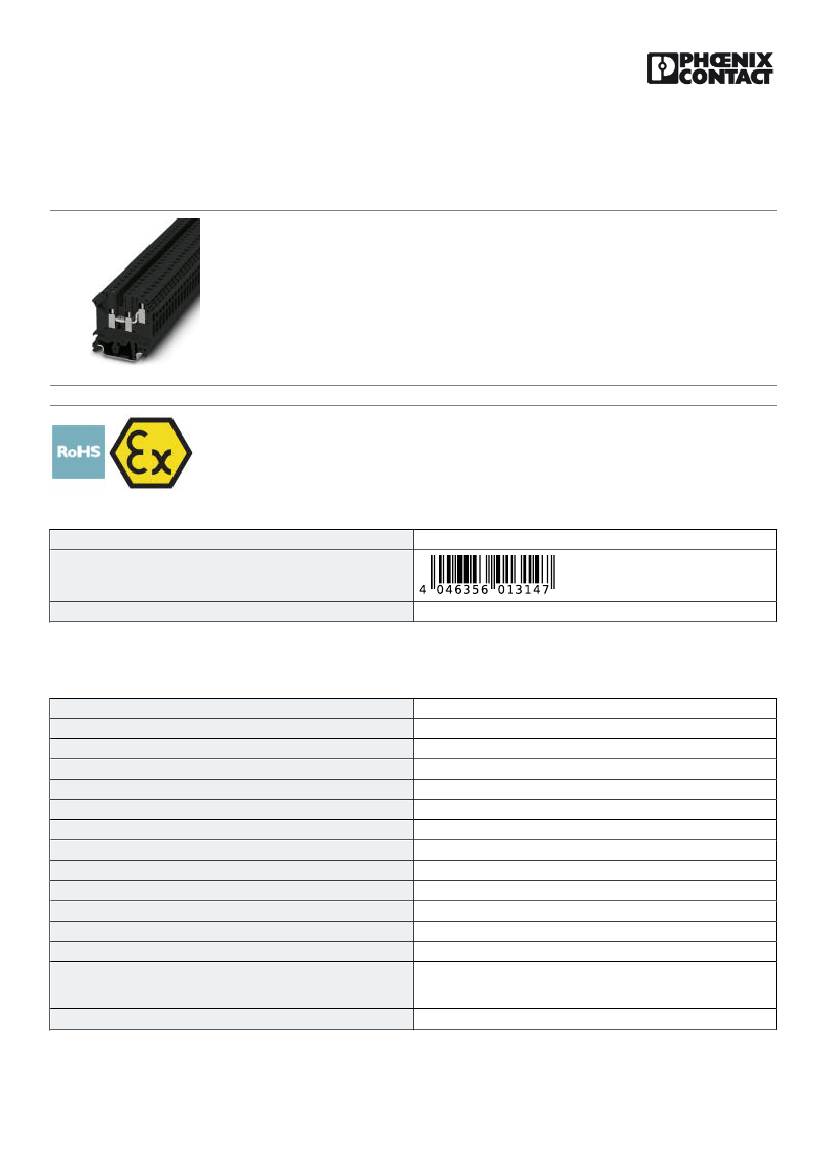

Feed-through terminal block - UK 5-TWIN BK - 3048535
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
1-level terminal block with double connection on one side, cross section: 0.2 - 4 mm², AWG: 24 - 12, width:
6.2 mm, color: Black
Key Commercial Data
Packing unit
GTIN
GTIN
4046356013147
50 pc
Technical data
General
Number of positions
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
1
2
3
1
4 mm²
black
PA
V2
6 kV
3
III
I
1.02 W (the value is multiplied when connecting multiple levels)
32 A (in case of a 4 mm² conductor cross section, the maximum load
current must not be exceeded by the total current of all connected
conductors.)
32 A (with 4 mm² conductor cross section)
10/27/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/3048535
Feed-through terminal block - UK 5-TWIN BK - 3048535
Technical data
General
Nominal voltage U
N
Open side panel
Shock protection test specification
Back of the hand protection
Finger protection
Note regarding shock protection
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
500 V (With tightened clamping screws)
Yes
IEC 60529:2001-02
guaranteed
guaranteed
Only with closed clamping unit
Test passed
7.3 kV
Test passed
1.89 kV
Test passed
Test passed
10 rpm
135
0.25 mm² / 0.3 kg
4 mm² / 0.9 kg
Test passed
0.2 mm²
10 N
4 mm²
60 N
Test passed
NS 35/NS 32
1N
Test passed
≤ 3.2 mV
Test passed
Test passed
4 mm²
0.48 kA
Test passed
30 s
125 °C
125 °C
Dimensions
Width
End cover width
Length
Height NS 35/7,5
6.2 mm
2 mm
50.5 mm
47 mm
10/27/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/3048535
Feed-through terminal block - UK 5-TWIN BK - 3048535
Technical data
Dimensions
Height NS 35/15
Height NS 32
54.5 mm
52 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Stripping length
Internal cylindrical gage
Screw thread
Screw connection
IEC 60947-7-1
0.2 mm²
4 mm²
24
12
0.2 mm²
4 mm²
24
12
0.25 mm²
0.25 mm²
2.5 mm²
4 mm²
4 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.5 mm²
1.5 mm²
0.25 mm²
1.5 mm²
IEC/EN 60079-7
0.2 mm²
4 mm²
24
12
0.2 mm²
4 mm²
8 mm
A4
M3
10/27/2018 Page 3 / 5
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
https://www.phoenixcontact.com/pi/products/3048535
Feed-through terminal block - UK 5-TWIN BK - 3048535
Technical data
Connection data
Tightening torque, min
Tightening torque max
0.6 Nm
0.8 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
IEC 60947-7-1
V2
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Circuit diagram
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / KEMA-KEUR / IECEE CB Scheme / cULus Recognized
Ex Approvals
ATEX / UL Recognized / cUL Recognized / EAC Ex / cULus Recognized
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
150 V
30 A
30-10
FILE E 60425
10/27/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/3048535
Feed-through terminal block - UK 5-TWIN BK - 3048535
Approvals
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
150 V
30 A
30-10
FILE E 60425
EAC
500 V
32 A
4
EAC-Zulassung
KEMA-KEUR
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.dekra-certification.com
71-102982
IECEE CB Scheme
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
4
http://www.iecee.org/
NL-39914_A1
500 V
32 A
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
10/27/2018 Page 5 / 5
