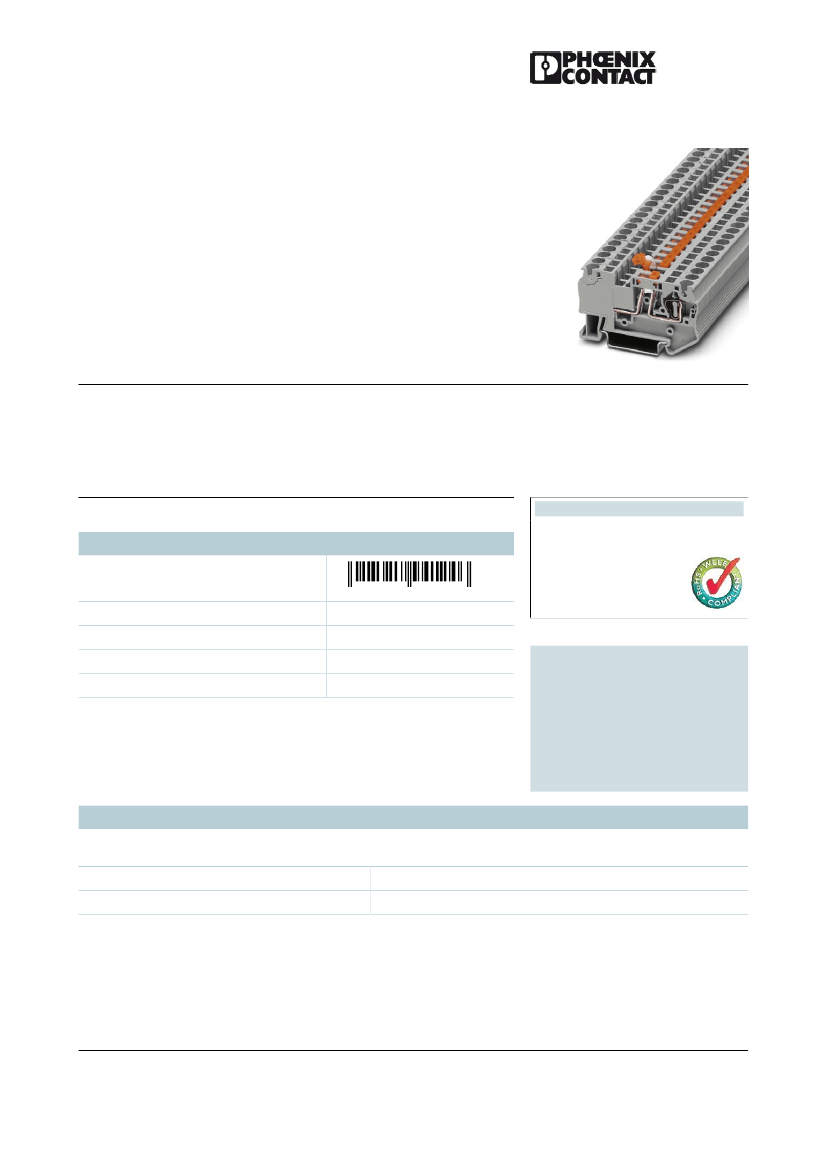

Extract from the online
catalog
ST 4-MT
Order No.: 3038875
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3038875
Disconnect and test disconnect terminal block, Connection
type: Spring-cage connection, Cross section: 0.08 mm² - 6 mm²,
AWG: 28 - 10, Nominal current: 20 A, Nominal voltage: 400 V,
Length: 61.5 mm, Width: 6.2 mm, Color: gray, Assembly: NS 35/7.5,
NS 35/15
Product notes
Commercial data
GTIN (EAN)
4
017918
941246
WEEE/RoHS-compliant since:
01/01/2003
sales group
Pack
Customs tariff
Catalog page information
A640
50 pcs.
85369010
Page 117 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
1
2
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 10, 2011
ST 4-MT
Order No.: 3038875
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3038875
Color
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
gray
PA
V0
6.2 mm
61.5 mm
36.5 mm
44 mm
16 A (with 6 mm conductor cross section)
6 kV
3
III
I
IEC 60947-7-1
20 A (with 6 mm conductor cross section)
400 V
2
2
0.08 mm²
6 mm²
0.08 mm²
4 mm²
28
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.5 mm²
1 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 10, 2011
ST 4-MT
Order No.: 3038875
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3038875
Type of connection
Stripping length
Internal cylindrical gage
Certificates / Approvals
Spring-cage connection
10 mm
A4
Certification
CSA, CUL, UL
Accessories
Item
Assembly
3030721
ATP-ST 4
Partition plate, Length: 61 mm, Width: 2 mm, Height: 42 mm,
Color: gray
Designation
Description
Bridges
3030336
3030242
3030255
3030349
3030271
3030365
3032224
Marking
3030954
Plug/Adapter
3002885
3002898
3030925
3036709
3030996
ISH 4/0,5
ISH 4/1,0
PAI-4
PS-4/E
PS-6
Insulating sleeve, Color: gray
Insulating sleeve, Color: black
Test adapter, Color: gray
Test adapter, Color: red
Test adapter, Color: red
WST 4
Warning cover, 5-pos., for terminal width: 6.2 mm
FBS 2-6
FBS 3-6
FBS 4-6
FBS 5-6
FBS 10-6
FBS 20-6
FBS 50-6
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge, Number of positions: 50, Color: red
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 10, 2011
ST 4-MT
Order No.: 3038875
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3038875
Tools
1204517
SZF 1-0,6X3,5
Actuation tool, for ST terminal blocks, also suitable for use as a
bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip,
with non-slip grip
Additional products
Item
Assembly
3036796
P-CO
Component connector, Nominal current: 6 A, Length: 24 mm,
Width: 5.2 mm, Height: 22 mm, Color: gray
Designation
Description
Plug/Adapter
3032460
3032457
3036783
3038956
3036806
P-CO 1N4007/L-R
P-CO 1N4007/R-L
P-DI
P-FIX
P-FU 5X20
Component connector, Length: 24 mm, Width: 5.2 mm, Height: 22
mm, Color: gray
Component connector, Length: 24 mm, Width: 5.2 mm, Height: 22
mm, Color: gray
Isolating connectors, Length: 10.5 mm, Width: 3.5 mm,
Height: 23.1 mm, Color: orange
Feed-through connector, Length: 10.5 mm, Width: 4 mm,
Color: gray
Fuse plug, Nominal current: 6.3 A, Nominal voltage: 500
V, Width: 6.2 mm, Fuse type: G / 5 x 20, Fuse type: Glass,
Color: black
Fuse plug, Nominal current: 6.3 A, Nominal voltage: 500
V, Width: 6.2 mm, Fuse type: G / 5 x 20, Fuse type: Glass,
Color: black
Fuse plug, Nominal current: 6.3 A, Nominal voltage: 500
V, Width: 6.2 mm, Fuse type: G / 5 x 20, Fuse type: Glass,
Color: black
Fuse plug, Nominal current: 6.3 A, Nominal voltage: 500
V, Width: 6.2 mm, Fuse type: G / 5 x 20, Fuse type: Glass,
Color: black
3036835
P-FU 5X20 LA 250
3036819
P-FU 5X20 LED 24
3036822
P-FU 5X20 LED 60
Diagrams/Drawings
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 10, 2011
ST 4-MT
Order No.: 3038875
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3038875
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 5
Feb 10, 2011
