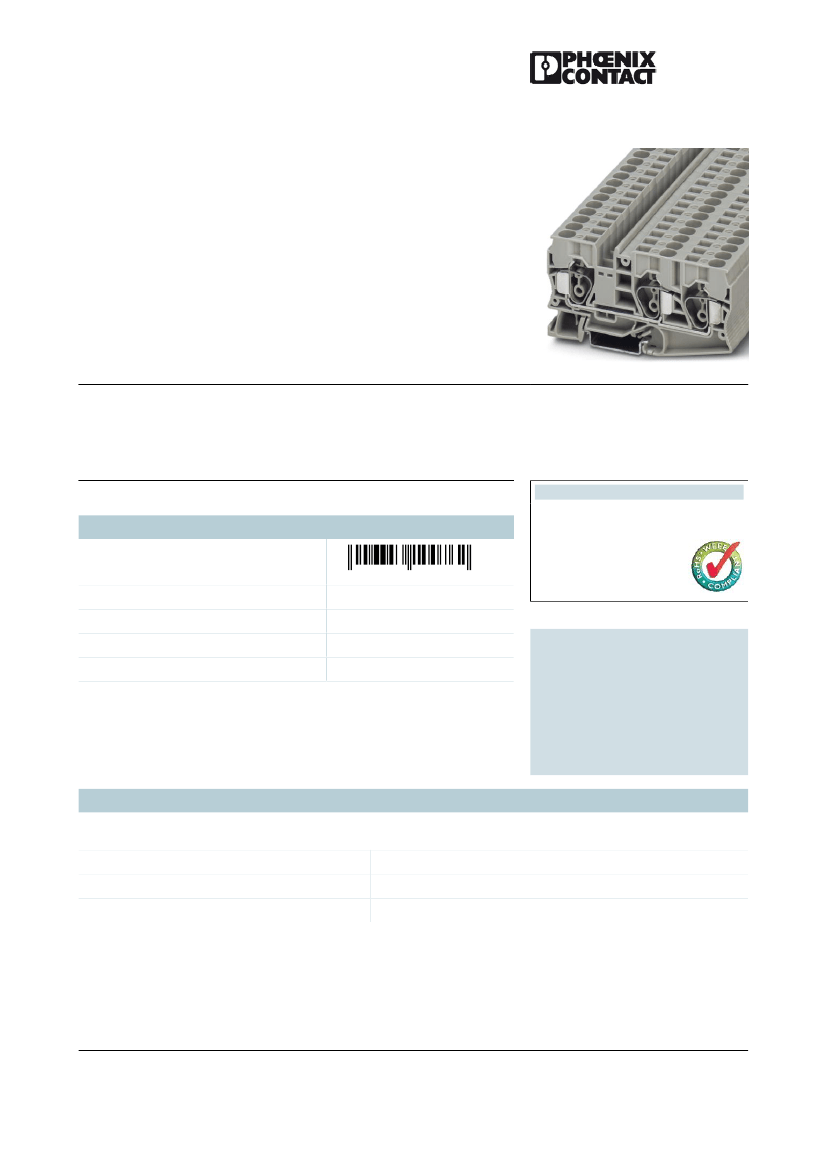

ST 10-TWIN
Order No.: 3035288
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3035288
Feed-through modular terminal block, Type of connection: Spring-
cage connection, Spring-cage connection, Cross section: 0.2 mm² - 16
mm², AWG 24 - 6, Width: 10.2 mm, Color: gray, Mounting type: NS
35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
4
046356
100762
WEEE/RoHS-compliant since:
11/01/2005
sales group
Pack
Customs tariff
Catalog page information
A630
25 pcs.
85369010
Page 84 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
1
3
gray
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 9, 2011
ST 10-TWIN
Order No.: 3035288
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3035288
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
PA
V0
10.2 mm
97 mm
50.3 mm
57.8 mm
65 A (with 16 mm conductor cross section)
8 kV
3
III
I
IEC 60947-7-1
57 A
800 V
ja
2
0.2 mm²
16 mm²
0.2 mm²
10 mm²
24
6
0.25 mm²
10 mm²
0.25 mm²
10 mm²
1.5 mm²
2.5 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 9, 2011
ST 10-TWIN
Order No.: 3035288
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3035288
Type of connection
Stripping length
Internal cylindrical gage
Certificates / Approvals
Spring-cage connection
15 mm
A6
Certification
UL, VDE-PZI
Accessories
Item
Assembly
3035315
Bridges
3005947
Marking
0811228
1053001
X-PEN 0,35
ZB 10:UNBEDRUCKT
Marker pen without ink cartridge, for manual labeling of markers,
labeling extremely wipe-proof, line thickness 0.35 mm
Zack strip, unprinted: 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, sufficient for 100 terminal blocks, for a
terminal width of 10.2 mm, color: White
Zack strip, unprinted: 10-section, for individual labeling with M-
PEN, ZB-T or CMS system, large batch, sufficient for labeling
1000 terminal blocks, for a terminal width of 10.2 mm, color: White
Zack strip, 10-section, divisible, special printing, marking
according to customer requirements
FBS 2-10
Plug-in bridge, Number of positions: 2, Color: red
D-ST 10-TWIN
End cover, Length: 97 mm, Width: 2.2 mm, Color: gray
Designation
Description
5060883
ZB10/WH-100:UNBEDRUCKT
1050525
ZB10:SO/CMS
Plug/Adapter
0201689
0201676
0201663
0201744
3030873
MPS-IH BU
MPS-IH RD
MPS-IH WH
MPS-MT
RB ST 10-(2,5/4)
Insulating sleeve, Color: blue
Insulating sleeve, Color: red
Insulating sleeve, Color: white
Test plugs
Reducing bridge, Number of positions: 2, Color: red
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 9, 2011
ST 10-TWIN
Order No.: 3035288
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3035288
Tools
1206612
SZF 3-1,0X5,5
Actuation tool, for ST terminal blocks, also suitable for use as a
bladed screwdriver, size: 1.0 x 5.5 x 150 mm, 2-component grip,
with non-slip grip
Diagrams/Drawings
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 9, 2011
ST 10-TWIN
Order No.: 3035288
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3035288
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 5
Feb 9, 2011
