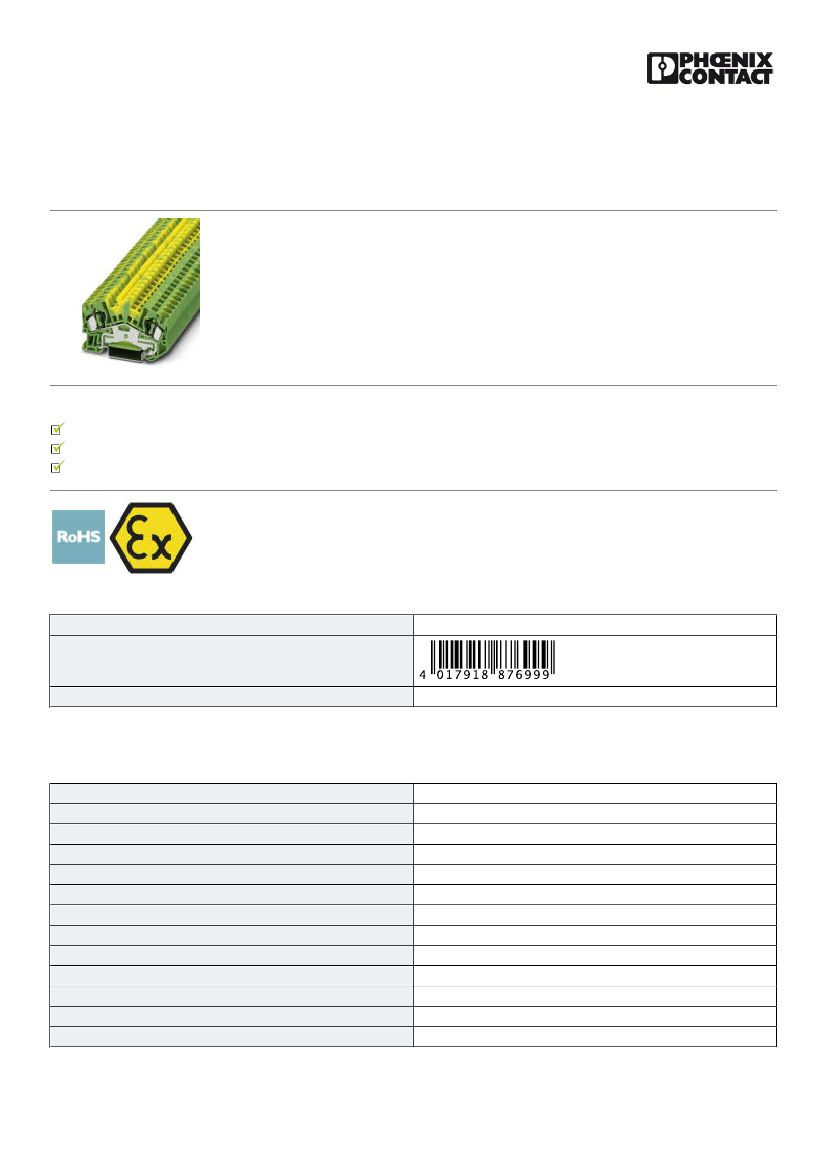

Spring cage ground terminal block - STS 4-PE - 3036440
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Spring cage ground terminal block, connection method: Spring-cage connection, number of connections: 2,
cross section:0.08 mm² - 6 mm², AWG: 28 - 10, width: 6.2 mm, color: green-yellow, mounting type: NS 35/7,5,
NS 35/15
Your advantages
Same shape and pitch as the feed-through terminal blocks
Contact is made free from mechanical and electrical errors by simply snapping onto the DIN rail
All the requirements of standard IEC 60947-7-2 are met
Key Commercial Data
Packing unit
GTIN
GTIN
4017918876999
50 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Open side panel
Shock protection test specification
Back of the hand protection
1
2
4 mm²
green-yellow
PA
V0
8 kV
3
III
I
Yes
DIN EN 50274 (VDE 0660-514):2002-11
guaranteed
11/11/2018 Page 1 / 6
https://www.phoenixcontact.com/pi/products/3036440
Spring cage ground terminal block - STS 4-PE - 3036440
Technical data
General
Finger protection
Oscillation, broadband noise test result
Test specification, oscillation, broadband noise
Test spectrum
Test frequency
ASD level
Acceleration
Test duration per axis
Test directions
Shock test result
Test specification, shock test
Shock form
Acceleration
Shock duration
Number of shocks per direction
Test directions
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
guaranteed
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Service life test category 2, bogie-mounted
f
1
= 5 Hz to f
2
= 250 Hz
6.12 (m/s ) /Hz
3.12 g
5h
X-, Y- and Z-axis
Test passed
DIN EN 50155 (VDE 0115-200):2008-03
Half-sine
30g
18 ms
3
X-, Y- and Z-axis (pos. and neg.)
130 °C
125 °C
-60 °C
Test passed
V0
>32 %
2
2
passed
passed
passed
27,5 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
2 2
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
2.2 mm
64.5 mm
43 mm
50.5 mm
Connection data
11/11/2018 Page 2 / 6
https://www.phoenixcontact.com/pi/products/3036440
Spring cage ground terminal block - STS 4-PE - 3036440
Technical data
Connection data
Note
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Stripping length
Internal cylindrical gage
Please observe the current carrying capacity of the DIN rails.
Spring-cage connection
IEC 60947-7-2
0.08 mm²
6 mm²
28
10
0.08 mm²
4 mm²
28
12
0.14 mm²
0.14 mm²
4 mm²
0.5 mm²
1 mm²
IEC/EN 60079-7
0.08 mm²
6 mm²
28
10
0.08 mm²
4 mm²
8 mm ... 10 mm
A4
Conductor cross section flexible, with ferrule without plastic sleeve max. 4 mm²
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
CSA
IEC 60947-7-2
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
11/11/2018 Page 3 / 6
https://www.phoenixcontact.com/pi/products/3036440
Spring cage ground terminal block - STS 4-PE - 3036440
Drawings
Circuit diagram
Approvals
Approvals
Approvals
DNV GL / CSA / BV / LR / KR / NK / ABS / UL Recognized / cUL Recognized / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung /
EAC / EAC / cULus Recognized
Ex Approvals
IECEx / ATEX / EAC Ex
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE00001CS
CSA
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
28-10
13631
BV
http://www.veristar.com/portal/veristarinfo/generalinfo/
approved/approvedProducts/equipmentAndMaterials
27725/A0 BV
LR
http://www.lr.org/en
06/20022
KR
http://www.krs.co.kr/eng/main/main.aspx
HMB36894-EL001
NK
http://www.classnk.or.jp/hp/en/
06ME279
ABS
http://www.eagle.org/eagleExternalPortalWEB/
16-HG1517580-PDA
11/11/2018 Page 4 / 6
https://www.phoenixcontact.com/pi/products/3036440
Spring cage ground terminal block - STS 4-PE - 3036440
Approvals
UL Recognized
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
28-10
FILE E 60425
28-10
cUL Recognized
mm²/AWG/kcmil
B
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
C
28-10
FILE E 60425
28-10
IECEE CB Scheme
mm²/AWG/kcmil
4
http://www.iecee.org/
DE1-51418
VDE Gutachten mit
Fertigungsüberwachung
Nominal current IN
mm²/AWG/kcmil
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
32 A
0.2-4
40010329
EAC
EAC-Zulassung
EAC
RU C-
DE.A*30.B.01742
cULus Recognized
11/11/2018 Page 5 / 6
