SC 2,5/ 7
Order No.: 3041367

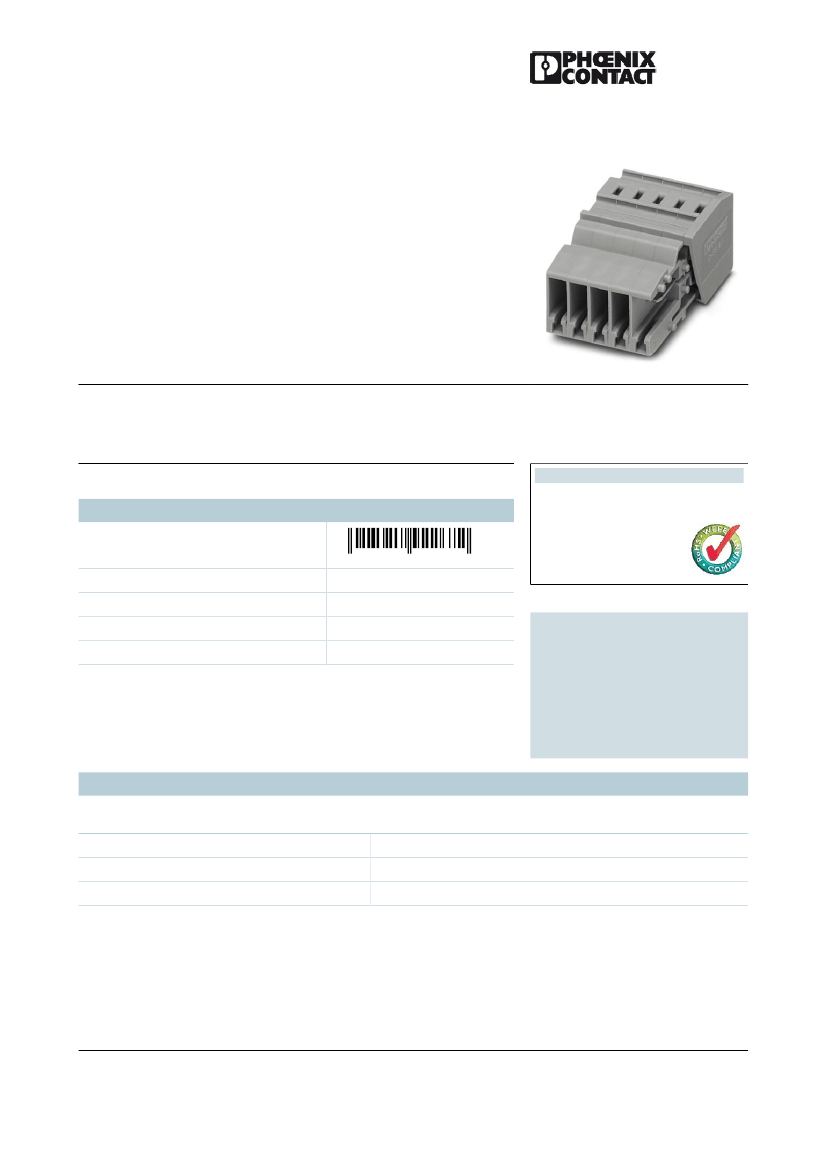

The illustration shows a 6-position version
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3041367
Coupling, Type of connection: Plug connection, Spring-cage
connection, Number of positions: 7, Cross section: 0.08 mm² - 4 mm²,
AWG 28 - 12, Width: 36.4 mm, Height: 18.8 mm, Color: gray
Product notes
Commercial data
GTIN (EAN)
4
017918
922672
WEEE/RoHS-compliant since:
01/01/2003
sales group
Pack
Customs tariff
Catalog page information
A672
25 pcs.
85366990
Page 268 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions
Width
Length
Height
36.4 mm
37.2 mm
18.8 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 11
Feb 10, 2011
SC 2,5/ 7
Order No.: 3041367
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3041367
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Number of positions
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
Certificates / Approvals
0.08 mm²
4 mm²
0.08 mm²
2.5 mm²
28
12
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
0.5 mm²
Plug connection
10 mm
A3
24 A (with 2.5 mm conductor cross section)
6 kV
3
III
I
IEC 61984
24 A
500 V
ja
7
2
Certification
BV, CUL, DNV, GL, GOST, LR, UL
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 11
Feb 10, 2011
SC 2,5/ 7
Order No.: 3041367
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3041367
Accessories
Item
Assembly
3042243
3040562
3040575
D-SC 2,5
PDZ/2
PDZ/4
End cover, Length: 43.5 mm, Width: 2.2 mm, Color: gray
Strain relief, Length: 3 mm, Width: 9.6 mm, Height: 23 mm,
Number of positions: 2, Color: black
Strain relief, Length: 3 mm, Width: 19.9 mm, Height: 23 mm,
Number of positions: 4, Color: black
Designation
Description
Marking
1051993
0811228
0808671
0808642
B-STIFT
X-PEN 0,35
ZBF 5,LGS:FORTL.ZAHLEN
ZBF 5:UNBEDRUCKT
Marker pen, for manual labeling of unprinted Zack strips, smear-
proof and waterproof, line thickness 0.5 mm
Marker pen without ink cartridge, for manual labeling of markers,
labeling extremely wipe-proof, line thickness 0.35 mm
Zack marker strip, flat, printed horizontally: 10-section, with the
numbers 1 - 10, 11 - 20, and so on up to 491 - 500, color: white
Zack strip, flat, unprinted: 10-section, for individual labeling with
M-PEN or ZBF-T, sufficient for 100 terminal blocks, color: white
Plug/Adapter
3002843
3002856
3002869
0201702
0201676
0201744
3030983
ISH 2,5/0,2
ISH 2,5/0,5
ISH 2,5/1,0
MPS-IH GN
MPS-IH RD
MPS-MT
PS-5
Insulation stop sleeve, Color: white
Insulation stop sleeve, Color: gray
Insulation stop sleeve, Color: black
Insulating sleeve, Color: green
Insulating sleeve, Color: red
Test plugs
Test adapter, Color: red
Additional products
Item
Plug/Adapter
3040258
SP 2,5/ 1
Connectors, Type of connection: Spring-cage connection, Number
of positions: 1, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
Width: 5.2 mm, Height: 39 mm, Color: gray
Connectors, Type of connection: Spring-cage connection, Number
of positions: 1, Cross section: 0.08 mm² - 4 mm², AWG 28 - 12,
