Printed-circuit board connector - SMSTB 2,5/ 7-ST-5,08 - 1826335
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 7, Pitch:
5.08 mm, Connection method: Screw connection, Color: green, Contact surface: Tin

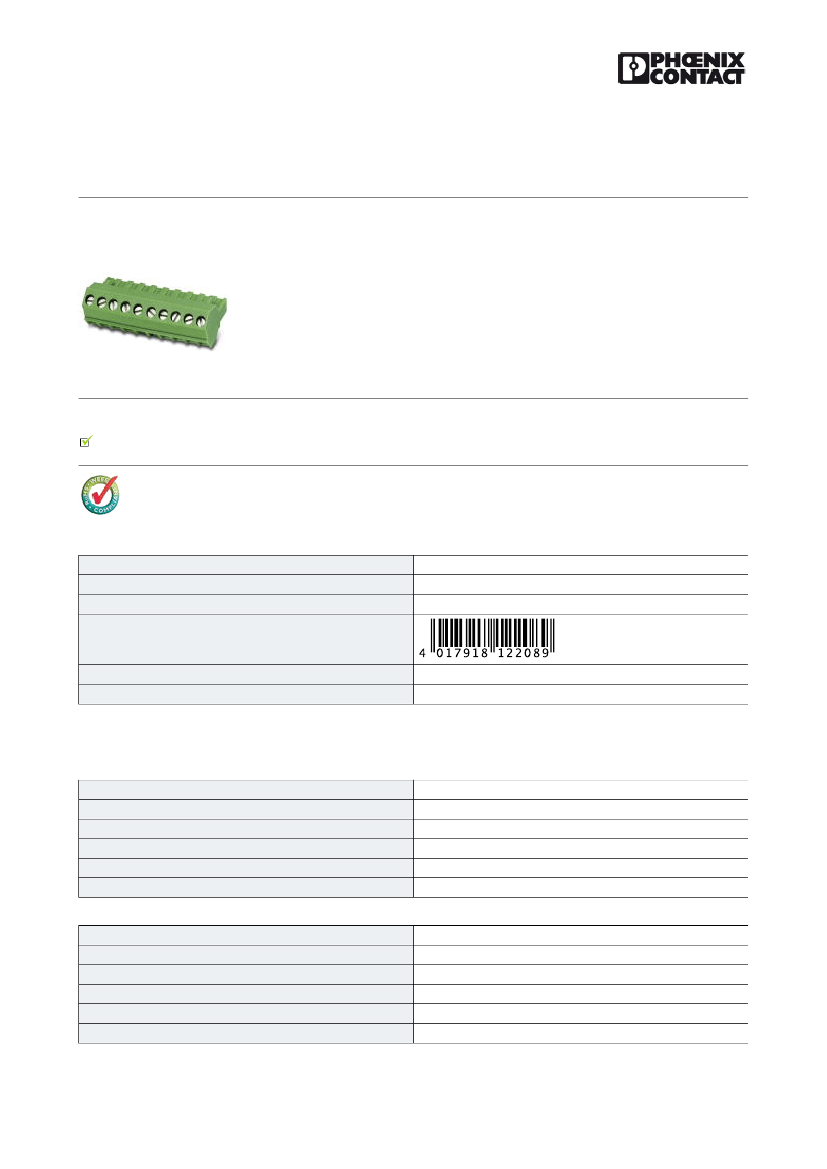

The figure shows a 10-position
version of the product
Why buy this product
With angled connection direction to the conductor axis
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85366990
GERMANY
1
50
Page 239 (CC-2011)
Technical data
Dimensions / positions
Height
Pitch
Dimension a
Number of positions
Tightening torque, min
Tightening torque max
15.5 mm
5.08 mm
30.48 mm
7
0.5 Nm
0.6 Nm
Technical data
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/2)
SMSTB 2,5/..-ST
I
4 kV
4 kV
4 kV
320 V
11.10.2012 Page 1 / 9
https://www.phoenixcontact.com/us/produkte/1826335
Printed-circuit board connector - SMSTB 2,5/ 7-ST-5,08 - 1826335
Technical data
Technical data
Rated voltage (II/2)
Connection in acc. with standard
Nominal current IN
Nominal voltage UN
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Internal cylindrical gage
Stripping length
Nominal voltage, UL/CUL Use Group B
Nominal current, UL/CUL Use Group B
Nominal voltage, UL/CUL Use Group D
Nominal current, UL/CUL Use Group D
630 V
EN-VDE
12 A
250 V
2.5 mm²
12 A (with 2.5 mm2 conductor cross section)
PA
V0
A3
7 mm
300 V
15 A
300 V
10 A
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, min.
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
1 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1 mm²
0.5 mm²
1.5 mm²
30
12
11.10.2012 Page 2 / 9
https://www.phoenixcontact.com/us/produkte/1826335
Printed-circuit board connector - SMSTB 2,5/ 7-ST-5,08 - 1826335
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
272607xx
27260701
27260701
27260701
27260704
27440402
etim
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002638
EC002638
unspsc
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211810
39121409
39121409
39121409
39121409
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / GOST / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
28-12
10 A
300 V
D
28-12
10 A
300 V
11.10.2012 Page 3 / 9
https://www.phoenixcontact.com/us/produkte/1826335
Printed-circuit board connector - SMSTB 2,5/ 7-ST-5,08 - 1826335
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-12
15 A
300 V
D
30-12
10 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
30-12
15 A
300 V
D
30-12
10 A
300 V
GOST
GOST
cULus Recognized
Accessories
Accessories
Tools
Screwdriver - SZS 0,6X3,5 - 1205053
Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x
3.5 x 100 mm, 2-component grip, with non-slip grip
Additional products
11.10.2012 Page 4 / 9
https://www.phoenixcontact.com/us/produkte/1826335
Printed-circuit board connector - SMSTB 2,5/ 7-ST-5,08 - 1826335

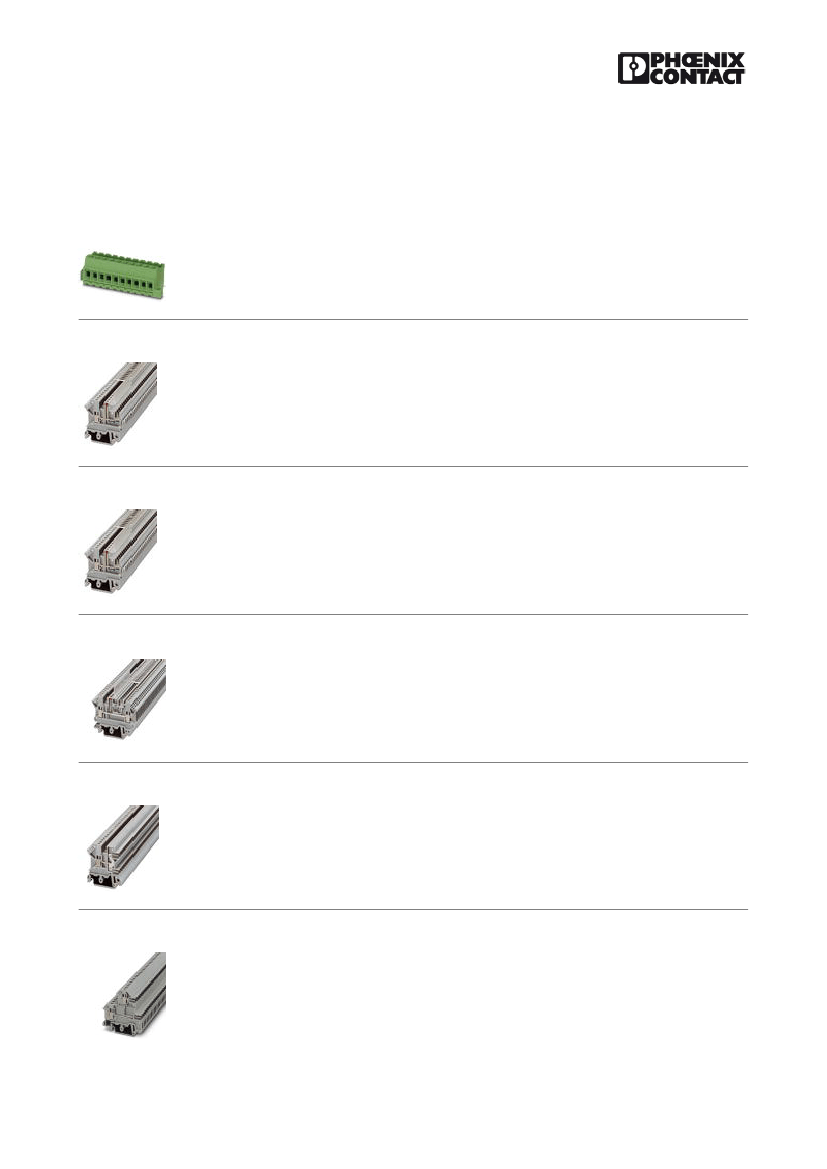

Accessories
Base strip - MVSTBU 2,5/ 7-GB-5,08 - 1788583
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 7, Pitch: 5.08
mm, Connection method: Screw connection, Color: green, Contact surface: Tin, Assembly: Direct mounting
Feed-through terminal block - UK 3-MVSTB-5,08-LA 24RD - 3002102
Feed-through terminal block, Nominal current: 12 A, Nominal voltage: 250 V, Cross section: 0.2 mm² - 4
mm², AWG: 24 - 12, Mounting type: NS 32, NS 35/15, NS 35/7.5, Pitch: 5.08 mm, Width: 5.08, Color: gray
Feed-through terminal block - UK 3-MVSTB-5,08 - 3002076
Feed-through terminal block, Nominal current: 12 A, Nominal voltage: 250 V, Cross section: 0.2 mm² - 4
mm², AWG: 24 - 12, Mounting type: NS 32, NS 35/15, NS 35/7.5, Pitch: 5.08 mm, Width: 5.1, Color: gray
Feed-through terminal block - UK 3D-MSTBV-5,08 - 3002131
Feed-through terminal block, Connection method: Special and hybrid connection, Cross section: 0.2
mm² - 4 mm², AWG 24 - 12, Width: 5.08 mm, Color: gray, Mounting type: NS 32, NS 35/15, NS 35/7.5
Feed-through terminal block - UK 3-MSTB-5,08 - 3002034
Feed-through terminal block, Connection method: Special and hybrid connection, Cross section: 0.2
mm² - 4 mm², AWG 24 - 12, Width: 5.08 mm, Color: gray, Mounting type: NS 32, NS 35/15, NS 35/7.5
Double-level terminal block - UKK 3-MSTB-5,08 - 2770888
Double-level modular terminal block with COMBICON plug-in zone, nominal current: 12 A, nominal voltage:
250 V, cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, mounting type: NS 35/7.5, NS 35/15, NS 32, pitch:
5.08 mm, width: 5.08, color: gray
11.10.2012 Page 5 / 9
