PCB terminal block - SPT 16/ 3-H-10,0-ZB - 1735794
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
PCB terminal block, Nominal current: 76 A, Nom. voltage: 1000 V, Pitch: 10 mm, Number of positions: 3,
Connection method: Spring-cage connection, Mounting: Soldering, Color: green
The illustration shows the 5-position
version of the product
Product Features
Conductor connection direction: horizontal (0° -H) to the PCB
Unlimited 600 V UL approval thanks to compact zigzag pinning
Single-position terminal blocks with double pinning
Terminal blocks that can be mounted side by side for color coding from position to position
SPT 16 Push-in spring-cage PCB terminal block for conductor cross sections up to 16 mm² and a current carrying capacity of 76 A
Key commercial data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
22.22 GRM
85369010
Bulgaria
Technical data
Dimensions
Pitch
Dimension a
Pin dimensions
Pin spacing
Hole diameter
10 mm
20 mm
1,2 x 1 mm
15 mm
1.7 mm
General
Range of articles
SPT 16/..-H
03/27/2014 Page 1 / 5
https://www.phoenixcontact.com/us/products/1735794
PCB terminal block - SPT 16/ 3-H-10,0-ZB - 1735794
Technical data
General
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Solder pin surface
Inflammability class according to UL 94
Stripping length
Number of positions
I
8 kV
8 kV
6 kV
1000 V
1000 V
1000 V
EN-VDE
76 A
16 mm²
76 A
PA
Sn
V0
18 mm
3
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
0.75 mm²
16 mm²
0.75 mm²
16 mm²
0.75 mm²
16 mm²
0.75 mm²
10 mm²
20
4
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.75 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
4 mm²
sleeve, max.
Minimum AWG according to UL/CUL
Maximum AWG according to UL/CUL
20
4
03/27/2014 Page 2 / 5
https://www.phoenixcontact.com/us/products/1735794
PCB terminal block - SPT 16/ 3-H-10,0-ZB - 1735794
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141109
27141109
27141190
27141190
27261101
27440401
27440401
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001121
EC002643
EC002643
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211801
39121432
39121432
39121432
39121432
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / SEV / CCA / IECEE CB Scheme / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
03/27/2014 Page 3 / 5
https://www.phoenixcontact.com/us/products/1735794
PCB terminal block - SPT 16/ 3-H-10,0-ZB - 1735794
Approvals
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
20-4
66 A
600 V
C
20-4
66 A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
20-4
66 A
600 V
C
20-4
66 A
600 V
GOST
SEV
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
16
76 A
1000 V
CCA
Nominal current IN
Nominal voltage UN
76 A
1000 V
IECEE CB Scheme
Nominal current IN
Nominal voltage UN
76 A
1000 V
03/27/2014 Page 4 / 5
https://www.phoenixcontact.com/us/products/1735794
PCB terminal block - SPT 16/ 3-H-10,0-ZB - 1735794
Approvals
GOST
cULus Recognized

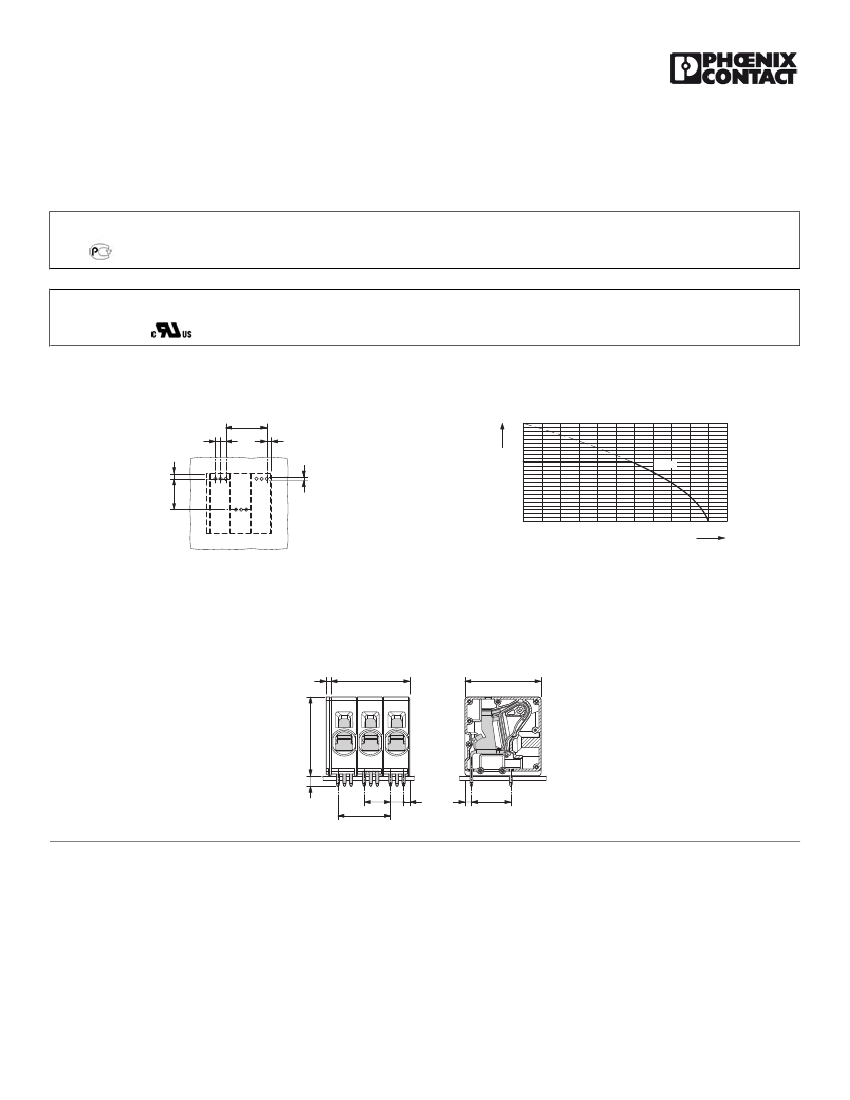

Drawings
Drilling diagram
2,5
2,5
2,35
Current carrying capacity [A]
Diagram
125
100
75
50
25
0
0
20
40
60
80
100
16 mm
2
a
2,5
15
1,7
Ambient temperature [°C]
Type: SPT 16/...-H-10,0-ZB
Test based on DIN EN 60512-5-2:2003-01
Reduction factor = 1
Number of positions: 5
Dimensioned drawing
1,8
a+10
29
4
30
10
a
5
2,35
2,5
15
Phoenix Contact 2014 © - all rights reserved
http://www.phoenixcontact.com
03/27/2014 Page 5 / 5
