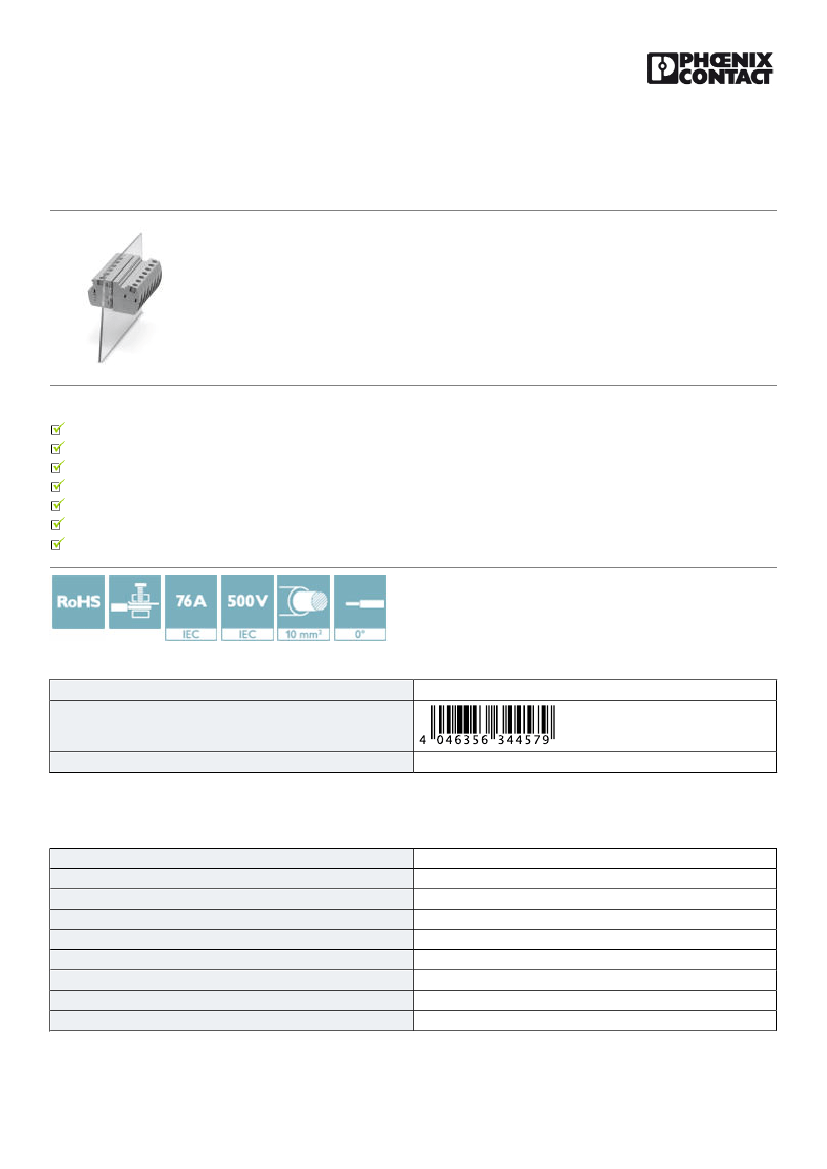

Panel feed-through terminal block - UW 10 - 3073322
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Panel feed-through terminal block, connection method: Screw connection, Screw connection, number of
positions: 1, load current: 76 A, cross section: 0.5 mm² - 16 mm², AWG 20 - 6, connection direction of the
conductor to plug-in direction: 0 °, width: 10.1 mm, color: gray
Your advantages
Easy grouping with engagement pin versions
Both terminal halves can be easily assembled by simply snapping them together
Molded versions ensure maximum tightness of seal
Touch-proof insulating housing in a new design
Automatic compensation of the panel thickness via the snap principle integrated in the insulation housing
Universal screw connection with screw locking
Spacer plates increase clearances and creepage distances
Key Commercial Data
Packing unit
GTIN
GTIN
4046356344579
50 pc
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
1
2
10 mm²
gray
PA
V0
6 kV
3
III
11/11/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/3073322
Panel feed-through terminal block - UW 10 - 3073322
Technical data
General
Insulating material group
Connection in acc. with standard
Nominal current I
N
Maximum load current
Nominal voltage U
N
Open side panel
Number of positions
I
IEC 60947-7-1
57 A
76 A
500 V
No
1
Dimensions
Width
Pitch
Plate thickness
10.1 mm
10.1 mm
1 mm ... 4 mm
Connection data
Connection side
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
Stripping length
Internal cylindrical gage
Screw thread
outside
Screw connection
0.5 mm²
16 mm²
0.5 mm²
10 mm²
20
6
0.5 mm²
0.5 mm²
10 mm²
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
2.5 mm²
0.5 mm²
6 mm²
10 mm²
10 mm²
11 mm
B6
M4
11/11/2018 Page 2 / 4
Conductor cross section flexible, with ferrule without plastic sleeve max. 10 mm²
https://www.phoenixcontact.com/pi/products/3073322
Panel feed-through terminal block - UW 10 - 3073322
Technical data
Connection data
Tightening torque, min
Tightening torque max
Connection side
Connection method
1.5 Nm
1.8 Nm
inside
Screw connection
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
UL
IEC 60947-7-1
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”

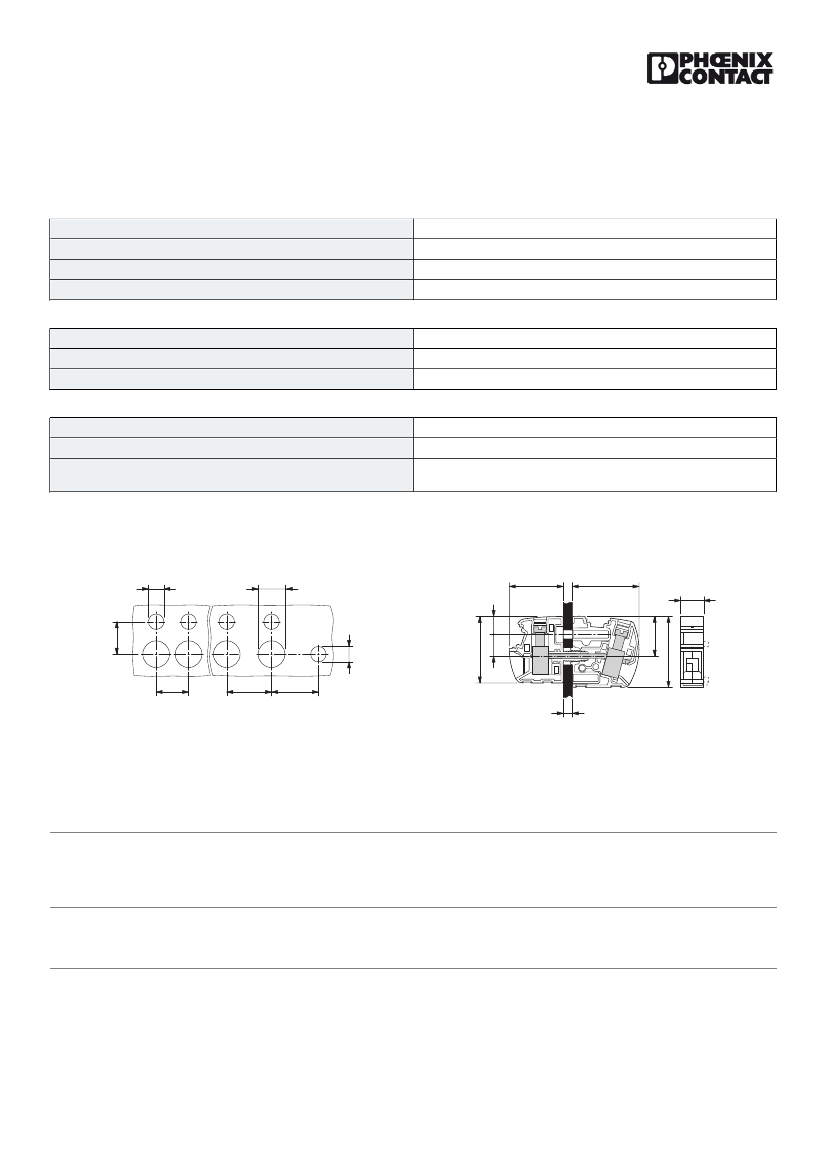

Drawings
Dimensional drawing
Ø4,5
Ø7,8
Dimensional drawing
23,5
29
10,1
9,5 7,9
Ø4,5
29
17,4
9,5
10,1
13,1**
12,35*
1-4
* Only when using the UW...‑F flange plate
** Dimensions when using the DP-UW... spacer plate
Approvals
Approvals
Approvals
CSA / EAC / cULus Recognized
Ex Approvals
Approval details
11/11/2018 Page 3 / 4
31
https://www.phoenixcontact.com/pi/products/3073322
Panel feed-through terminal block - UW 10 - 3073322
Approvals
CSA
mm²/AWG/kcmil
D
20-6
http://www.csagroup.org/services-industries/product-listing/
B
20-6
C
20-6
2618381-158887
EAC
D
600 V
5A
20-6
B
300 V
65 A
20-6
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20100423
C
300 V
65 A
20-6
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
11/11/2018 Page 4 / 4
