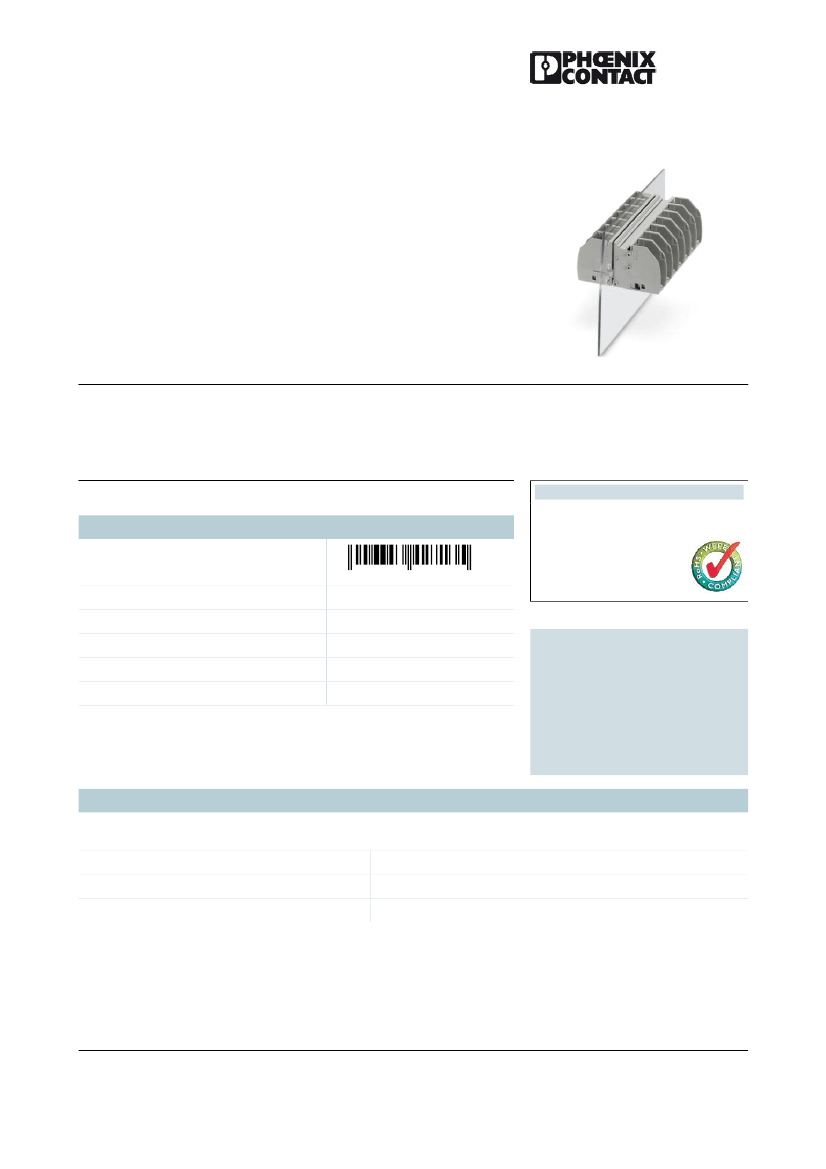

RWO 5/S
Order No.: 3056129
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3056129
Bolt connection terminal block, Connection method: Bolt connection,
Load current : 76 A, Cross-section: 0.1 mm² - 16 mm², AWG 26 - 6,
Connection direction of the conductor to plug-in direction: 0 °,
Width: 16.3 mm, Color: gray
Product notes
Commercial data
GTIN (EAN)
4
046356
427135
WEEE/RoHS-compliant since:
06/24/2008
Note
sales group
Pack
Customs tariff
Catalog page information
Made-to-order
A420
10 pcs.
85369010
Page 58 (NTK-2010)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
1
2
gray
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 4
May 9, 2011
RWO 5/S
Order No.: 3056129
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3056129
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Connection method
Screw thread
Tightening torque, min
Tightening torque max
Accessories
Item
General
3075155
Marking
0828295
TMT (EX9,5)R
RW 5-F
Designation
PA
V0
16.3 mm
8 kV
3
III
I
IEC 60947-7-1
76 A
1000 V
0.1 mm²
16 mm²
0.1 mm²
16 mm²
26
6
Bolt connection
M5
2.5 Nm
3 Nm
Description
Flange cover, Color: gray
Terminal marking with 9.5 mm strip height, continuous, without
color print, for all terminals with ZB or ZBF groove, can be labeled
using a thermal transfer printer, 1 roll = 50 m
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 4
May 9, 2011
RWO 5/S
Order No.: 3056129
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3056129
0819194
UC-TM 12
UniCard materials for labeling terminal blocks with a marker
groove,40-section, can be labeled with BLUEMARK X1 and CMS-
P1-PLOTTER, color: white
UniCard materials for labeling terminal blocks with a marker
groove,32-section, can be labeled with BLUEMARK X1 and CMS-
P1-PLOTTER, color: white
UniCard sheets, for labeling terminal blocks using a flat Zack
marker strip groove, 40-section, can be labeled with BLUEMARK
X1 and CMS-P1-PLOTTER, color: White
UniCard sheets, for labeling terminals using a flat Zack marker
strip groove, 32-section, can be labeled with BLUEMARK X1 and
CMS-P1-PLOTTER, color: White
0819217
UC-TM 16
0819233
UC-TMF 12
0819262
UC-TMF 16
Tools
1205079
SZS 1,0X6,5 VDE
Screwdriver, bladed, VDE insulated, size: 1.0 x 6.5 x 150 mm, 2-
component grip, with non-slip grip
Diagrams/Drawings

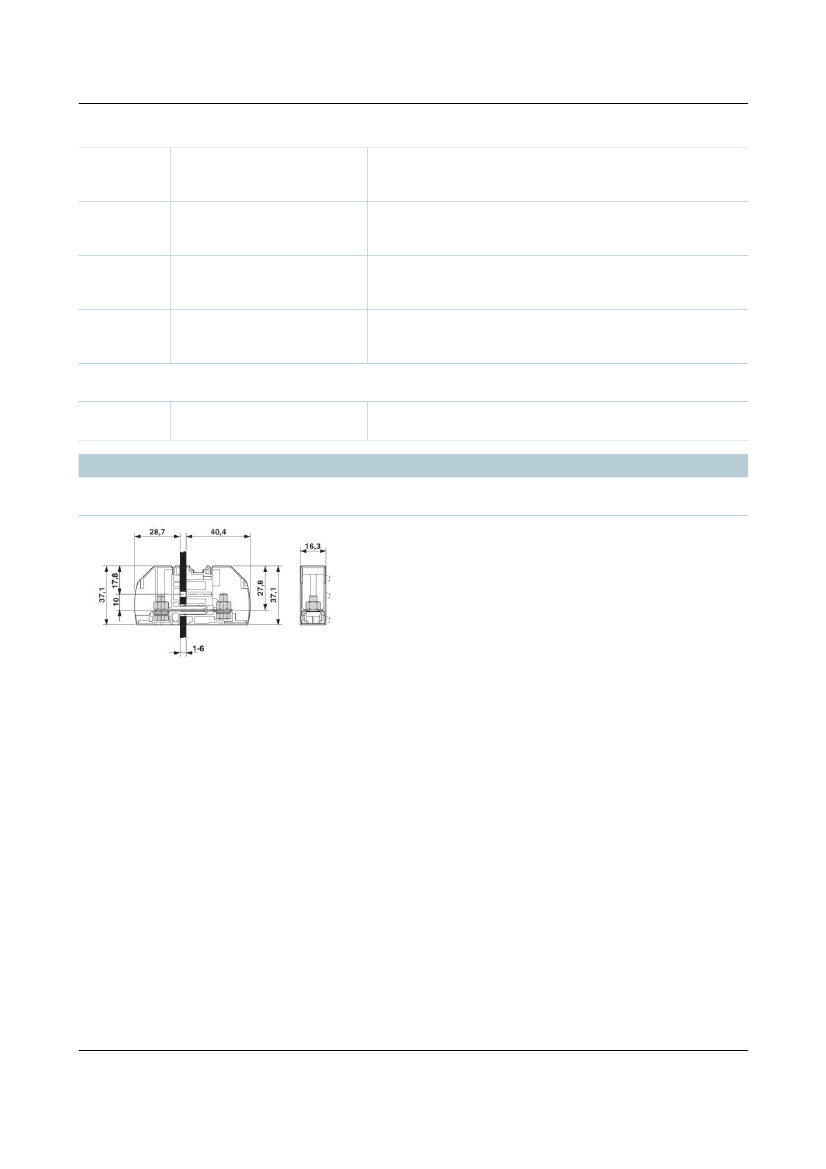

Dimensioned drawing
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 4
May 9, 2011
RWO 5/S
Order No.: 3056129
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3056129
Address
PHOENIX CONTACT Inc., USA
586 Fulling Mill Road
Middletown, PA 17057,USA
Phone (800) 888-7388
Fax (717) 944-1625
http://www.phoenixcon.com
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 4
May 9, 2011
