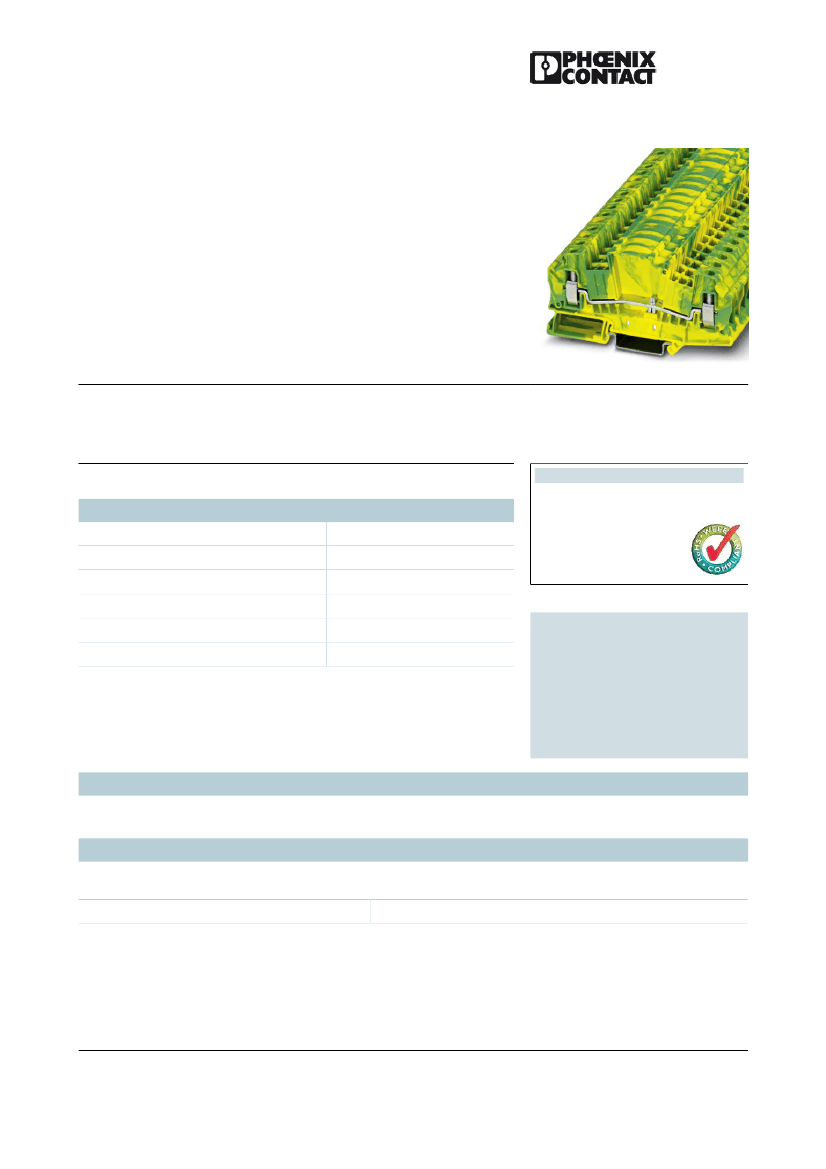

UTMED 6-PE
Order No.: 3047442
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3047442
Feed-through terminal block, Type of connection: Screw connection,
Cross section: 0.2 mm² - 10 mm², AWG 24 - 8, Width: 8.2 mm,
Color: green-yellow
Product notes
Commercial data
GTIN (EAN)
sales group
Pack
Customs tariff
Weight/Piece
Catalog page information
4046356291118
A843
50 pcs.
85369010
0.033272 KG
Page 61 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
04/26/2007
Product description
Test disconnect terminal block
Technical data
General
Number of levels
1
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 6
Oct 28, 2010
UTMED 6-PE
Order No.: 3047442
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3047442
Number of connections
Color
Insulating material
Inflammability class acc. to UL 94
Bridge accessories
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Rated surge voltage
Surge voltage category
Insulating material group
Connection in acc. with standard
Open side panel
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2
green-yellow
PA
V0
3030323 FBS 10-8
8.2 mm
100.8 mm
49.6 mm
57.1 mm
6 kV
III
I
IEC 60947-7-2
ja
0.2 mm²
10 mm²
0.2 mm²
10 mm²
24
8
0.25 mm²
6 mm²
0.25 mm²
6 mm²
0.2 mm²
2.5 mm²
0.2 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 6
Oct 28, 2010
UTMED 6-PE
Order No.: 3047442
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3047442
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
2.5 mm²
0.5 mm²
4 mm²
0.25 mm²
2.5 mm²
Screw connection
10 mm
A5
M4
1.5 Nm
1.8 Nm
Certification
CUL
AWG/kcmil
UL
AWG/kcmil
Accessories
Item
Assembly
3034374
3034358
3047426
APH-ME
APT-ME
D-UTME 6
Designation
CUL, UL
24-8
24-8
Description
Cover profile carrier for mounting on NS 35/7.5 DIN rail for
attaching the cover profile AP-ME
Cover profile carrier for mounting on NS 35/7.5 DIN rail for
attaching the cover profile AP-ME
Cover, Length: 99.8 mm, Width: 2.2 mm, Height: 49.6 mm,
Color: gray
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 6
Oct 28, 2010
UTMED 6-PE
Order No.: 3047442
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3047442
Bridges
3032376
3032363
3032389
3030284
3030297
3030307
3030310
3032402
3030323
General
3034361
AP-ME METER
Cover profile, for covering terminal strips, snapped onto APT-
ME cover profile carrier or APH-ME end bracket. A cover profile
carrier should be positioned at the ends and at intervals of around
40 cm. Length supplied: 1 m
End clamp, Width: 8.2 mm, Color: gray
Jumper
Switching jumper, Length: 24.7 mm, Width: 16.4 mm,
Height: 47.42 mm, Number of positions: 2, Color: gray/orange
Switching jumper, Length: 24.7 mm, Width: 16.4 mm,
Height: 47.42 mm, Number of positions: 2, Color: gray/orange
Switching jumper, Length: 24.7 mm, Width: 24.6 mm,
Height: 47.42 mm, Number of positions: 3, Color: gray/orange
Switching jumper, Length: 24.7 mm, Width: 32.8 mm,
Height: 47.42 mm, Number of positions: 4, Color: gray/orange
FBS 1-4/8
FBS 1/3-8
FBS 1/3/5-8
FBS 2-8
FBS 3-8
FBS 4-8
FBS 5-8
FBS 1/4/7/10-8
FBS 10-8
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 10, Color: red
3034387
3032381
3034468
3034468
3032800
3034484
CARRIER 35-8
FBS 1/5-8
SB-ME 2-8
SB-ME 2-8
SB-ME 3-8
SB-ME 4-8
Plug/Adapter
3032774
3032787
3032729
3032758
3032790
3034455
3032732
3032761
3032745
3031005
PAI-4-FIX BK
PAI-4-FIX BN
PAI-4-FIX BU
PAI-4-FIX GN
PAI-4-FIX GY
PAI-4-FIX OG
PAI-4-FIX RD
PAI-4-FIX VT
PAI-4-FIX YE
PS-8
Test adapter, Color: black
Test adapter, Color: brown
Test adapter, Color: blue
Test adapter, Color: green
Test adapter, Color: gray
Test adapter, Length: 6.5 mm, Width: 6 mm, Height: 51 mm,
Color: orange
Test adapter, Color: red
Test adapter, Color: violet
Test adapter, Color: yellow
Test adapter, Color: red
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 6
Oct 28, 2010
UTMED 6-PE
Order No.: 3047442
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3047442
Tools
1205066
SZS 1,0X4,0 VDE
Screwdriver, bladed, VDE insulated, size: 1.0 x 4.0 x 100 mm, 2-
component grip, with non-slip grip
Diagrams/Drawings
Circuit diagram
