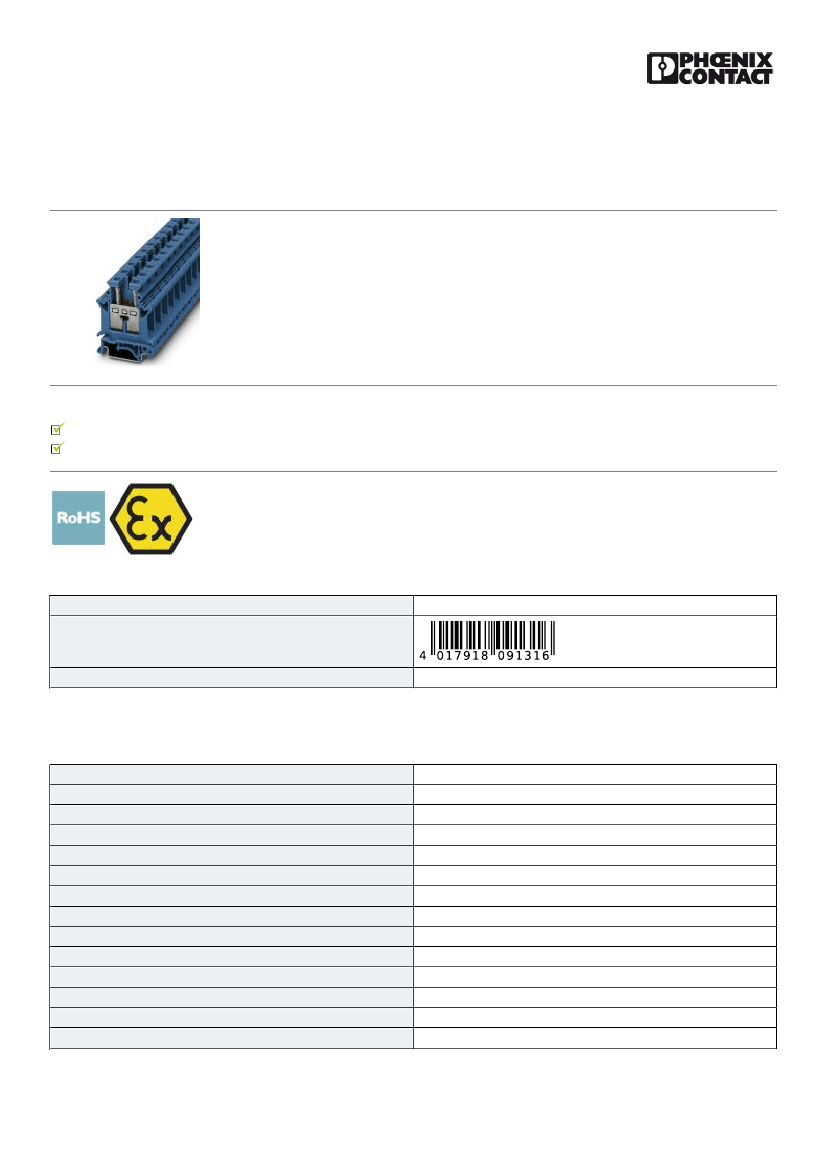

Feed-through terminal block - UK 16 N BU - 3006056
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Feed-through terminal block, nom. voltage: 800 V, nominal current: 76 A, connection method: Screw
connection, number of connections: 2, cross section:2.5 mm² - 25 mm², AWG: 14 - 4, width: 12.2 mm, color:
blue, mounting type: NS 35/7,5, NS 35/15, NS 32
Your advantages
All universal terminal blocks in the UK... series can also be used in the Ex e area according to IEC/EN 60079 as standard
The corresponding EC-type examination numbers for Ex approval can be found in the technical connection data
Key Commercial Data
Packing unit
GTIN
GTIN
4017918091316
50 pc
Technical data
General
Number of levels
Number of connections
Potentials
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
Degree of pollution
Overvoltage category
Insulating material group
Maximum power dissipation for nominal condition
Maximum load current
Nominal current I
N
1
2
1
16 mm²
blue
PA
V0
8 kV
3
III
I
2.43 W
101 A (with 25 mm² conductor cross section)
76 A
11/23/2018 Page 1 / 6
https://www.phoenixcontact.com/pi/products/3006056
Feed-through terminal block - UK 16 N BU - 3006056
Technical data
General
Nominal voltage U
N
Open side panel
Result of surge voltage test
Surge voltage test setpoint
Result of power-frequency withstand voltage test
Power frequency withstand voltage setpoint
Result of the test for mechanical stability of terminal points (5 x
conductor connection)
Result of bending test
Bending test rotation speed
Bending test turns
Bending test conductor cross section/weight
800 V
Yes
Test passed
9.8 kV
Test passed
2 kV
Test passed
Test passed
10 rpm
135
2.5 mm² / 0.7 kg
16 mm² / 2.9 kg
25 mm² / 4.5 kg
Tensile test result
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Conductor cross section tensile test
Tractive force setpoint
Result of tight fit on support
Tight fit on carrier
Setpoint
Result of voltage-drop test
Requirements, voltage drop
Result of temperature-rise test
Short circuit stability result
Conductor cross section short circuit testing
Short-time current
Result of thermal test
Proof of thermal characteristics (needle flame) effective duration
Relative insulation material temperature index (Elec., UL 746 B)
Temperature index of insulation material (DIN EN 60216-1 (VDE
0304-21))
Static insulating material application in cold
Behavior in fire for rail vehicles (DIN 5510-2)
Flame test method (DIN EN 60695-11-10)
Oxygen index (DIN EN ISO 4589-2)
NF F16-101, NF F10-102 Class I
NF F16-101, NF F10-102 Class F
Test passed
2.5 mm²
50 N
16 mm²
100 N
25 mm²
135 N
Test passed
NS 32/NS 35
10 N
Test passed
≤ 3.2 mV
Test passed
Test passed
16 mm²
1.92 kA
Test passed
30 s
130 °C
130 °C
-60 °C
Test passed
V0
>32 %
2
2
11/23/2018 Page 2 / 6
https://www.phoenixcontact.com/pi/products/3006056
Feed-through terminal block - UK 16 N BU - 3006056
Technical data
General
Surface flammability NFPA 130 (ASTM E 162)
Specific optical density of smoke NFPA 130 (ASTM E 662)
Smoke gas toxicity NFPA 130 (SMP 800C)
Calorimetric heat release NFPA 130 (ASTM E 1354)
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
passed
passed
passed
28 MJ/kg
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Dimensions
Width
End cover width
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
12.2 mm
1.5 mm
42.5 mm
54 mm
61.5 mm
59 mm
Connection data
Connection method
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Min. AWG conductor cross section, flexible
Max. AWG conductor cross section, flexible
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
Screw connection
IEC 60947-7-1
2.5 mm²
25 mm²
14
4
4 mm²
16 mm²
12
6
1.5 mm²
1.5 mm²
16 mm²
1.5 mm²
6 mm²
1.5 mm²
4 mm²
0.75 mm²
10 mm²
1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 16 mm²
11/23/2018 Page 3 / 6
https://www.phoenixcontact.com/pi/products/3006056
Feed-through terminal block - UK 16 N BU - 3006056
Technical data
Connection data
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Connection in acc. with standard
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
6 mm²
IEC/EN 60079-7
2.5 mm²
25 mm²
22
4
4 mm²
16 mm²
11 mm
B7
M4
1.5 Nm
1.8 Nm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
Fire protection for rail vehicles (DIN EN 45545-2) R22
Fire protection for rail vehicles (DIN EN 45545-2) R23
Fire protection for rail vehicles (DIN EN 45545-2) R24
Fire protection for rail vehicles (DIN EN 45545-2) R26
CSA
IEC 60947-7-1
V0
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
HL 1 - HL 3
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Circuit diagram
Approvals
Approvals
Approvals
DNV GL / CSA / CCA / UL Recognized / KEMA-KEUR / cUL Recognized / IECEE CB Scheme / EAC / cULus Recognized
11/23/2018 Page 4 / 6
https://www.phoenixcontact.com/pi/products/3006056
Feed-through terminal block - UK 16 N BU - 3006056
Approvals
Ex Approvals
IECEx / ATEX / UL Recognized / cUL Recognized / GL / EAC Ex / cULus Recognized
Approval details
DNV GL
http://exchange.dnv.com/tari/
TAE00001CT
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
CCA
Nominal voltage UN
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
600 V
85 A
22-4
800 V
16
13631
NTR-NL 3072
UL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
600 V
85 A
22-4
FILE E 60425
KEMA-KEUR
Nominal voltage UN
mm²/AWG/kcmil
http://www.dekra-certification.com
800 V
16
2183462.01
cUL Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
600 V
85 A
22-4
FILE E 60425
11/23/2018 Page 5 / 6
