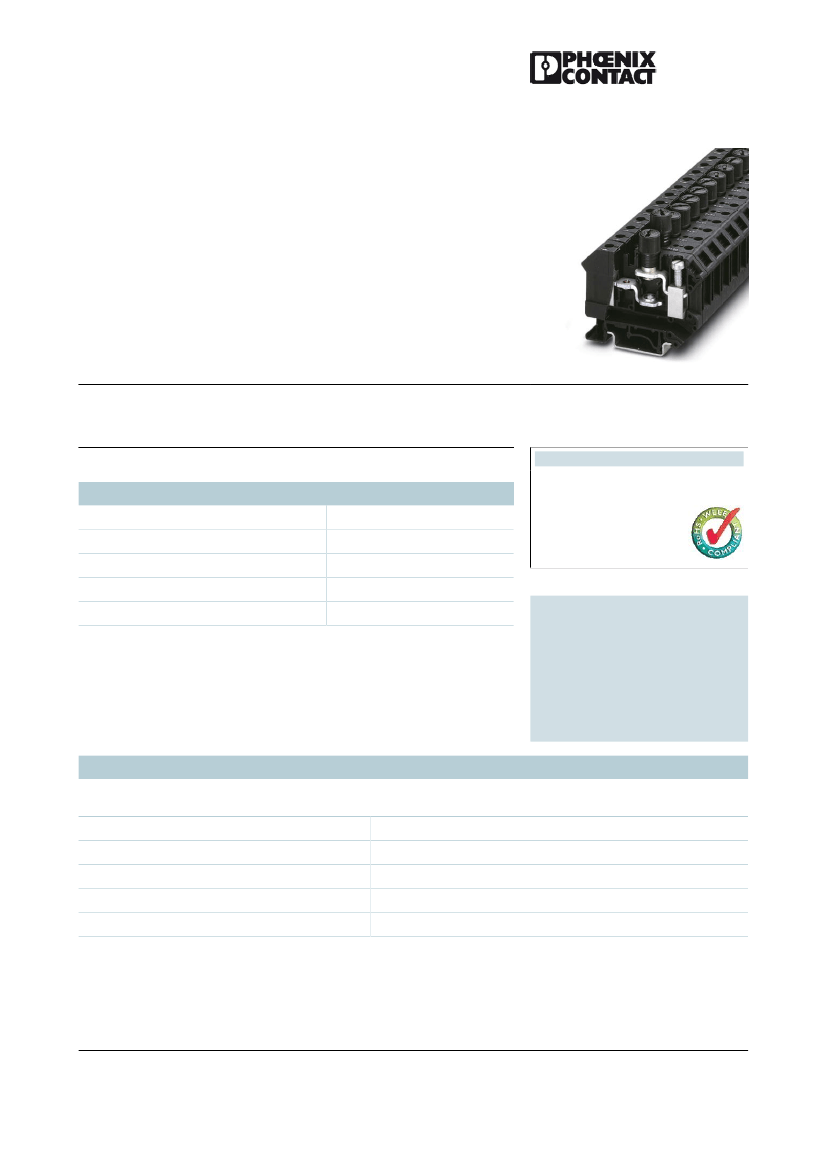

UK 10-DREHSILED 24 (6,3X32)
Order No.: 3005646
The illustration shows version UK 10-DREHSI (5x20)
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005646
Fuse terminal block for cartridge fuse insert, cross section: 0.5 - 16
mm², AWG: 24 - 6, width: 12 mm, color: black
Product notes
Commercial data
EAN
Pack
Customs tariff
Weight/Piece
Catalog page information
4017918091231
50 pcs.
85369010
0.03489 KG
Page 375 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
WEEE/RoHS-compliant since:
11/01/2006
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class acc. to UL 94
1
2
black
PA
V2
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 6
Mar 24, 2010
UK 10-DREHSILED 24 (6,3X32)
Order No.: 3005646
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005646
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
Height NS 32
Technical data
Fuse
Fuse type
LED voltage range
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
G / 6,3 x 32
Glass
15 V AC/DC ... 30 V AC/DC
4 kV
3
III
I
IEC 60947-7-3
10 A
500 V
800 V (As a disconnect terminal block)
LED voltage range
LED current range
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
0.5 mm²
16 mm²
0.5 mm²
16 mm²
20
6
0.5 mm²
10 mm²
0.5 mm²
10 mm²
0.5 mm²
15 V AC/DC ... 30 V AC/DC
1 mA ... 2.5 mA
12 mm
62 mm
57.2 mm
64.7 mm
62.1 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 6
Mar 24, 2010
UK 10-DREHSILED 24 (6,3X32)
Order No.: 3005646
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005646
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Cross-section with insertion bridge, solid max.
Cross-section with insertion bridge, stranded max.
Type of connection
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
4 mm²
0.5 mm²
4 mm²
0.5 mm²
4 mm²
0.5 mm²
10 mm²
10 mm²
10 mm²
Screw connection
11 mm
B6
M4
1.5 Nm
1.8 Nm
Certification
UL
Nominal voltage U
N
Nominal current I
N
AWG/kcmil
CB, CCA, GOST, KEMA, UL
300 V
20 A
24-6
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 6
Mar 24, 2010
UK 10-DREHSILED 24 (6,3X32)
Order No.: 3005646
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005646
Accessories
Item
Assembly
3022218
CLIPFIX 35
Snap-on end bracket, for 35 mm NS 35/7.5 or NS 35/15 DIN
rail, can be fitted with Zack strip ZB 8 and ZB 8/27, terminal strip
marker KLM 2 and KLM, width: 9.5 mm, color: gray
End clamp, for assembly on NS 32 or NS 35/7,5 DIN rail
G rail 32 mm (NS 32)
G-profile DIN rail, deep-drawn, material: Copper, unperforated,
height 15 mm, width 32 mm, length 2 m
G-profile DIN rail, material: Copper, unperforated, height 15 mm,
width 32 mm, length 2 m
G-profile DIN rail, material: Steel, perforated, height 15 mm, width
32 mm, length 2 m
G-profile DIN rail, material: Steel, unperforated, height 15 mm,
width 32 mm, length 2 m
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, galvanized and passivated with a thick
layer, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35
mm, length: 2 m
DIN rail, deep-drawn, high profile, unperforated, 1.5 mm thick,
material: Aluminum, height 15 mm, width 35 mm, length 2 m
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15
mm, width 35 mm, length: 2 m
DIN rail, material: Steel, perforated, height 15 mm, width 35 mm,
length: 2 m
DIN rail, material: Steel, unperforated, height 15 mm, width 35
mm, length: 2 m
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15
mm, width 35 mm, length: 2 m
Designation
Description
1201442
1201028
1201280
1201358
1201002
1201015
0801762
0801733
0801681
1201756
1201895
1201730
1201714
1201798
E/UK
NS 32 AL UNPERF 2000MM
NS 32 CU/120QMM UNPERF
2000MM
NS 32 CU/35QMM UNPERF
2000MM
NS 32 PERF 2000MM
NS 32 UNPERF 2000MM
NS 35/ 7,5 CU UNPERF
2000MM
NS 35/ 7,5 PERF 2000MM
NS 35/ 7,5 UNPERF 2000MM
NS 35/15 AL UNPERF 2000MM
NS 35/15 CU UNPERF 2000MM
NS 35/15 PERF 2000MM
NS 35/15 UNPERF 2000MM
NS 35/15-2,3 UNPERF 2000MM
Bridges
3006137
0200075
0203454
Marking
1051003
ZB 6:UNBEDRUCKT
Zack strip, unprinted, strips with 10 labels for individual labeling
with M-PEN or CMS system, for terminal block width: 6.2 mm,
color: white
EB 10-12
FBI 2-12
FBI 10-12
Cross connector/bridge, Number of positions: 10, Color: gray
Cross connector/bridge, Number of positions: 2, Color: aluminum
Cross connector/bridge, Number of positions: 10, Color: silver
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 6
Mar 24, 2010
UK 10-DREHSILED 24 (6,3X32)
Order No.: 3005646
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3005646
Plug/Adapter
0303299
0303406
0303354
0303419
0303370
0303396
0303325
0303383
0303312
0303367
Tools
1205066
SZS 1,0X4,0
Screwdriver, bladed, matches all screw terminal blocks with 10
mm² and 16 mm² connection cross section, blade: 1.0 x 4.0 mm
PSB 4/7/6
PSBJ 4/15/6 BK
PSBJ 4/15/6 BU
PSBJ 4/15/6 FARBLOS
PSBJ 4/15/6 GN
PSBJ 4/15/6 GY
PSBJ 4/15/6 RD
PSBJ 4/15/6 VT
PSBJ 4/15/6 WH
PSBJ 4/15/6 YE
Female test connector, Color: silver
Female test connector, Color: black
Female test connector, Color: blue
Female test connector, Color: transparent
Female test connector, Color: green
Female test connector, Color: gray
Female test connector, Color: red
Female test connector, Color: violet
Female test connector, Color: white
Female test connector, Color: yellow
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 6
Mar 24, 2010
