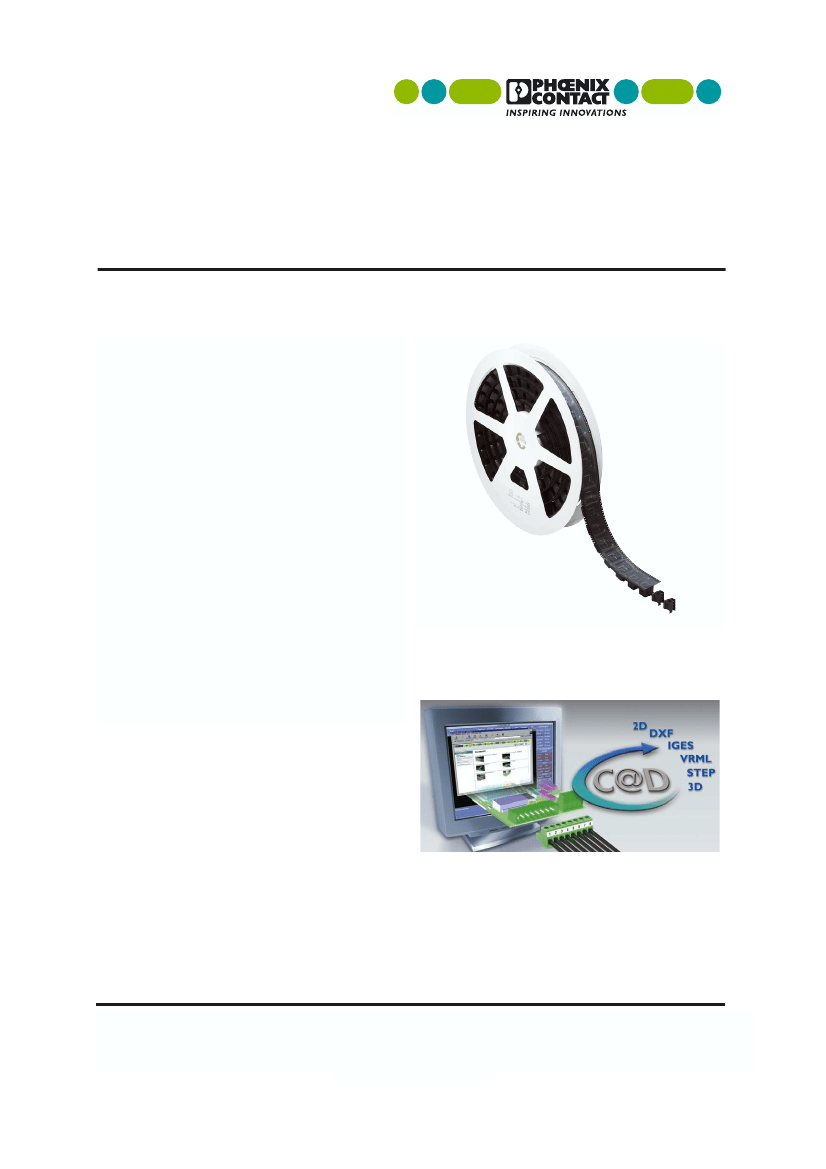

Orthogonal COMBICON headers
for THR processes MSTBO 2,5/4-G1... THR R44 BK
The orthogonal COMBICON MSTBO 2,5/... headers
with a 5.0 pitch are now available for use in the Through
Hole Reflow process.
Components can be mounted automatically on the PCB
without any problems.
The headers are made of highly temperature-resistant
polyamide and are suitable for use in lead-free solder
processes.
There is a 4-pos. version available and versions with
two and three positions will follow shortly.
The integrated suction area allows cost and time-
effective processing, since it is no longer necessary to
remove a suction pad after processing.
The headers are supplied in tapes, so that common
feeder systems can be used. They can also be supplied
in bulk.
COMBICON Select
The COMBICON search engine with CAD downloading
COMBICON Select – the printed circuit board connection software
supports your workflow from the PCB and housing layout to the
ordering process with:
–Systematic and fast selection of products
–Universal Internet aided engineering with extensive
CAD downloading
–Easy-to-use e-shopping functions.
select.phoenixcontact.com/combicon
Phoenix Contact GmbH & Co. KG • 32823 Blomberg, Germany
Phone +49 52 35 3-00 • Fax +49 52 35 3-4 12 00 • www.phoenixcontact.com
Local Contact: www.phoenixcontact.com/salesnetwork
PHOENIX CONTACT page 1 of 2

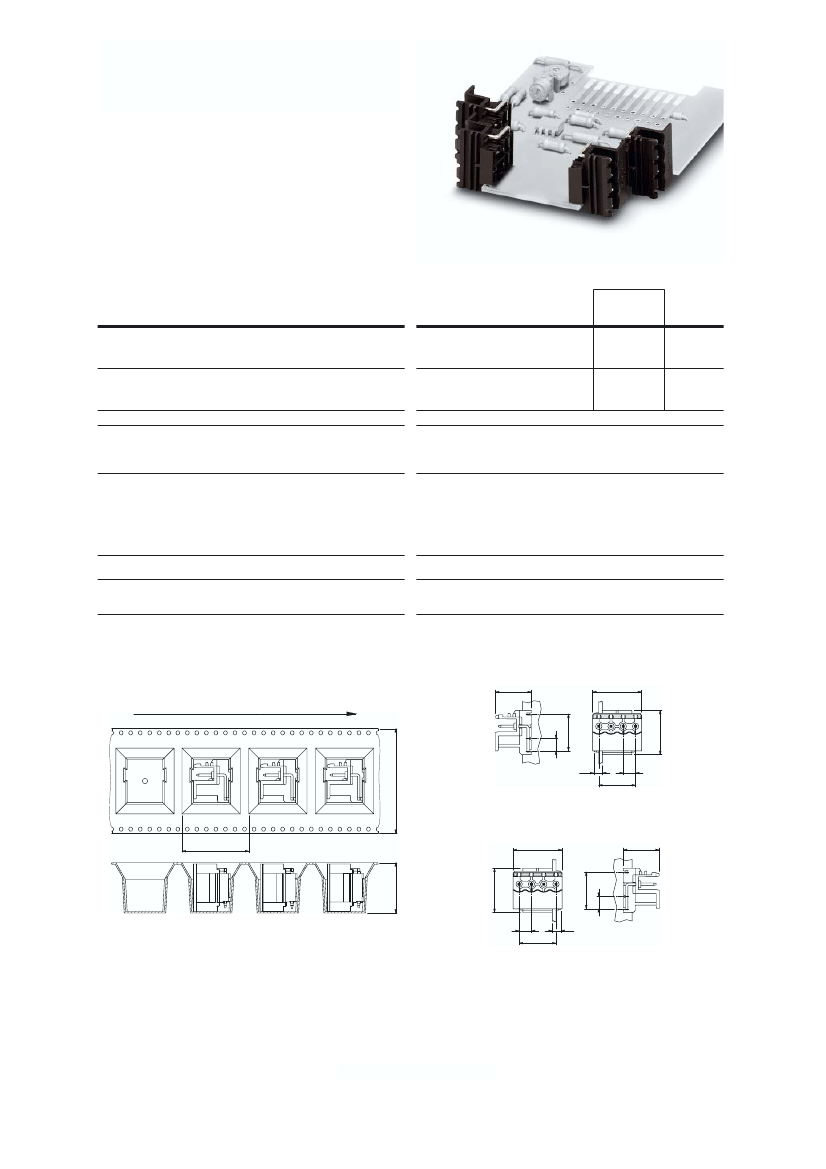

Orthogonal COMBICON headers
MSTBO 2,5/4-G1...THR R44 BK
5.0 mm Pitch
Description
COMBICON header
, for soldering onto the PCB,
color: black, „PCB on the left“
COMBICON header
, for soldering onto the PCB,
color: black, „PCB on the right“
Technical data
No. of pos.
Dim.
a
[mm]
15
Type
Order No.
Pcs./Pkt.
4
MSTBO 2,5/4-G1L THR R44 BK
26 97 19 4
100
4
15
MSTBO 2,5/4-G1L THR R44 BK
26 97 20 4
100

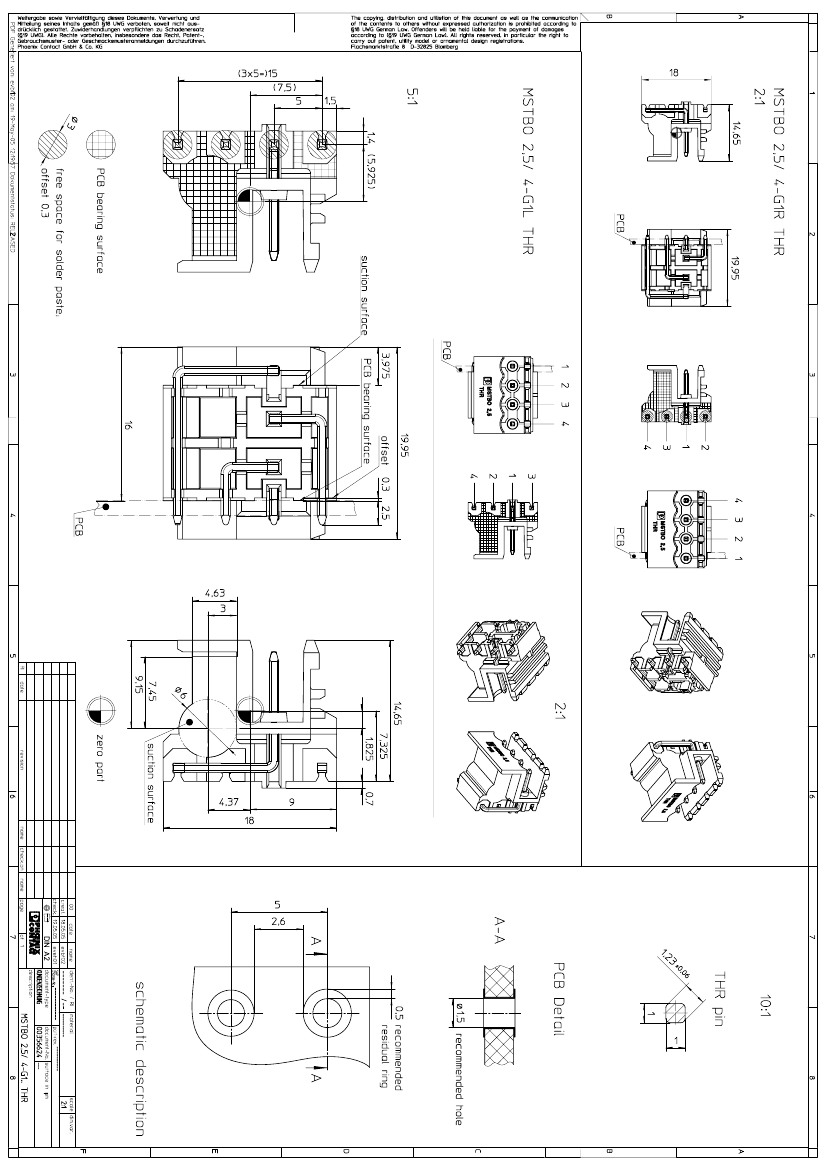

Dimensions
Pitch
[mm]
Hole diameter
[mm]
Pin dimensions
[mm]x[mm]
Technical data in accordance with IEC/ DIN VDE
Insulating material group
–
Surge voltage category / contamination class
–/–
Rated voltage
[V]
Rated surge voltage
[kV]
Nominal current / cross section
[A]/[mm
2
]
Maximum load current / cross section
[A]/[mm
2
]
Insulating material
Inflammability class in acc. with UL 94
Approval data (UL/CUL and CSA)
Nominal voltage / current / conductor sizes
UL/CUL: [V]/[A]/AWG
see description
5.0
1.5
1x1
I
III / 2
320
4
16 / ––
16 / ––
PA
V0
300 / 10 / ---
III / 3
250
4
II / 2
400
4

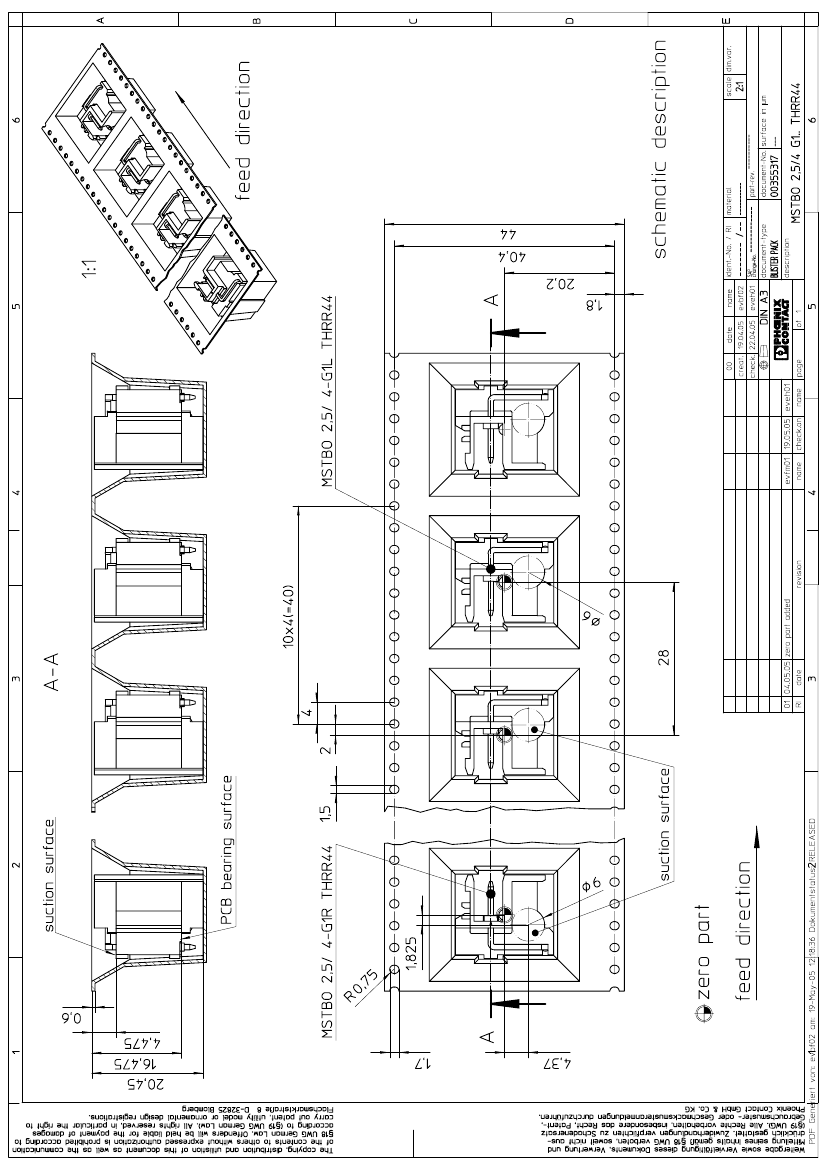

Feed direction R44
14,65
19,95
15
5
3,95
5
15
44
MSTBO 2,5/4-G1L THR R44 BK
TNR:102623-02_en/15.10.05
Phoenix Contact 2005
28
19,95
14,65
21,05
18
15
5
15
3,95
MSTBO 2,5/4-G1R THR R44 BK
PHOENIX CONTACT page 2 of 2
