https://www.phoenixcontact.com/us/produkte/1795776
Printed-circuit board connector - GMSTB 2,5/ 2-STF-7,62
EX - 1795776
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Nominal current (Ex): 12 A,
Nominal voltage (Ex): 275 V, Number of positions: 2, Pitch: 7.62 mm, Connection method: Screw
connection, Color: green, Contact surface: Tin

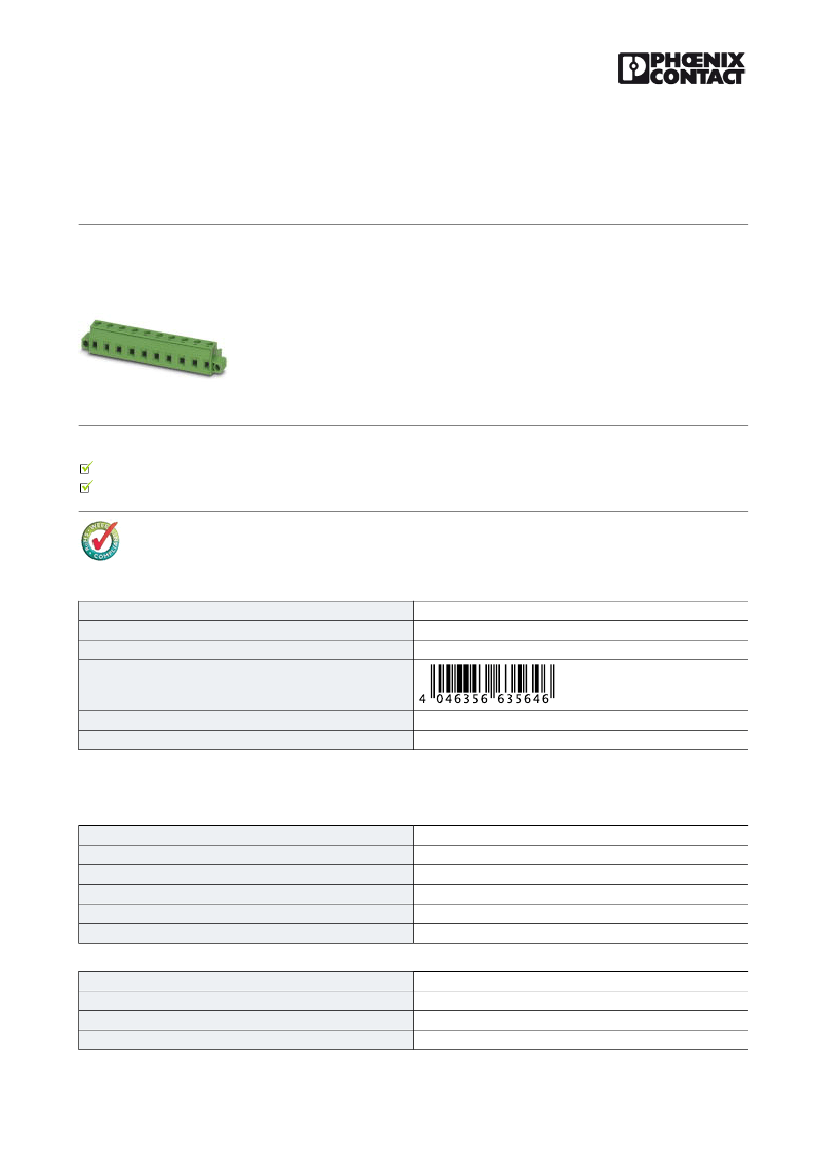

The figure shows a 10-position
version of the product
Why buy this product
Plug-in direction parallel to the conductor axis
Ex approval for voltages up to 275/352 V, observe voltage specifications for headers
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85366990
GERMANY
0
1
Page 349 (CC-2011)
Technical data
Dimensions / positions
Pitch
Dimension a
Number of positions
Screw thread
Tightening torque, min
Tightening torque max
7.62 mm
7.62 mm
2
M3
0.5 Nm
0.6 Nm
Technical data
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
GMSTB 2,5/..-STF-EX
I
6 kV
6 kV
06.09.2012 Page 1 / 3
https://www.phoenixcontact.com/us/produkte/1795776
Printed-circuit board connector - GMSTB 2,5/ 2-STF-7,62
EX - 1795776
Technical data
Technical data
Rated surge voltage (II/2)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current IN
Nominal voltage UN
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Internal cylindrical gage
Stripping length
6 kV
630 V
1000 V
EN-VDE
12 A
400 V
2.5 mm²
12 A
PA
V0
A3
7 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, min.
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
0.2 mm²
2.5 mm²
0.2 mm²
2.5 mm²
0.25 mm²
2.5 mm²
0.25 mm²
2.5 mm²
24
12
0.2 mm²
1 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1 mm²
0.5 mm²
1 mm²
06.09.2012 Page 2 / 3
