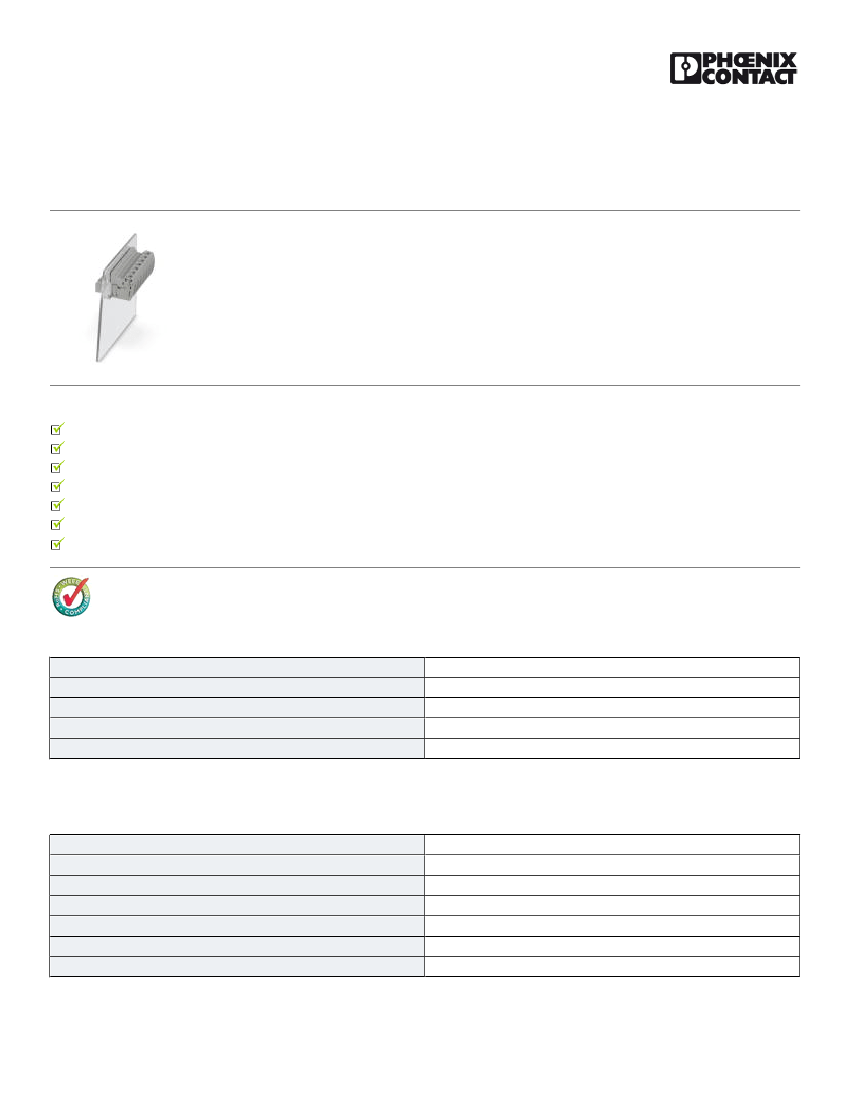

Panel feed-through terminal block - UW 4-POT-SCM/S - 3056909
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Panel feed-through terminal block, Connection method: Screw connection, Slip-on connection, Load current : 41
A, Cross section: 0.2 mm² - 6 mm², AWG 24 - 10, Width: 8.1 mm, Color: gray
Product Features
Easy grouping with engagement pin versions
Both terminal halves can be easily assembled by simply snapping them together
Touch-proof insulating housing in a new design
Molded type ensures maximum seal and is available with a slip-on or solder connection.
Universal screw connection with screw locking
Spacer plates increase clearances and creepage distances
Automatic compensation of the panel thickness via the snap principle integrated in the insulation housing
Key Commercial Data
Packing unit
Minimum order quantity
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
50 pc
8.0 g
85369010
China
Technical data
General
Number of levels
Number of connections
Nominal cross section
Color
Insulating material
Flammability rating according to UL 94
Rated surge voltage
1
2
4 mm²
gray
PA
V0
6 kV
12/15/2015 Page 1 / 5
https://www.phoenixcontact.com/us/products/3056909
Panel feed-through terminal block - UW 4-POT-SCM/S - 3056909
Technical data
General
Pollution degree
Overvoltage category
Insulating material group
Ambient temperature (operation)
Connection in acc. with standard
Nominal current I
N
Maximum load current
Nominal voltage U
N
Open side panel
Number of positions
3
III
I
-40 °C ... 105 °C
IEC 60947-7-1
32 A
41 A (with 6 mm² conductor cross section)
800 V (with spacer plate)
nein
1
Dimensions
Width
Plate thickness
8.1 mm
1 mm ... 4 mm
Connection data
Connection side
Connection method
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Conductor cross section flexible, with ferrule without plastic sleeve min.
Conductor cross section flexible, with ferrule without plastic sleeve max.
Conductor cross section flexible, with ferrule with plastic sleeve min.
Conductor cross section flexible, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
Outside
Screw connection
0.2 mm²
6 mm²
0.2 mm²
4 mm²
24
10
0.25 mm²
4 mm²
0.25 mm²
4 mm²
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules with plastic
2.5 mm²
sleeve, max.
12/15/2015 Page 2 / 5
https://www.phoenixcontact.com/us/products/3056909
Panel feed-through terminal block - UW 4-POT-SCM/S - 3056909
Technical data
Connection data
Cross section with insertion bridge, solid max.
Cross section with insertion bridge, stranded max.
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Connection side
Connection method
Slip-on connection
4 mm²
2.5 mm²
10 mm
A4
M3
0.6 Nm
0.8 Nm
Inside
Slip-on connection
6.3 x 0.8 mm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
UL
IEC 60947-7-1
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141131
27141131
27141134
27141134
27141134
27141134
27141134
ETIM
ETIM 4.0
ETIM 5.0
EC001283
EC001283
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
12/15/2015 Page 3 / 5
https://www.phoenixcontact.com/us/products/3056909
Panel feed-through terminal block - UW 4-POT-SCM/S - 3056909
Approvals
Approvals
Approvals
UL Recognized / EAC
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-10
30 A
300 V
C
24-10
30 A
300 V
D
24-10
5A
600 V
EAC

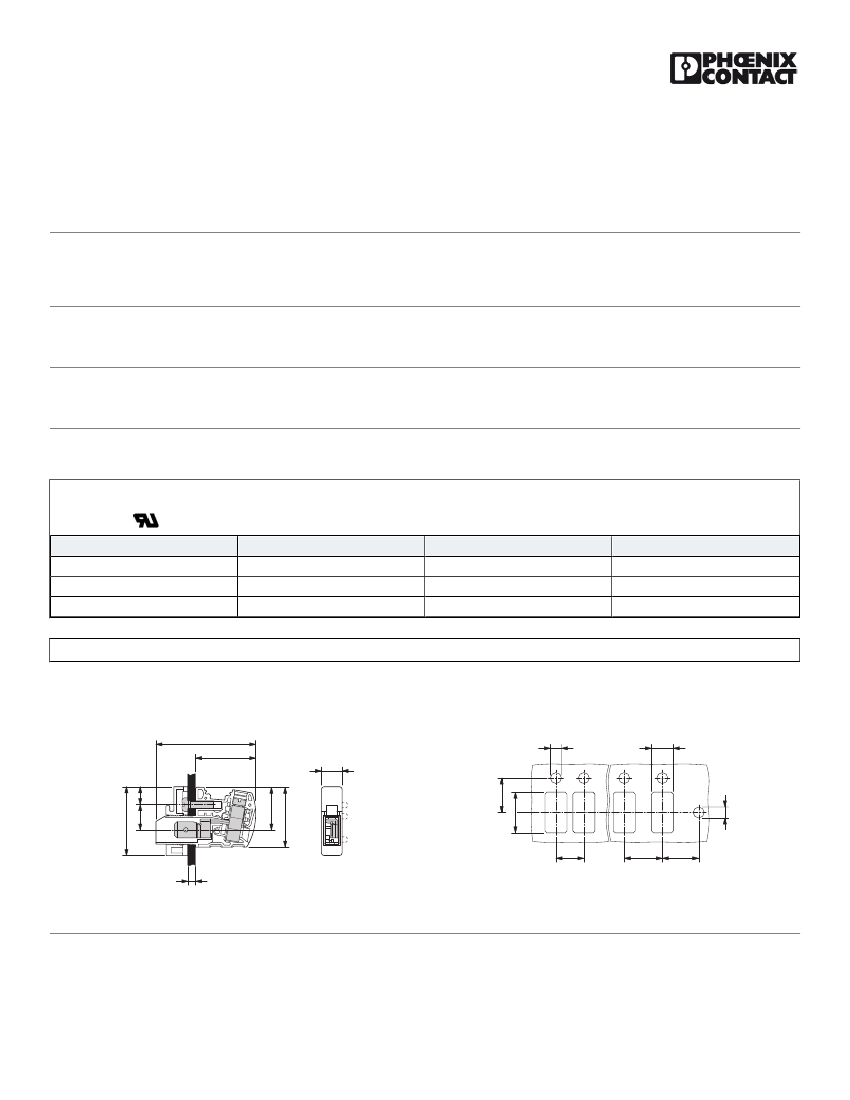

Drawings
Dimensional drawing
39,1
23,6
8,1
10
Ø4,5
11,8
8,1
11,1**
10,55*
Dimensional drawing
Ø3,2
6,4
7
16,8
27
1-4
23,5
10
* Only when using the UW...‑F flange plate
** Dimensions when using the DP-UW... spacer plate
12/15/2015 Page 4 / 5
