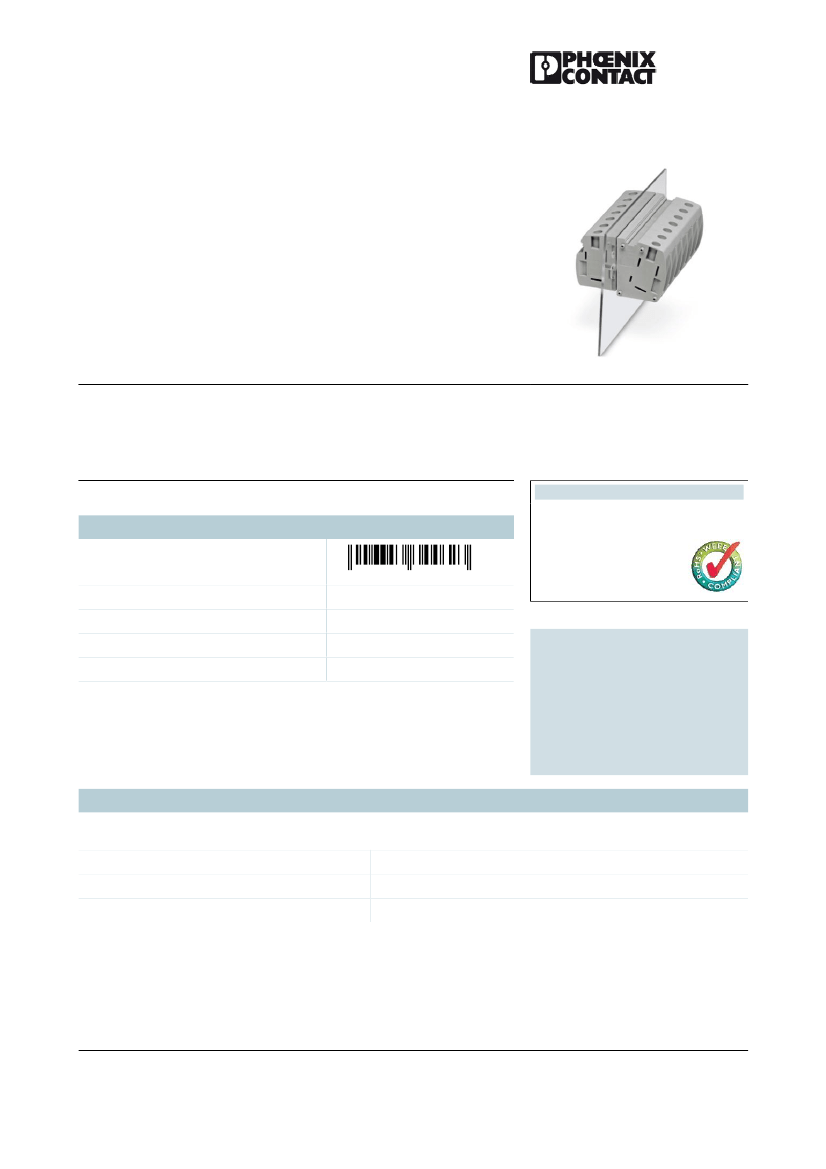

UW 25/S
Order No.: 3073377
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3073377
Feed-through terminal block, Connection method: Screw connection,
Load current : 125 A, Cross-section: 6 mm² - 35 mm², Connection
direction of the conductor to plug-in direction: 0 °, Width: 15.1 mm,
Color: gray
Product notes
Commercial data
GTIN (EAN)
4
046356
344623
WEEE/RoHS-compliant since:
02/19/2008
sales group
Pack
Customs tariff
Catalog page information
A420
25 pcs.
85369010
Page 52 (NTK-2010)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
1
2
gray
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 5
May 9, 2011
UW 25/S
Order No.: 3073377
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3073377
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
PA
V0
15.1 mm
125 A
6 kV
3
III
I
IEC 60947-7-1
101 A
800 V with spacer plate
6 mm²
35 mm²
10 mm²
25 mm²
10
2
4 mm²
25 mm²
4 mm²
25 mm²
2.5 mm²
10 mm²
4 mm²
10 mm²
2.5 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 5
May 9, 2011
UW 25/S
Order No.: 3073377
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3073377
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Certificates / Approvals
10 mm²
2.5 mm²
10 mm²
Screw connection
19 mm
B7
M5
4 Nm
4.5 Nm
Certification
UL
Accessories
Item
General
3074402
3074075
3074541
Marking
0828295
TMT (EX9,5)R
Terminal marking with 9.5 mm strip height, continuous, without
color print, for all terminals with ZB or ZBF groove, can be labeled
using a thermal transfer printer, 1 roll = 50 m
Marker for terminal blocks, unperforated, unprinted, for all terminal
blocks with ZB or ZBF groove, can be labeled with thermal
transfer printer, 1 roll = 1000 strips, strip height: 6.4 mm, strip
width 101.5 mm
Zack marker strip, unprinted: 5-section, for individual labeling with
M-PEN, ZB-T or CMS system, sufficient for 100 terminal blocks,
for a terminal width of 15 mm, color: White
DP-UW 25
POT-UW 25
UW 25-F
Spacer plate, Color: gray
Sealing plate, Color: gray
Flange cover, Color: gray
Designation
Description
0816605
TMT 100 R
0811972
ZB 15:UNBEDRUCKT
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 5
May 9, 2011
UW 25/S
Order No.: 3073377
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3073377
0811202
ZBF 15:UNBEDRUCKT
Zack strip, flat, unprinted, 5-section, divisible, for labeling by the
customer
Tools
1205079
SZS 1,0X6,5 VDE
Screwdriver, bladed, VDE insulated, size: 1.0 x 6.5 x 150 mm, 2-
component grip, with non-slip grip
Diagrams/Drawings

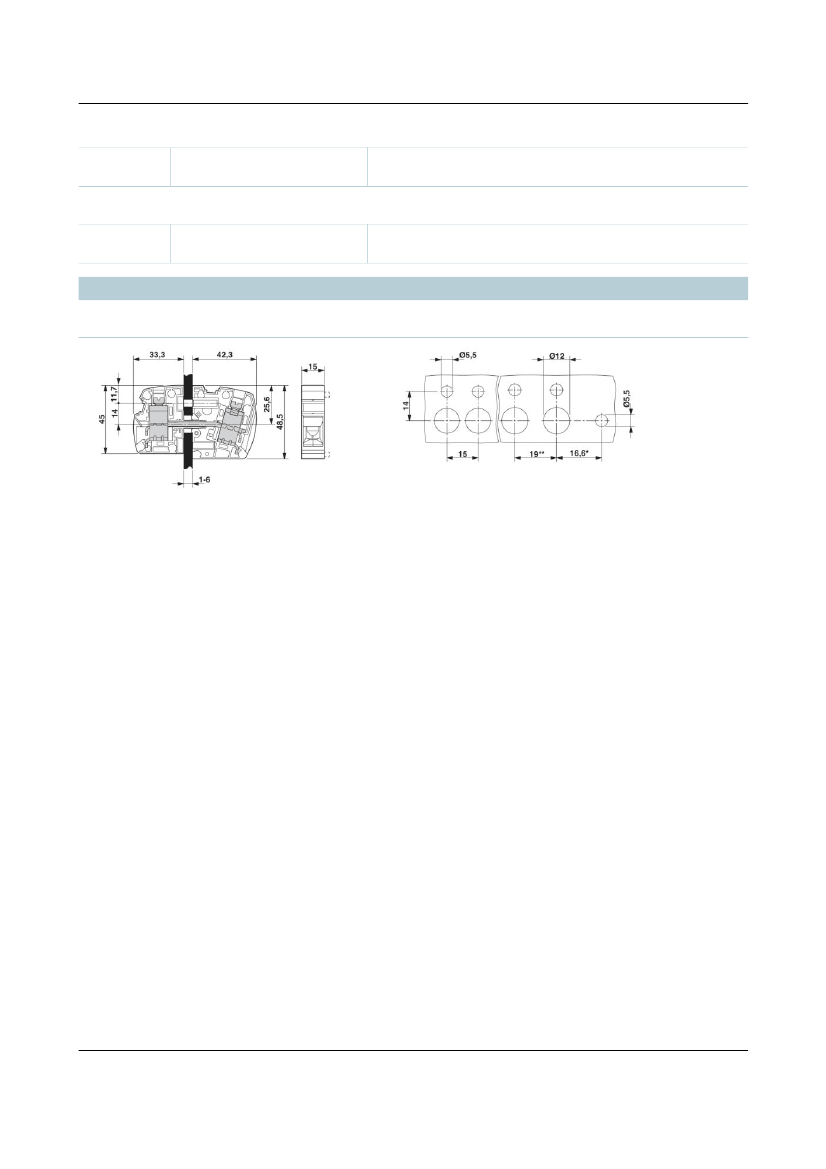

Dimensioned drawing
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 5
May 9, 2011
UW 25/S
Order No.: 3073377
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3073377
Address
PHOENIX CONTACT Inc., USA
586 Fulling Mill Road
Middletown, PA 17057,USA
Phone (800) 888-7388
Fax (717) 944-1625
http://www.phoenixcon.com
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 5 / 5
May 9, 2011
