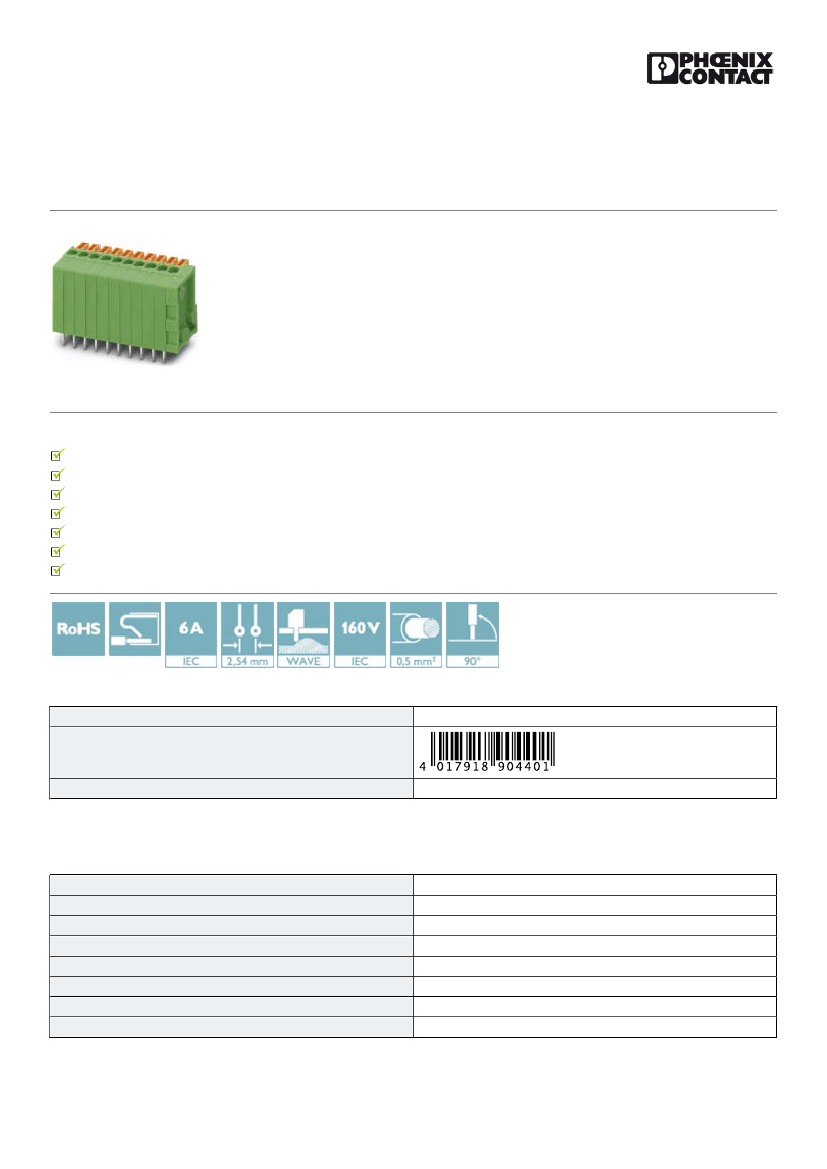

PCB terminal block - FFKDSA1/V-2,54-16 - 1789074
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB terminal block, nominal current: 6 A, nom. voltage: 160 V, pitch: 2.54 mm, number of positions: 16,
connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection
direction: 90 °, color: green. The article can be aligned to create different nos. of positions!
The figure shows the 10-position
version
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Operation and conductor connection from one direction enable integration into front of device
Two solder pins reduce the mechanical strain on the soldering spots
The latching on the side enables various numbers of positions to be combined
Vertical connection enables multi-row arrangement on the PCB
Key Commercial Data
Packing unit
GTIN
GTIN
4017918904401
10 pc
Technical data
Dimensions
Length [ l ]
Pitch
Dimension a
Width [ w ]
Height
Height [ h ]
Solder pin [P]
Pin spacing
12.6 mm
2.54 mm
38.1 mm
43.14 mm
13.6 mm
17 mm
3.4 mm
5.08 mm
11/23/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1789074
PCB terminal block - FFKDSA1/V-2,54-16 - 1789074
Technical data
Dimensions
Hole diameter
1.1 mm
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Flammability rating according to UL 94
Stripping length
Number of positions
FFKDS(A) 0,5/..-V
I
2.5 kV
2.5 kV
2.5 kV
63 V
160 V
320 V
EN-VDE
6A
0.5 mm²
6A
PA
V0
11 mm
16
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
0.14 mm²
0.5 mm²
0.14 mm²
0.5 mm²
26
20
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
CSA
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
11/23/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1789074
PCB terminal block - FFKDSA1/V-2,54-16 - 1789074
Drilling diagram
0,9
2,54
Dimensional drawing
12,6
1,1
5,08
2,8
3,4
13,6
2,8
5,08
0,9
2,54
Approvals
Approvals
Approvals
CSA / EAC / cULus Recognized
Ex Approvals
Approval details
CSA
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://www.csagroup.org/services-industries/product-listing/
B
150 V
6A
20
13631
EAC
B
150 V
6A
26-20
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
mm²/AWG/kcmil
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19870330
