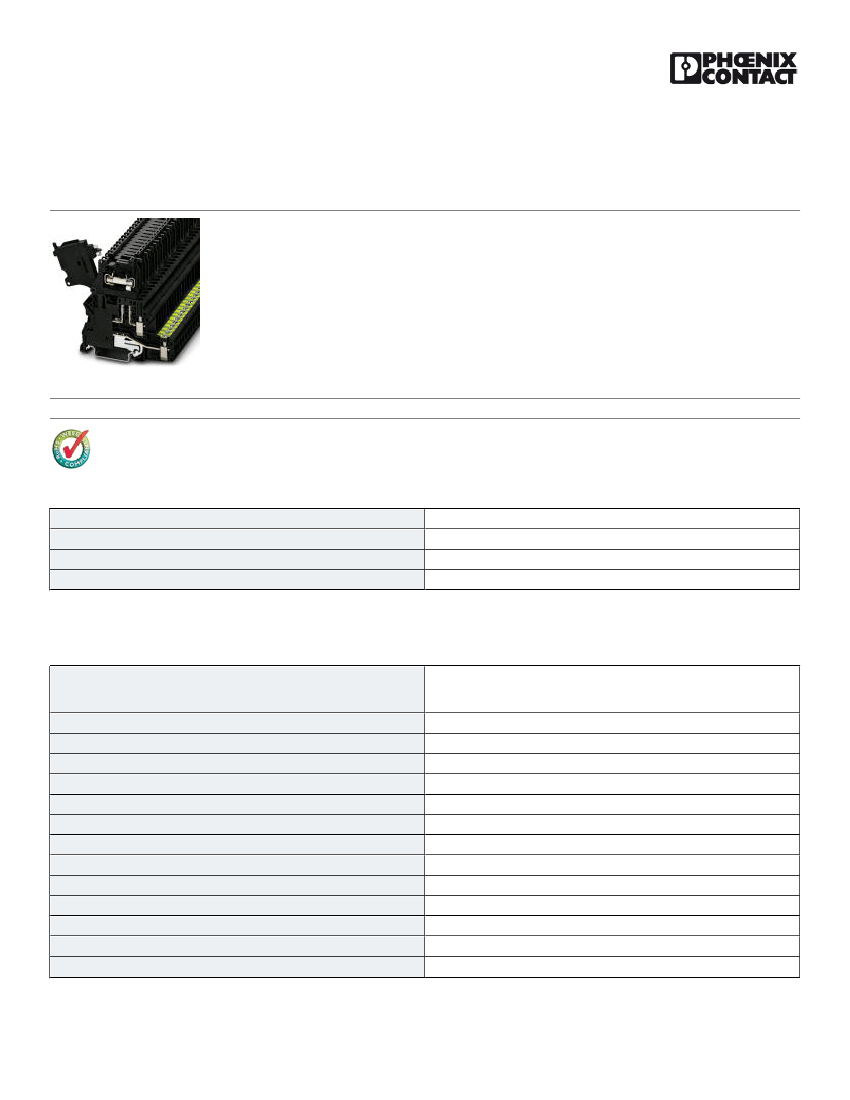

Fuse modular terminal block - UT 4-PE/HESILED 60 (5X20) - 3070066
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Lever-type fuse terminal block, black, for 5 x 20 mm G fuse inserts, with LED for 60 V DC
The figure shows a similar product
Key commercial data
Packing unit
Minimum order quantity
Custom tariff number
Country of origin
11
50 1
85369085
Poland
Technical data
General
Note
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Fuse
Fuse type
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
The current is determined by the fuse used, the voltage by the selected
LED.
If the fuse is faulty, the downstream circuit will not be disconnected.
1
2
black
PA
V0
G / 5 x 20
Glass
4 kV
3
III
I
IEC 60947-7-2 / IEC 60947-7-3
6.3 A
01.11.2013 Page 1 / 15
https://www.phoenixcontact.com/us/products/3070066
Fuse modular terminal block - UT 4-PE/HESILED 60 (5X20) - 3070066
Technical data
General
Nominal voltage U
N
Power loss
60 V
max. 1.6 W (With single arrangement of the fuse terminal block in the
event of overload)
max. 1.6 W (With interconnected arrangement of several fuse terminal
blocks in the event of overload)
max. 4 W (With single arrangement of the fuse terminal block in the event
of a short-circuit)
max. 2.5 W (With interconnected arrangement of several fuse terminal
blocks in the event of a short-circuit)
LED voltage range
LED current range
Open side panel
30 V AC/DC ... 60 V AC/DC
0.4 mA ... 0.86 mA
nein
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
70.8 mm
73 mm
80.5 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.14 mm²
6 mm²
0.5 mm²
6 mm²
26
10
0.14 mm²
4 mm²
0.14 mm²
4 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, min.
01.11.2013 Page 2 / 15
https://www.phoenixcontact.com/us/products/3070066
Fuse modular terminal block - UT 4-PE/HESILED 60 (5X20) - 3070066
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with plastic
1.5 mm²
sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
Screw connection
9 mm
A4
M3
0.6 Nm
0.8 Nm
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27141116
27141116
27141116
27141116
27141116
27141116
27141116
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000899
EC000899
EC000899
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211811
39121410
39121410
39121410
39121410
Approvals
Approvals
01.11.2013 Page 3 / 15
https://www.phoenixcontact.com/us/products/3070066
Fuse modular terminal block - UT 4-PE/HESILED 60 (5X20) - 3070066
Approvals
Approvals
GOST
Ex Approvals
Approvals submitted
Approval details
GOST
Accessories
Accessories
Bridge
Connection pin - VS - 3004207
Connection pin, Length: 1000 mm, Color: gray
Plug-in bridge - FBS 2-6 - 3030336
Plug-in bridge, Number of positions: 2, Color: red
01.11.2013 Page 4 / 15
https://www.phoenixcontact.com/us/products/3070066
Fuse modular terminal block - UT 4-PE/HESILED 60 (5X20) - 3070066
Accessories
Plug-in bridge - FBS 3-6 - 3030242
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge - FBS 4-6 - 3030255
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge - FBS 5-6 - 3030349
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge - FBS 10-6 - 3030271
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge - FBS 20-6 - 3030365
Plug-in bridge, Number of positions: 20, Color: red
01.11.2013 Page 5 / 15
