1719419 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> terminals> 1719419

1719419: Descriptionfixed terminal blocks 41a 800 V 12-pos grn PC terminal block; CategoryThe connector terminals; File Size90KB，6 Pages; ManufacturerPHOENIX CONTACT; Websitehttps://www.phoenixcontact.com; Environmental Compliance

Download Datasheet Parametric View All

1719419 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1719419	-	-	View	Buy Now

1719419 Overview

fixed terminal blocks 41a 800 V 12-pos grn PC terminal block

1719419 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Samacsys Confidence	4
Samacsys Status	Released
Samacsys PartID	446690
Samacsys Pin Count	12
Samacsys Part Category	Connector
Samacsys Package Category	Other
Samacsys Footprint Name	1719419-1
Samacsys Released Date	2019-07-27 10:57:27
Is Samacsys	N
Other features	PA, UL 94V0
Fastening method	SPRING LOADED
Manufacturer's serial number	1719419
Installation type	BOARD
Number of layers	1
Rows	1
Number of channels	12
Rated current	41 A
Rated voltage	800 V
safety certificate	UL
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK
Conductor cross section	6 mm2
Wire gauge	8 AWG
Base Number Matches	1

Preview

Download Datasheet

View All

https://www.phoenixcontact.com/us/products/1719419

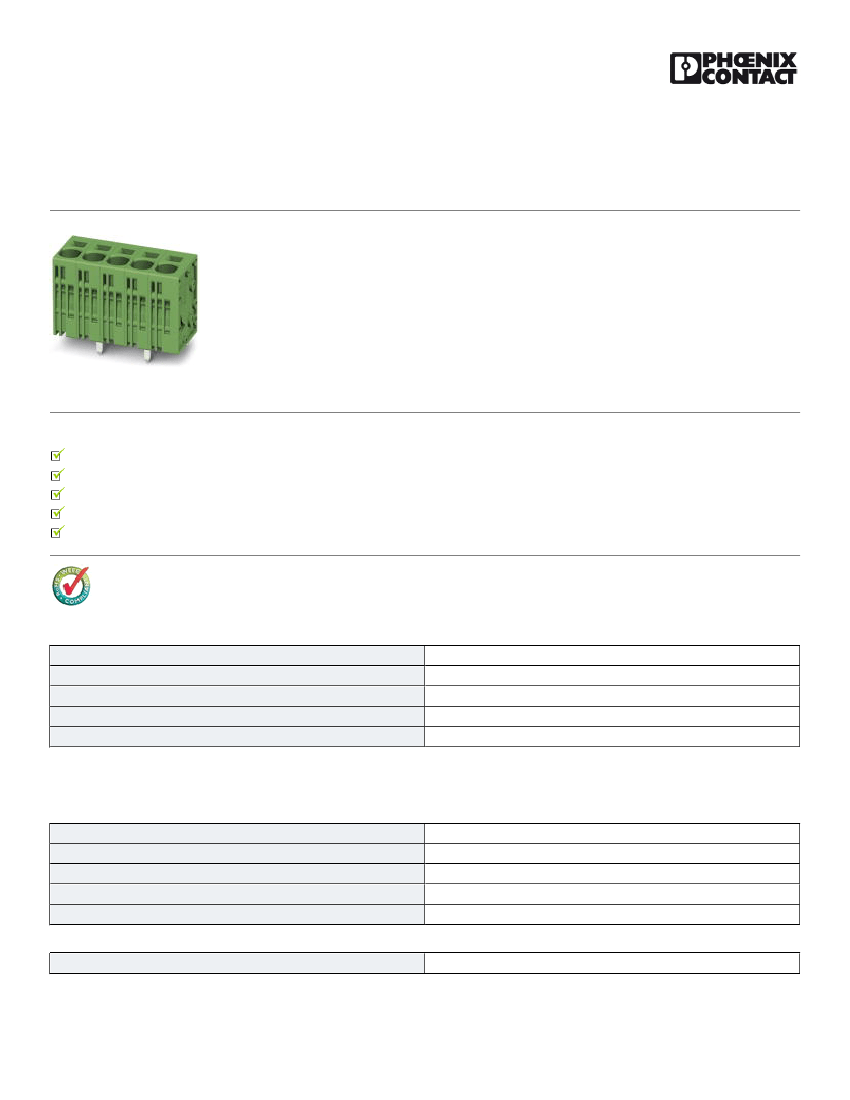

PCB terminal block - SPT 5/12-V-7,5-ZB - 1719419

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://download.phoenixcontact.com)

PCB terminal block, Nominal current: 41 A, Nom. voltage: 1000 V, Pitch: 7.5 mm, Number of positions: 12,

Connection method: Spring-cage connection, Mounting: Soldering, Conductor/PCB connection direction: 90 °,

Color: green

The figure shows a 5-pos. version of

the product

Product Features

Fast connection technology thanks to tool-free direct plug-in principle

Conductor connection direction: vertical (90° -V) to the PCB

Unlimited 600 V UL approval thanks to compact zigzag pinning

Single-position terminal block bases with double pin

SPT 5 Push-in spring-cage PCB terminal blocks for conductor cross sections up to 6 mm², stranded

Key commercial data

Packing unit

Minimum order quantity

Weight per Piece (excluding packing)

Custom tariff number

Country of origin

1 pc

50 pc

41.6 GRM

85369010

Germany

Technical data

Dimensions

Pitch

Dimension a

Pin dimensions

Pin spacing

Hole diameter

7.5 mm

82.5 mm

1,7 x 0,8

14 mm

2.1 mm

General

Range of articles

SPT 5/..-V

03/17/2014 Page 1 / 6
