Thermomagnetic device circuit breaker - TMC 1 M1 100
4,0A - 0914484
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

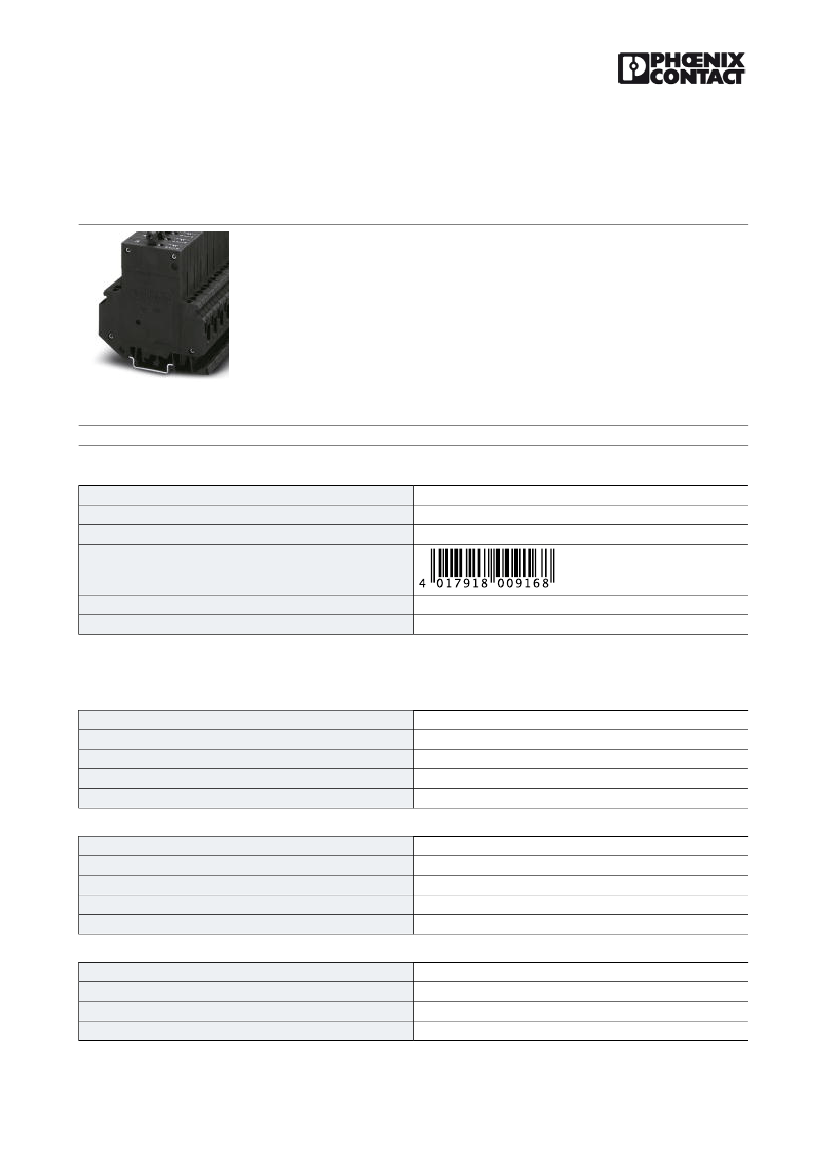

Thermomagnetic circuit breaker, 1-pos., normal blow, 1 N/O contact, with universal foot for mounting
on NS 32 or NS 35
The illustration shows version
TMC 1 F1 100 1A
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85362010
GERMANY
1
6
Page 282 (CL-2002)
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
2
4
black
PA66
V-2
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Height NS 32
12.5 mm
83.5 mm
96 mm
103.5 mm
100.5 mm
Technical data
Fuse type
Pollution degree
Surge voltage category
Insulating material group
Automatic device
2
II
II
11.06.2012 Page 1 / 8
https://www.phoenixcontact.com/us/produkte/0914484
Thermomagnetic device circuit breaker - TMC 1 M1 100
4,0A - 0914484
Technical data
Technical data
Nominal current IN
Nominal voltage UN
Nominal voltage UN
Ambient temperature (operation)
4A
250 V AC
65 V DC
-30 °C ... 60 °C
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded min.
2 conductors with same cross section, stranded max.
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, min.
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, max.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Screw thread
Tightening torque, min
Tightening torque max
0.2 mm²
6 mm²
0.2 mm²
4 mm²
24
10
0.25 mm²
4 mm²
0.25 mm²
2.5 mm²
0.2 mm²
0.75 mm²
0.2 mm²
0.75 mm²
0.25 mm²
1 mm²
0.5 mm²
2.5 mm²
Screw connection
12 mm
A3
M3
0.6 Nm
0.8 Nm
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
27141116
27141116
11.06.2012 Page 2 / 8
https://www.phoenixcontact.com/us/produkte/0914484
Thermomagnetic device circuit breaker - TMC 1 M1 100
4,0A - 0914484
Classifications
eclass
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
27141116
27141116
27141116
etim
ETIM 2.0
ETIM 3.0
ETIM 4.0
EC000899
EC000899
EC000899
unspsc
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211812
39121411
39121411
39121411
39121411
Approvals
Certificates
Certification
CSA / UL Recognized / VDE approval of drawings / GOST
Certification EX
Certification submitted
Approval details
CSA
UL Recognized
VDE approval of drawings
GOST
11.06.2012 Page 3 / 8
https://www.phoenixcontact.com/us/produkte/0914484
Thermomagnetic device circuit breaker - TMC 1 M1 100
4,0A - 0914484
Accessories
Accessories
Assembly

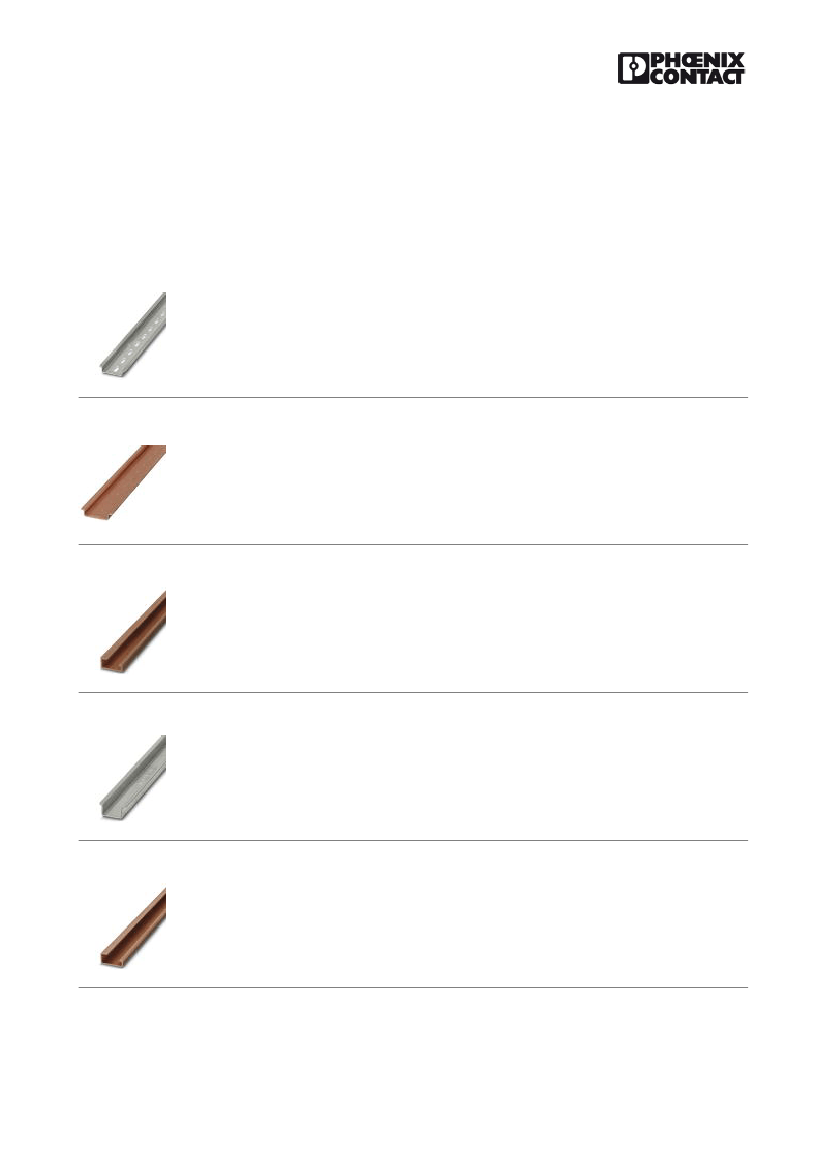

DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35
mm, length: 2000 mm
DIN rail - NS 35/ 7,5 CU UNPERF 2000MM - 0801762
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail - NS 32 CU/120QMM UNPERF 2000MM - 1201280
G-profile DIN rail, deep-drawn, material: Copper, unperforated, height 15 mm, width 32 mm, length 2 m
DIN rail - NS 35/15 UNPERF 2000MM - 1201714
DIN rail, material: Steel, unperforated, height 15 mm, width 35 mm, length: 2 m
DIN rail - NS 32 CU/35QMM UNPERF 2000MM - 1201358
G-profile DIN rail, material: Copper, unperforated, height 15 mm, width 32 mm, length 2 m
11.06.2012 Page 4 / 8
https://www.phoenixcontact.com/us/produkte/0914484
Thermomagnetic device circuit breaker - TMC 1 M1 100
4,0A - 0914484
Accessories

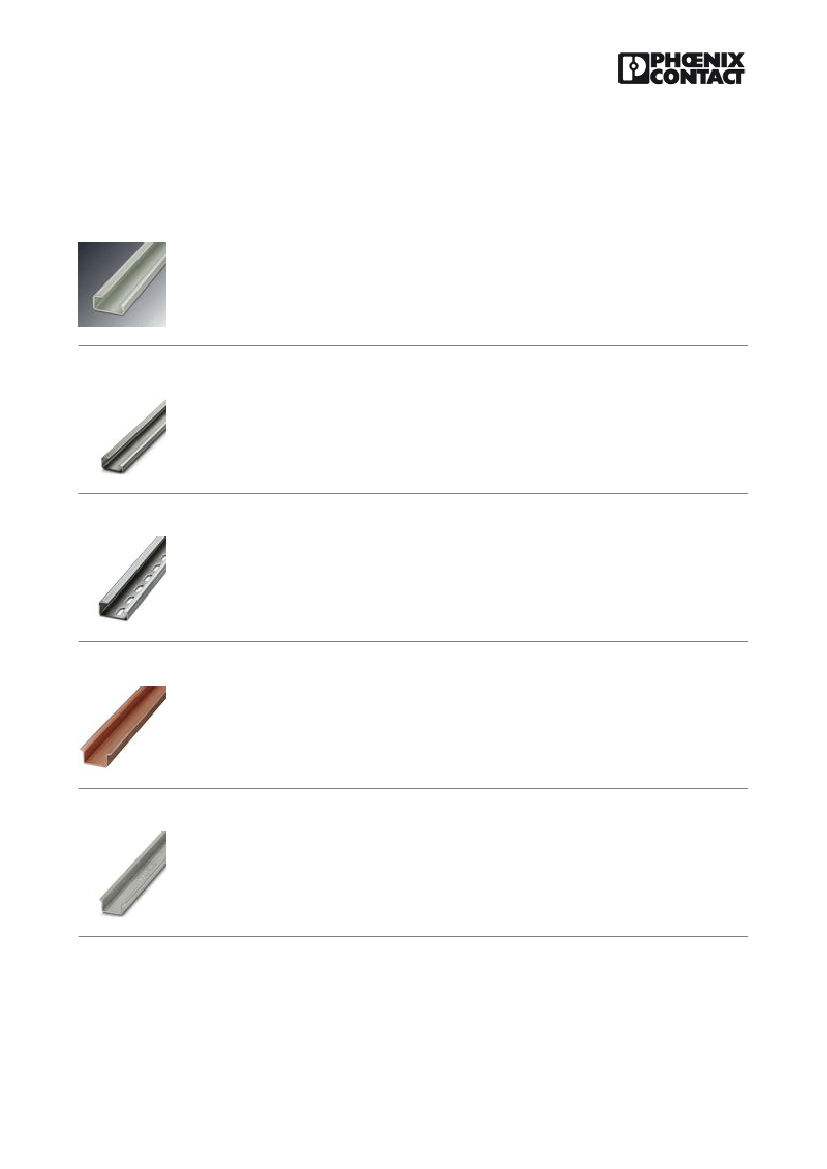

DIN rail - NS 32 AL UNPERF 2000MM - 1201028
G rail 32 mm (NS 32)
DIN rail - NS 32 UNPERF 2000MM - 1201015
G-profile DIN rail, material: Steel, unperforated, height 15 mm, width 32 mm, length 2 m
DIN rail - NS 32 PERF 2000MM - 1201002
G-profile DIN rail, material: Steel, perforated, height 15 mm, width 32 mm, length 2 m
DIN rail - NS 35/15 CU UNPERF 2000MM - 1201895
DIN rail, material: Copper, unperforated, 1.5 mm thick, height 15 mm, width 35 mm, length: 2 m
DIN rail - NS 35/15-2,3 UNPERF 2000MM - 1201798
DIN rail, material: Steel, unperforated, 2.3 mm thick, height 15 mm, width 35 mm, length: 2 m
11.06.2012 Page 5 / 8
