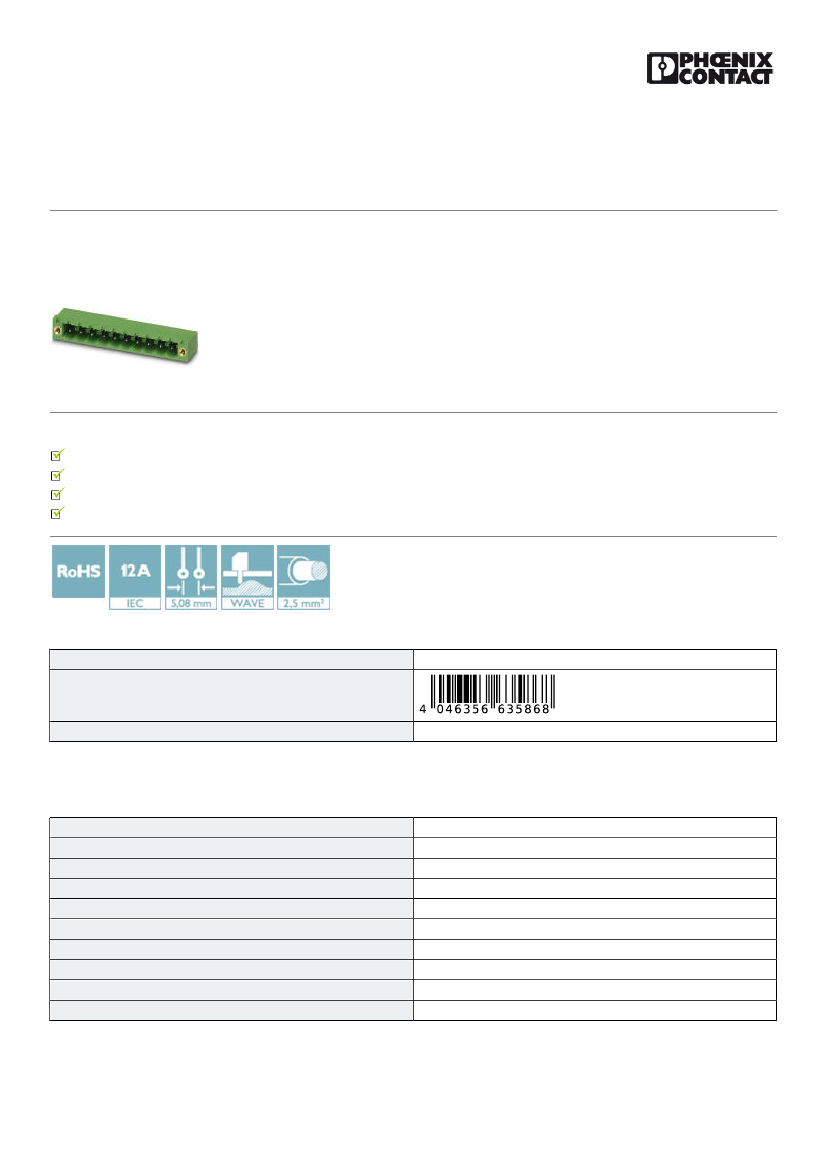

Printed-circuit board connector - MSTB 2,5/ 2-GF-5,08 EX - 1795666
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB headers, nominal current: 12 A, nominal current (Ex): 12 A, nominal voltage (Ex): 176 V, number of
positions: 2, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering
The figure shows a 10-position
version of the product
Your advantages
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Easy PCB replacement thanks to plug-in modules
Well-known mounting principle allows worldwide use
Satisfies the more stringent safety requirements of “Ex e” protection according to IEC 60079-7 for potentially explosive areas
Key Commercial Data
Packing unit
GTIN
GTIN
4046356635868
50 pc
Technical data
Dimensions
Length [ l ]
Width
Pitch
Dimension a
Width [ w ]
Height [ h ]
Height
Length of the solder pin
Pin dimensions
Length
12 mm
20.32 mm
5.08 mm
5.08 mm
20.32 mm
12.1 mm
8.6 mm
3.5 mm
1 x 1 mm
12 mm
General
11/11/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/1795666
Printed-circuit board connector - MSTB 2,5/ 2-GF-5,08 EX - 1795666
Technical data
General
Range of articles
Insulating material group
Rated voltage (III/3)
Connection in acc. with standard
Nominal current I
N
Insulating material
Flammability rating according to UL 94
Color
Number of positions
MSTB 2,5/..-GF-EX
I
250 V
EN-VDE
12 A
PA
V0
green
2
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
EN-VDE
V0
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Drilling diagram
a
5,08
5,08
7,62
Dimensional drawing
22
12
1,4
2
a+15,24
15
2,5
2,4
3,5
2,5
8,6
2
5,08
5,08
a
Approvals
Approvals
Approvals
EAC / cULus Recognized
Ex Approvals
IECEx / ATEX / EAC Ex
11/11/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/1795666
Printed-circuit board connector - MSTB 2,5/ 2-GF-5,08 EX - 1795666
Approvals
Approval details
EAC
D
150 V
15 A
B.01742
cULus Recognized
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-19931011
B
300 V
15 A
