Coupling - PPC 1,5/S/ 2 - 3213386
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Coupling, Connection method: Push-in connection, Number of positions: 2, Cross section: 0.14
mm² - 1.5 mm², AWG 26 - 16, Width: 7 mm, Height: 27 mm, Color: gray

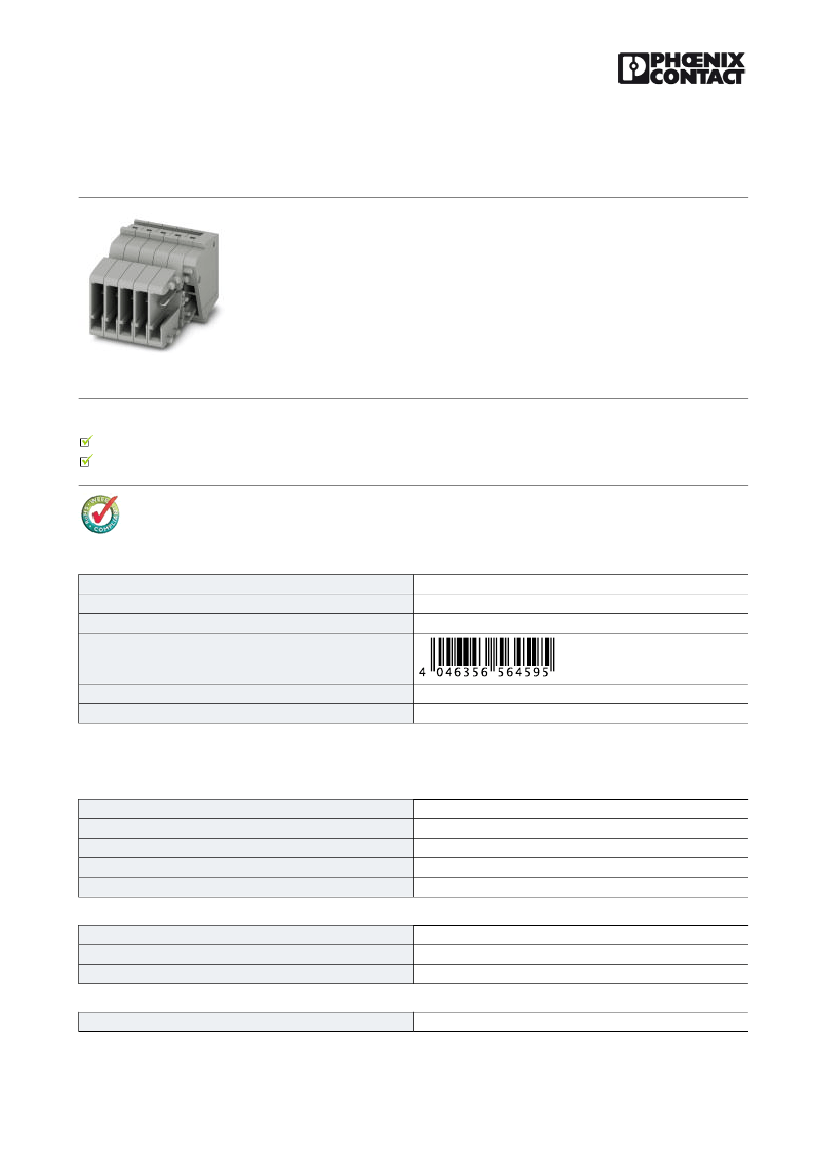

The figure shows the PPC 1,5/
S/6 version
Why buy this product
For secure and space-saving accommodation of plug-in contacts in cable ducts and distributor shafts
The Push-in technology COMBI couplings for self-assembly provide solutions that users can implement themselves
Key commercial data
Packing unit
Minimum order quantity
Catalog page
GTIN
Custom tariff number
Country of origin
85369010
POLAND
0
1
Page 318 (CL1-2011)
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
1
1
gray
PA
V0
Dimensions
Width
Length
Height
7 mm
17.8 mm
27 mm
Technical data
Maximum load current
13.5 A (with 1.5 mm2 conductor cross section)
10.09.2012 Page 1 / 14
https://www.phoenixcontact.com/us/produkte/3213386
Coupling - PPC 1,5/S/ 2 - 3213386
Technical data
Technical data
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current IN
Nominal voltage UN
Open side panel
Number of positions
6 kV
3
III
I
IEC 61984
17.5 A
500 V
ja
2
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
Connection method
Stripping length
Internal cylindrical gage
0.14 mm²
1.5 mm²
0.14 mm²
1.5 mm²
26
16
0.14 mm²
1.5 mm²
0.14 mm²
1 mm²
Push-in connection
8 mm
A1 / B1
Classifications
eclass
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
272607xx
27260701
27260701
27260701
27141151
27141151
etim
ETIM 4.0
EC002021
unspsc
UNSPSC 6.01
UNSPSC 7.0901
30211802
39121402
10.09.2012 Page 2 / 14
https://www.phoenixcontact.com/us/produkte/3213386
Coupling - PPC 1,5/S/ 2 - 3213386
Classifications
unspsc
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
39121402
39121402
39121402
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-14
15 A
300 V
C
26-14
15 A
300 V
D
26-14
5A
600 V
cULus Recognized
Accessories
Accessories
Covers
10.09.2012 Page 3 / 14
https://www.phoenixcontact.com/us/produkte/3213386
Coupling - PPC 1,5/S/ 2 - 3213386

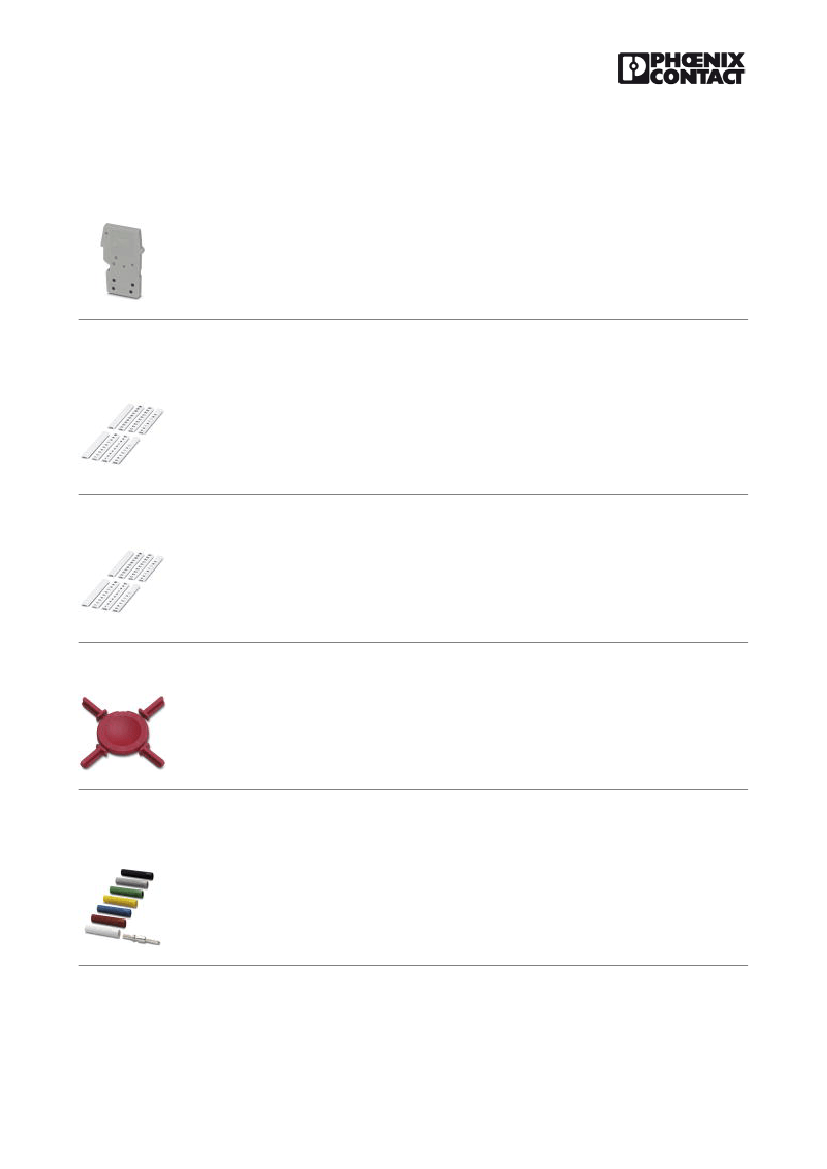

Accessories
End cover - D-PPC 1,5/S - 3213690
End cover, Length: 17.8 mm, Width: 2.2 mm, Color: gray
Marking
Zack Marker strip, flat - ZBF 3,5:UNBEDRUCKT - 0829392
Zack Marker strip, flat, Strip, white, Unlabeled, Can be labeled with: Plotter, Mounting type: Snap into flat
marker groove, For terminal block width: 3.5 mm, Lettering field: 3.5 x 5.2 mm
Zack Marker strip, flat - ZBF 3,5 CUS - 0829394
Zack Marker strip, flat, Can be ordered: Strip, white, Labeled according to customer specifications, Mounting
type: Snap into flat marker groove, For terminal block width: 3.5 mm, Lettering field: 3.5 x 5.2 mm
Keying star - PC - 3040588
Keying star, Length: 3 mm, Width: 3 mm, Height: 6 mm, Color: red
Plug/Adapter
Test plugs - MPS-MT - 0201744
Test plugs
10.09.2012 Page 4 / 14
https://www.phoenixcontact.com/us/produkte/3213386
Coupling - PPC 1,5/S/ 2 - 3213386

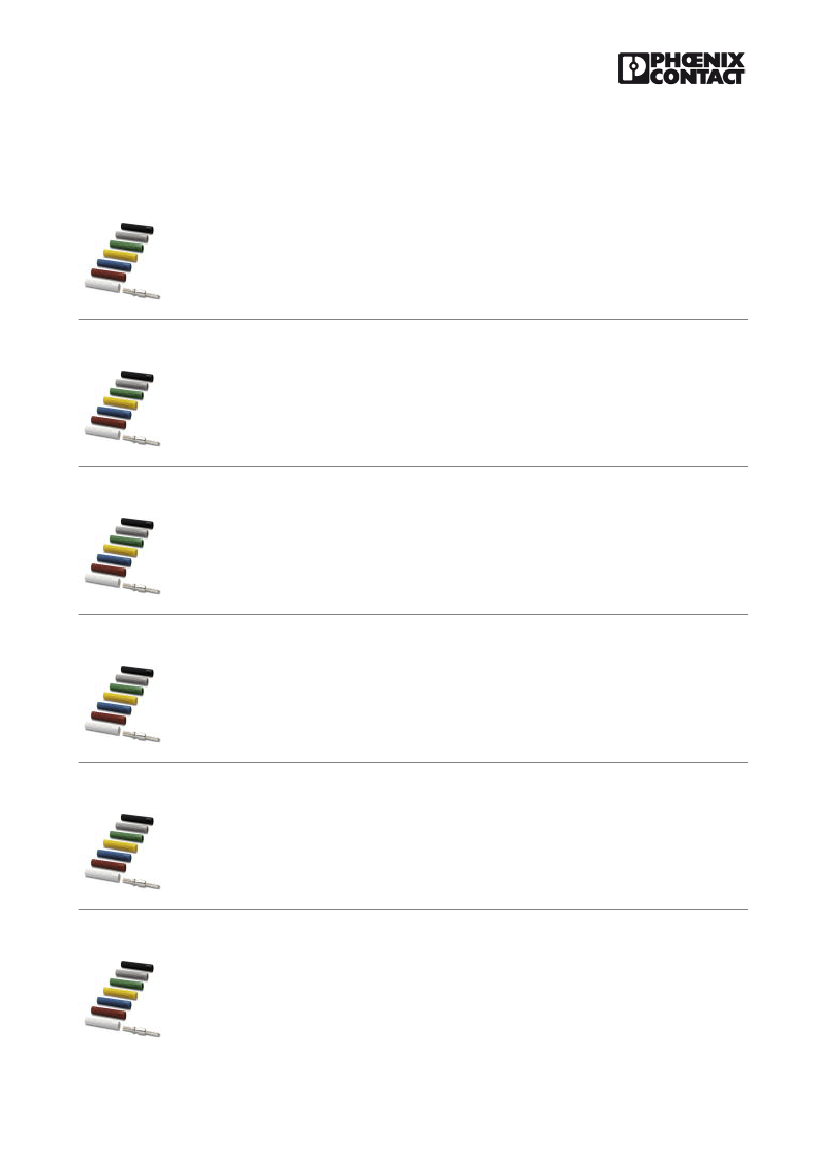

Accessories
Insulating sleeve - MPS-IH RD - 0201676
Insulating sleeve, Color: red
Insulating sleeve - MPS-IH BK - 0201731
Insulating sleeve, Color: black
Insulating sleeve - MPS-IH BU - 0201689
Insulating sleeve, Color: blue
Insulating sleeve - MPS-IH GN - 0201702
Insulating sleeve, Color: green
Insulating sleeve - MPS-IH GY - 0201728
Insulating sleeve, Color: gray
Insulating sleeve - MPS-IH WH - 0201663
Insulating sleeve, Color: white
