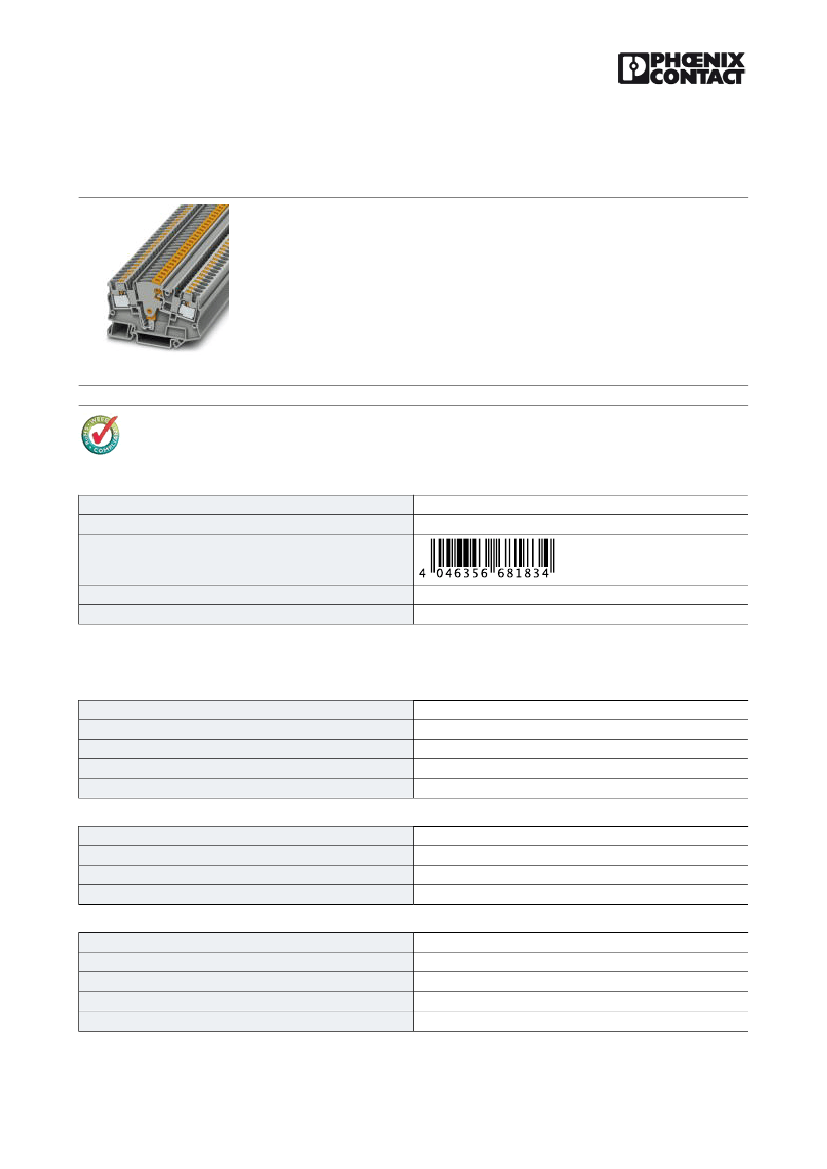

Test disconnect terminal block - PTME 4 WH - 3212140
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Test disconnect terminal block, Connection method: Push-in connection, Cross section: 0.2 mm² - 6
mm², AWG: 24 - 10, Width: 6.2 mm, Color: white, Mounting type: NS 35/7.5, NS 35/15
Image shows the version in gray
Key commercial data
Packing unit
Minimum order quantity
GTIN
Custom tariff number
Country of origin
85369010
POLAND
0
50
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
1
2
white
PA
V0
Dimensions
Width
Length
Height NS 35/7,5
Height NS 35/15
6.2 mm
70.5 mm
49.5 mm
57 mm
Technical data
Rated surge voltage
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
6 kV
III
I
IEC 60947-7-1
24 A
17.01.2013 Page 1 / 19
https://www.phoenixcontact.com/us/produkte/3212140
Test disconnect terminal block - PTME 4 WH - 3212140
Technical data
Technical data
Nominal voltage U
N
Open side panel
500 V
ja
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic
sleeve min.
Conductor cross section stranded, with ferrule without plastic
sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve
min.
Conductor cross section stranded, with ferrule with plastic sleeve
max.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, min.
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
0.2 mm²
6 mm²
24
10
0.2 mm²
4 mm²
24
12
0.25 mm²
4 mm²
0.25 mm²
4 mm²
0.5 mm²
1 mm²
Push-in connection
12 mm
A4
Classifications
ETIM
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000313
EC000902
EC000902
UNSPSC
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
UNSPSC 6.01
UNSPSC 7.0901
39121410
39121410
39121410
30211811
39121410
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
27141120
27141120
17.01.2013 Page 2 / 19
https://www.phoenixcontact.com/us/produkte/3212140
Test disconnect terminal block - PTME 4 WH - 3212140
Classifications
eCl@ss
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
27141120
27141120
27141120
27141120
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-10
26 A
300 V
C
24-10
26 A
300 V
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
24-10
26 A
300 V
C
24-10
26 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
B
24-10
26 A
C
24-10
26 A
17.01.2013 Page 3 / 19
https://www.phoenixcontact.com/us/produkte/3212140
Test disconnect terminal block - PTME 4 WH - 3212140
Approvals
Nominal voltage UN
B
300 V
C
300 V
cULus Recognized
Accessories
Accessories
Assembly

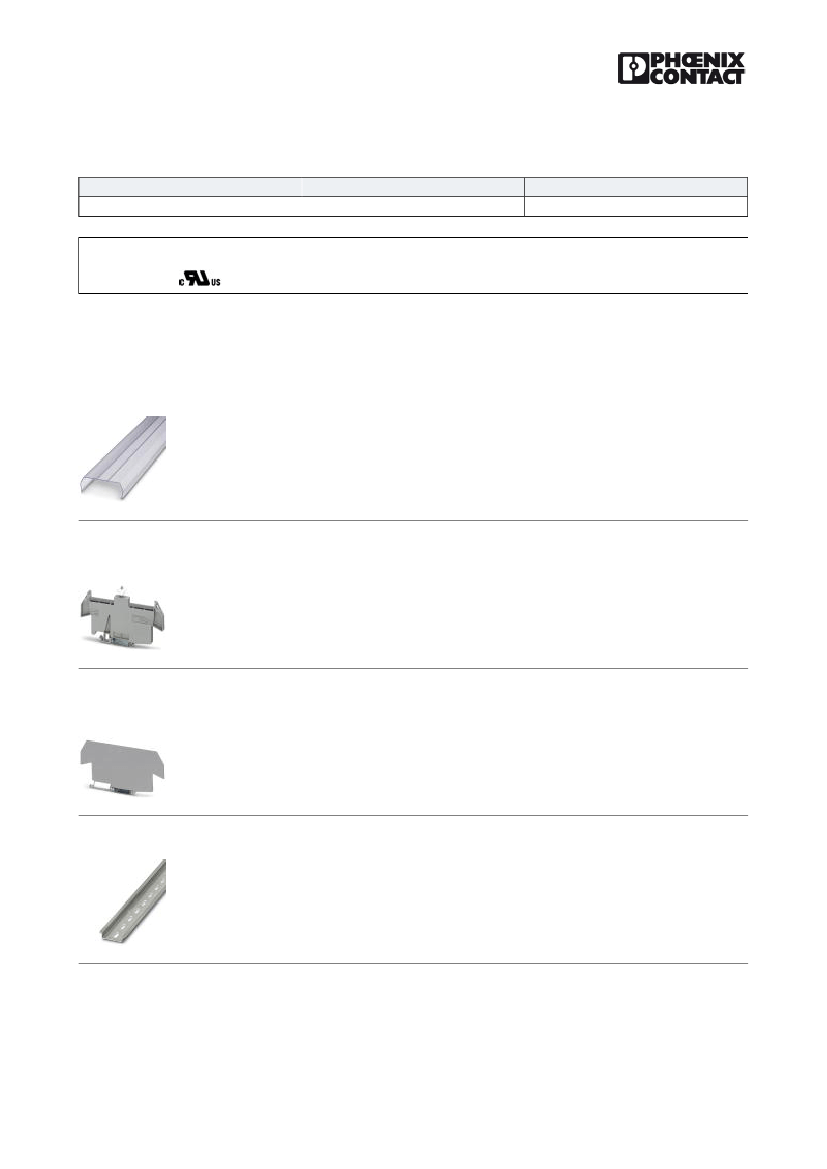

Cover profile - AP-ME METER - 3034361
Cover profile, for covering terminal strips, snapped onto APT-ME cover profile carrier or APH-ME end
bracket. A cover profile carrier should be positioned at the ends and at intervals of around 40 cm. Length
supplied: 1 m
Cover profile - APH-ME - 3034374
Cover profile carrier for mounting on NS 35/7.5 DIN rail for attaching the cover profile AP-ME
Cover profile - APT-ME - 3034358
Cover profile carrier for mounting on NS 35/7.5 DIN rail for attaching the cover profile AP-ME
DIN rail perforated - NS 35/ 7,5 PERF 2000MM - 0801733
DIN rail, material: steel galvanized and passivated with a thick layer, perforated, height 7.5 mm, width 35
mm, length: 2000 mm
DIN rail - NS 35/ 7,5 UNPERF 2000MM - 0801681
DIN rail, material: Steel, unperforated, height 7.5 mm, width 35 mm, length: 2 m
17.01.2013 Page 4 / 19
https://www.phoenixcontact.com/us/produkte/3212140
Test disconnect terminal block - PTME 4 WH - 3212140
Accessories

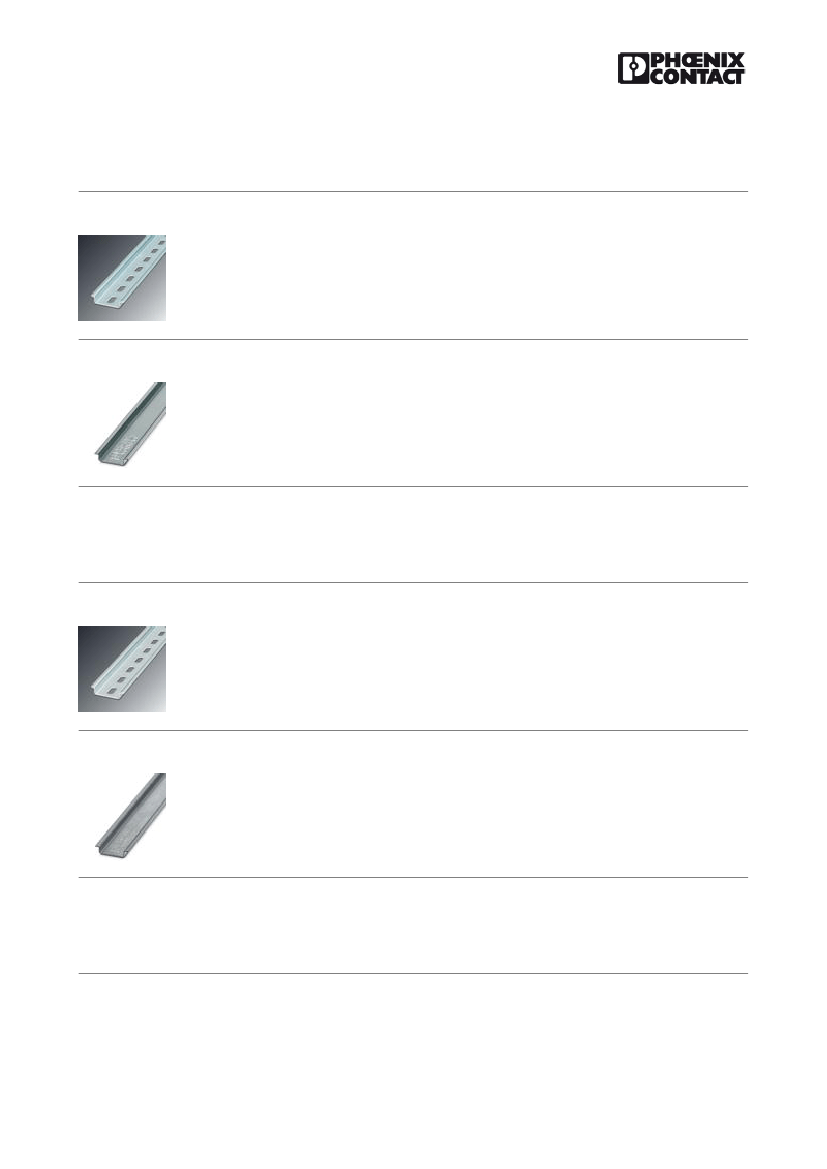

DIN rail - NS 35/ 7,5 WH PERF 2000MM - 1204119
DIN rail 35 mm (NS 35)
DIN rail - NS 35/ 7,5 WH UNPERF 2000MM - 1204122
DIN rail 35 mm (NS 35)
DIN rail - NS 35/ 7,5 AL UNPERF 2000MM - 0801704
DIN rail, material: Aluminum, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail - NS 35/ 7,5 ZN PERF 2000MM - 1206421
DIN rail, material: Galvanized, perforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail - NS 35/ 7,5 ZN UNPERF 2000MM - 1206434
DIN rail, material: Galvanized, unperforated, height 7.5 mm, width 35 mm, length: 2 m
DIN rail - NS 35/ 7,5 CU UNPERF 2000MM - 0801762
DIN rail, material: Copper, unperforated, height 7.5 mm, width 35 mm, length: 2 m
17.01.2013 Page 5 / 19
