Coupling - SC 2,5-RZ/ 9 - 3041590
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Coupling, Connection method: Spring-cage connection, Number of positions: 9, Cross section: 0.08 mm² - 4 mm²,
AWG: 28 - 12, Width: 46.8 mm, Height: 21.8 mm, Color: gray, Mounting type: On mounting plate

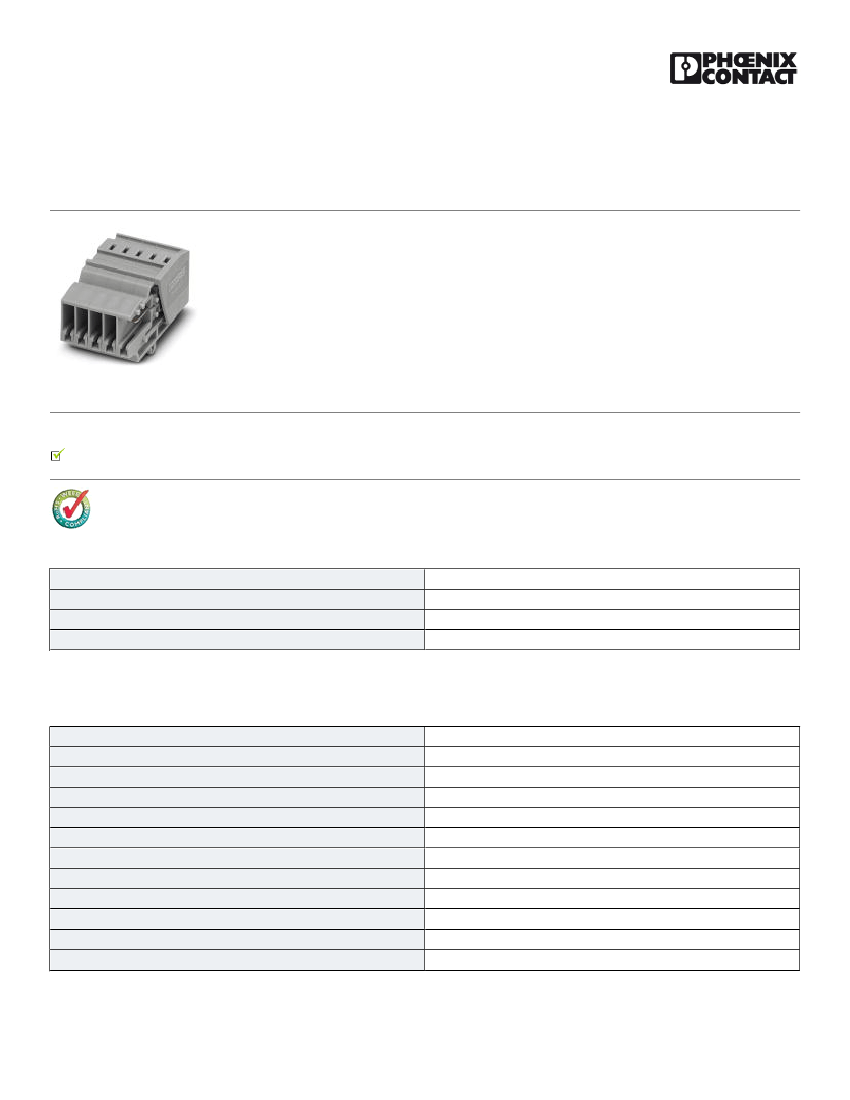

The illustration shows a 5-position
version
Product Features
COMBI coupling for direct mounting
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
27.82 GRM
85366990
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
1
1
gray
PA
V0
24 A (with 2.5 mm² conductor cross section)
6 kV
3
III
I
IEC 61984
24 A
12.11.2013 Page 1 / 27
https://www.phoenixcontact.com/us/products/3041590
Coupling - SC 2,5-RZ/ 9 - 3041590
Technical data
General
Nominal voltage U
N
Open side panel
Number of positions
500 V
ja
9
Dimensions
Width
Length
Height
46.8 mm
37.2 mm
21.8 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
0.08 mm²
4 mm²
28
12
0.08 mm²
2.5 mm²
28
14
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Spring-cage connection
10 mm
A3
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
272607xx
27260701
27260701
27260701
27141120
27141120
27141120
12.11.2013 Page 2 / 27
https://www.phoenixcontact.com/us/products/3041590
Coupling - SC 2,5-RZ/ 9 - 3041590
Classifications
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / LR / GL / BV / DNV / RS / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
20 A
300 V
C
26-12
20 A
300 V
12.11.2013 Page 3 / 27
https://www.phoenixcontact.com/us/products/3041590
Coupling - SC 2,5-RZ/ 9 - 3041590
Approvals
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
20 A
300 V
C
26-12
20 A
300 V
GOST
LR
GL
BV
DNV
RS
GOST
cULus Recognized
Accessories
Accessories
End cover
12.11.2013 Page 4 / 27
https://www.phoenixcontact.com/us/products/3041590
Coupling - SC 2,5-RZ/ 9 - 3041590
Accessories

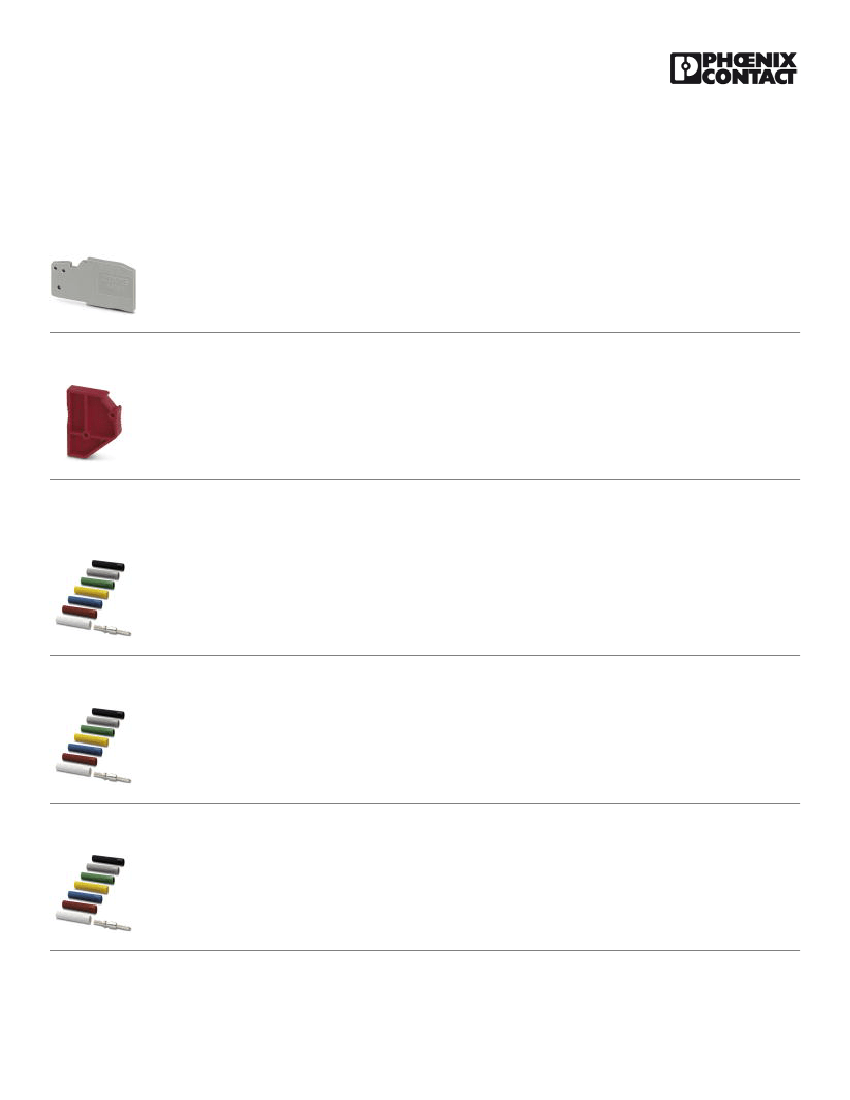

End cover - D-SC 2,5 - 3042243
End cover, Length: 43.5 mm, Width: 2.2 mm, Color: gray
Spacer plate - DP PS-5 - 3036725
Spacer plate, Color: red
Insulating sleeve
Insulating sleeve - MPS-IH WH - 0201663
Insulating sleeve, Color: white
Insulating sleeve - MPS-IH RD - 0201676
Insulating sleeve, Color: red
Insulating sleeve - MPS-IH BU - 0201689
Insulating sleeve, Color: blue
12.11.2013 Page 5 / 27
