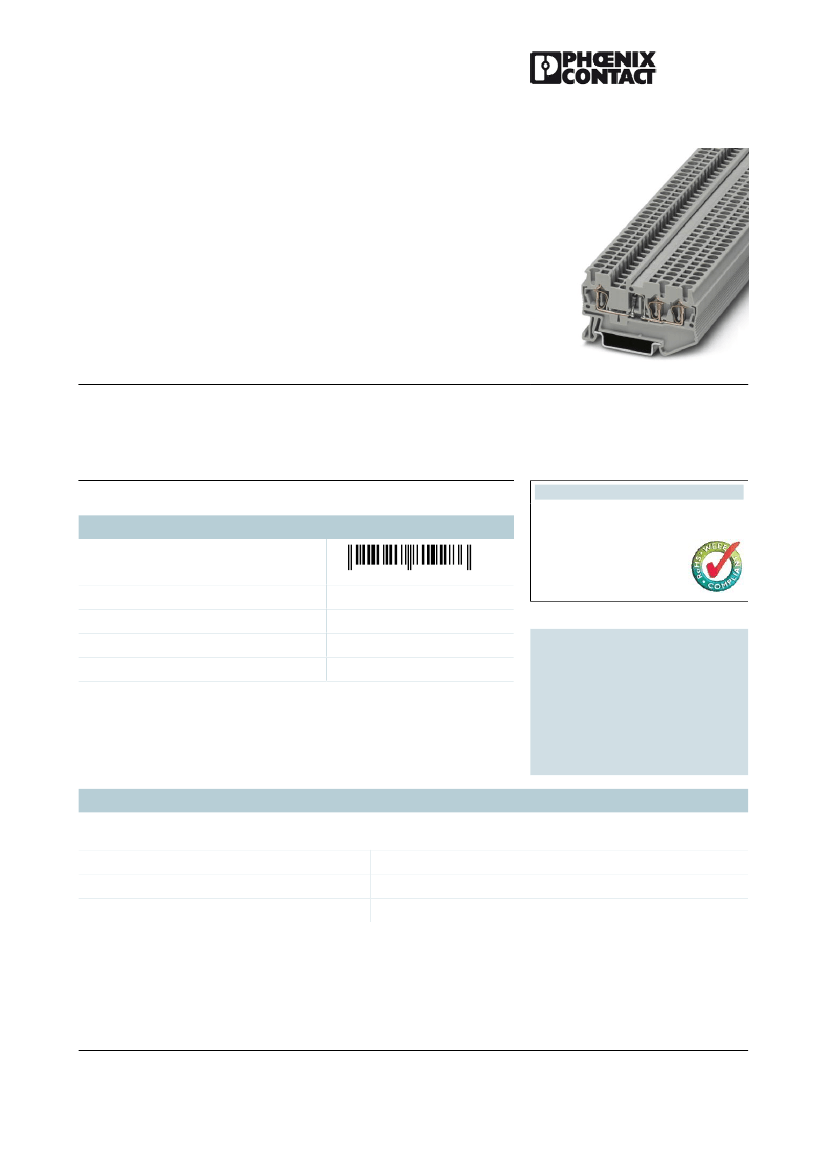

Extract from the online
catalog
ST 2,5-TWIN-DIO/L-R
Order No.: 3036246
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3036246
Component terminal block, Connection type: Spring-cage connection,
Cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, Nominal current: 0.5
A, Nominal voltage: 800 V, Length: 60.5 mm, Width: 5.2 mm,
Color: gray, Assembly: NS 35/7.5, NS 35/15
Product notes
Commercial data
GTIN (EAN)
4
017918
819286
WEEE/RoHS-compliant since:
11/01/2006
sales group
Pack
Customs tariff
Catalog page information
A642
50 pcs.
85369010
Page 127 (CL-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
General
Number of levels
Number of connections
Color
1
3
gray
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Feb 10, 2011
ST 2,5-TWIN-DIO/L-R
Order No.: 3036246
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3036246
Insulating material
Inflammability class acc. to UL 94
Dimensions
Width
Length
Height NS 35/7.5
Height NS 35/15
Technical data
Maximum load current
Rated surge voltage
Pollution degree
Surge voltage category
Insulating material group
Nominal current I
N
Nominal voltage U
N
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Type of connection
Stripping length
Internal cylindrical gage
PA
V0
5.2 mm
60.5 mm
36.5 mm
44 mm
(the maximum current is determined by the diode)
4 kV
3
III
I
0.5 A (the maximum current is determined by the diode)
800 V
0.08 mm²
4 mm²
0.08 mm²
2.5 mm²
28
12
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
0.5 mm²
Spring-cage connection
10 mm
A3
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Feb 10, 2011
ST 2,5-TWIN-DIO/L-R
Order No.: 3036246
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3036246
Certificates / Approvals
Certification
CSA, CUL, GOST, UL
Accessories
Item
Assembly
3030789
3030488
3036602
Bridges
3030161
3030174
3030187
3030190
3030213
3030226
3038930
Marking
3030941
Plug/Adapter
3002843
3002856
3002869
3030925
3030983
ISH 2,5/0,2
ISH 2,5/0,5
ISH 2,5/1,0
PAI-4
PS-5
Insulation stop sleeve, Color: white
Insulation stop sleeve, Color: gray
Insulation stop sleeve, Color: black
Test adapter, Color: gray
Test adapter, Color: red
WST 2,5
Warning cover, 5-pos., for terminal width: 5.2 mm
FBS 2-5
FBS 3-5
FBS 4-5
FBS 5-5
FBS 10-5
FBS 20-5
FBS 50-5
Plug-in bridge, Number of positions: 2, Color: red
Plug-in bridge, Number of positions: 3, Color: red
Plug-in bridge, Number of positions: 4, Color: red
Plug-in bridge, Number of positions: 5, Color: red
Plug-in bridge, Number of positions: 10, Color: red
Plug-in bridge, Number of positions: 20, Color: red
Plug-in bridge, Number of positions: 50, Color: red
ATP-ST-TWIN
D-ST 2,5-TWIN
DS-ST 2,5
Partition plate, Length: 76.6 mm, Width: 2 mm, Height: 45 mm,
Color: gray
End cover, Length: 60.5 mm, Width: 2.2 mm, Height: 29 mm,
Color: gray
Cover segment, Length: 72 mm, Height: 36.5 mm, Color: gray
Designation
Description
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Feb 10, 2011
ST 2,5-TWIN-DIO/L-R
Order No.: 3036246
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3036246
Tools
1204517
SZF 1-0,6X3,5
Actuation tool, for ST terminal blocks, also suitable for use as a
bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip,
with non-slip grip
Diagrams/Drawings
Circuit diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
Feb 10, 2011
ST 2,5-TWIN-DIO/L-R
Order No.: 3036246
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=3036246
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2011 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 5 / 5
Feb 10, 2011
