Coupling - SC 2,5/14 - 3041435
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

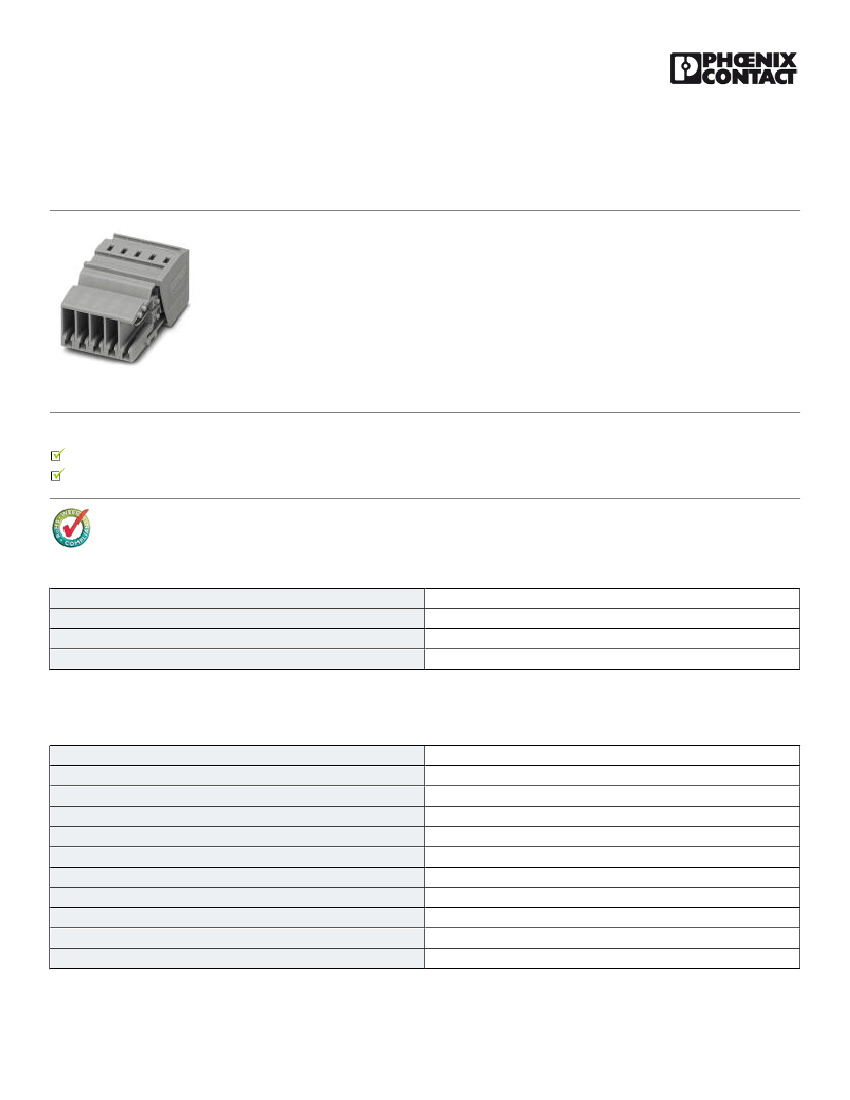

Coupling, Connection method: Plug connection, Number of positions: 14, Cross section: 0.08 mm² - 4 mm²,
AWG: 28 - 12, Width: 72.8 mm, Height: 18.8 mm, Color: gray
The illustration shows a 6-position
version
Product Features
Standard strain relief can be used
Tested for railway applications
Key commercial data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
11
39.46 GRM
85366990
Poland
Technical data
General
Number of levels
Number of connections
Color
Insulating material
Inflammability class according to UL 94
Area of application
1
1
gray
PA
V0
Railway industry
Mechanical engineering
Plant engineering
Maximum load current
Rated surge voltage
Pollution degree
24 A (with 2.5 mm² conductor cross section)
6 kV
3
12.11.2013 Page 1 / 30
https://www.phoenixcontact.com/us/products/3041435
Coupling - SC 2,5/14 - 3041435
Technical data
General
Surge voltage category
Insulating material group
Connection in acc. with standard
Nominal current I
N
Nominal voltage U
N
Open side panel
Number of positions
III
I
IEC 61984
24 A
500 V
ja
14
Dimensions
Width
Length
Height
72.8 mm
37.2 mm
18.8 mm
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
Conductor cross section stranded min.
Conductor cross section stranded max.
Min. AWG conductor cross section, stranded
Max. AWG conductor cross section, stranded
Conductor cross section stranded, with ferrule without plastic sleeve min.
Conductor cross section stranded, with ferrule without plastic sleeve max.
Conductor cross section stranded, with ferrule with plastic sleeve min.
Conductor cross section stranded, with ferrule with plastic sleeve max.
0.08 mm²
4 mm²
28
12
0.08 mm²
2.5 mm²
28
14
0.14 mm²
2.5 mm²
0.14 mm²
2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic
0.5 mm²
sleeve, max.
Connection method
Stripping length
Internal cylindrical gage
Plug connection
10 mm
A3
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
272607xx
27260701
27260701
12.11.2013 Page 2 / 30
https://www.phoenixcontact.com/us/products/3041435
Coupling - SC 2,5/14 - 3041435
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
27260701
27141120
27141120
27141120
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC000897
EC000897
EC000897
EC000897
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
30211802
39121402
39121402
39121402
39121402
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / GOST / LR / GL / BV / DNV / RS / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
mm²/AWG/kcmil
B
26-12
C
26-12
12.11.2013 Page 3 / 30
https://www.phoenixcontact.com/us/products/3041435
Coupling - SC 2,5/14 - 3041435
Approvals
Nominal current IN
Nominal voltage UN
B
20 A
300 V
C
20 A
300 V
cUL Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
B
26-12
20 A
300 V
C
26-12
20 A
300 V
GOST
LR
GL
BV
DNV
RS
GOST
cULus Recognized
Accessories
Accessories
End cover
12.11.2013 Page 4 / 30
https://www.phoenixcontact.com/us/products/3041435
Coupling - SC 2,5/14 - 3041435
Accessories

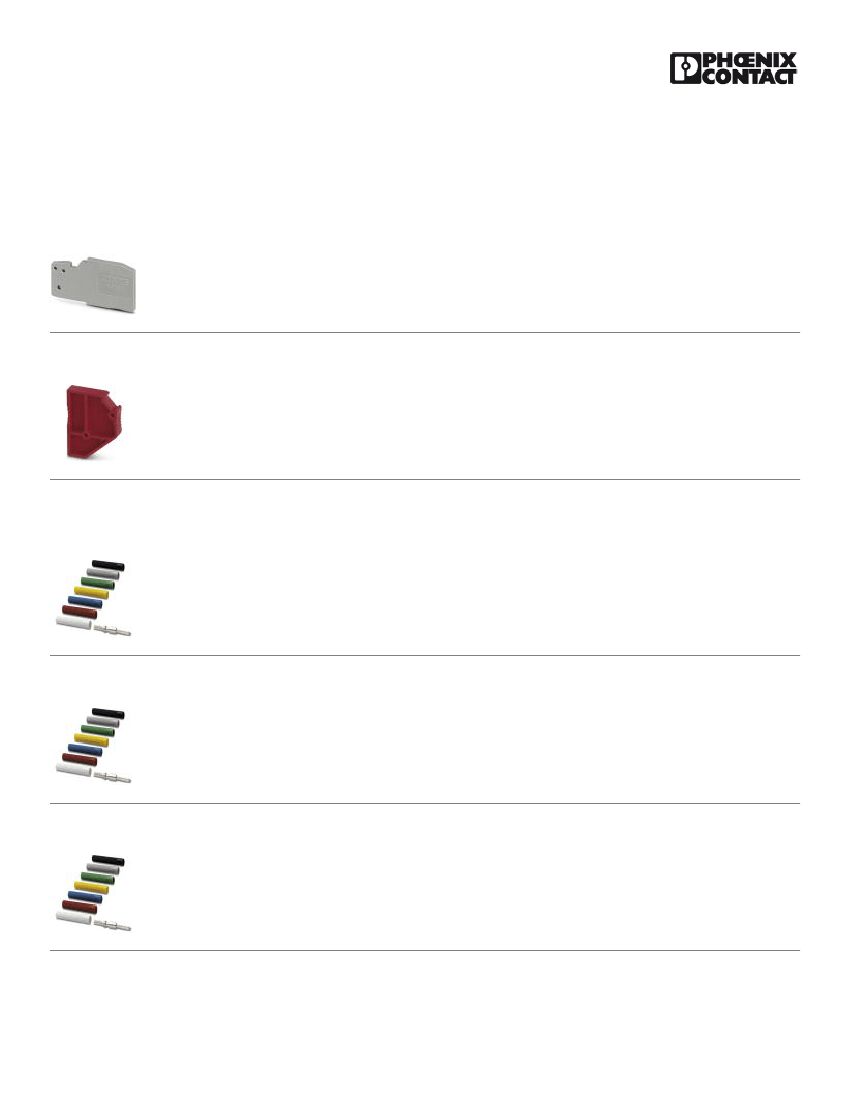

End cover - D-SC 2,5 - 3042243
End cover, Length: 43.5 mm, Width: 2.2 mm, Color: gray
Spacer plate - DP PS-5 - 3036725
Spacer plate, Color: red
Insulating sleeve
Insulating sleeve - MPS-IH WH - 0201663
Insulating sleeve, Color: white
Insulating sleeve - MPS-IH RD - 0201676
Insulating sleeve, Color: red
Insulating sleeve - MPS-IH BU - 0201689
Insulating sleeve, Color: blue
12.11.2013 Page 5 / 30
